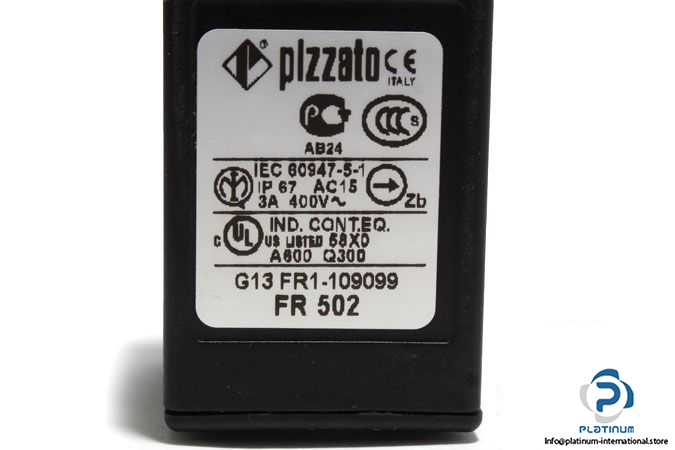

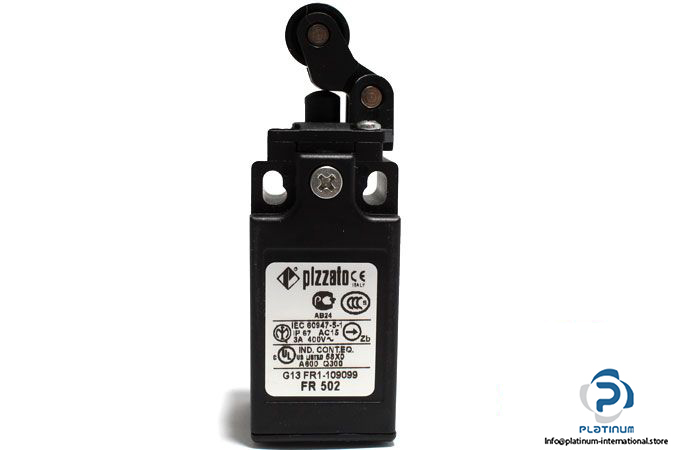

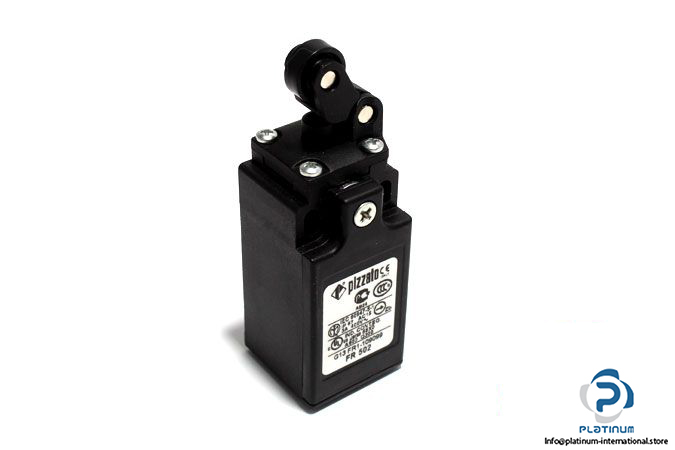

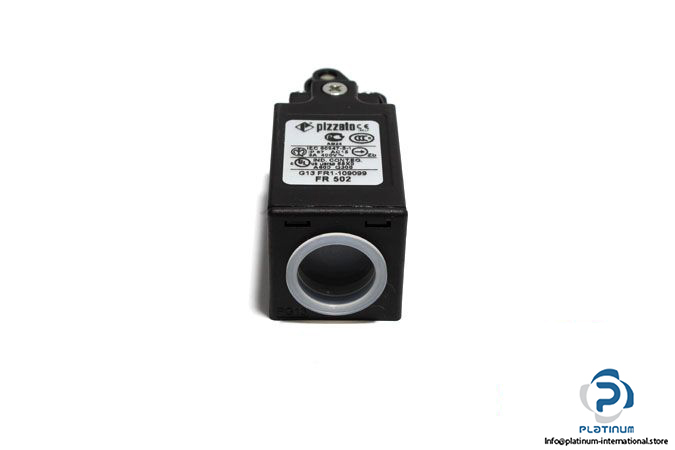

Pizzato FR 502 Limit Switch
Manufacturer: pizzato
Type: Limit Switch
Model: FR 502
Output Configuration: 1 Normally open + 1 Normally closed
Contact Operation: Snap action
Actuator Type: Angled lever with roller
Switching Voltage max.: 400 V AC, at 50 Hz
Contact Current max.: 3 A
Connection: Pg13.5 Cable entry
Protection Class: IP67
Ambient Operating Temperature: -25 … 80°C
Dimensions: 52 x 31 x 31 mm
Weight: 75 g
