Pizzato FR 993-D1 Safety Switch
New
In stock1 unitReady to ship
Safety Switch
PIZZATO FR series safety switch with snap-action NC contacts, IP67 protection, and robust technopolymer housing for industrial safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

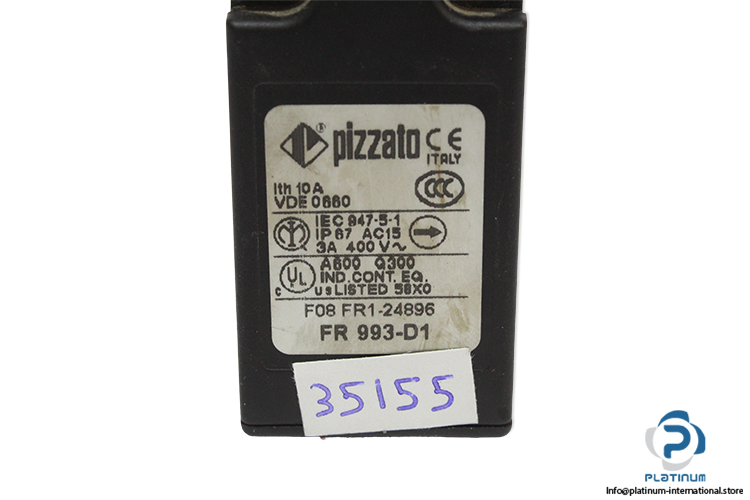

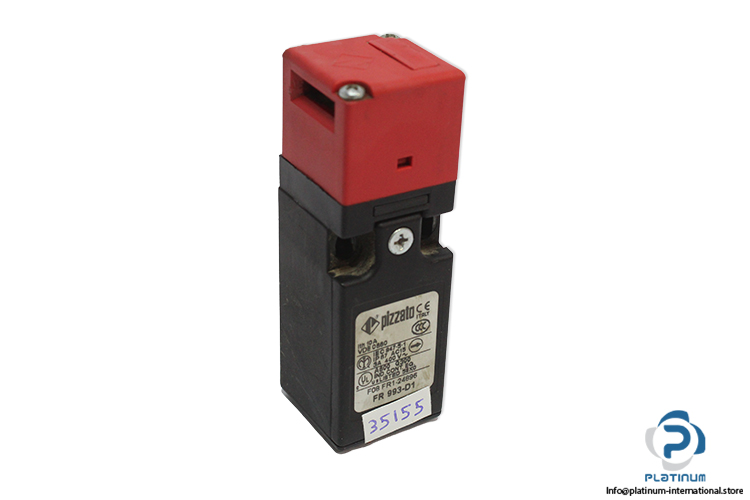

PIZZATO FR993-D1 Safety Switch
The PIZZATO FR993D1 safety switch from the FR series is designed to ensure reliable position monitoring and safety control in industrial machinery. Featuring snap-action normally closed contacts and a robust technopolymer housing, it provides dependable operation in harsh industrial environments.
Manufacturer: :contentReference[oaicite:0]{index=0}
Type: Safety Switch
Model: FR 993-D1
Alternative Model: F08 FR1-24896
| Series | FR |
| Rated Voltage | 400 V AC |
| Rated Current | 3 A |
| Rated Thermal Current (Ith) | 10 A |
| Frequency | 50 / 60 Hz |
| Contact Configuration | 2 Normally Closed (NC), Snap Action (B5) |
| Housing Material | Technopolymer |
| Protection Class | IP67 |
| Dimensions | 90 × 30.8 × 30.8 mm |
