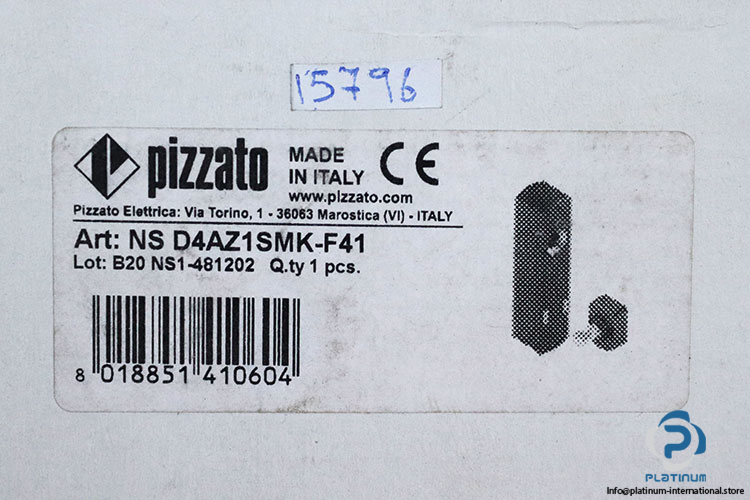

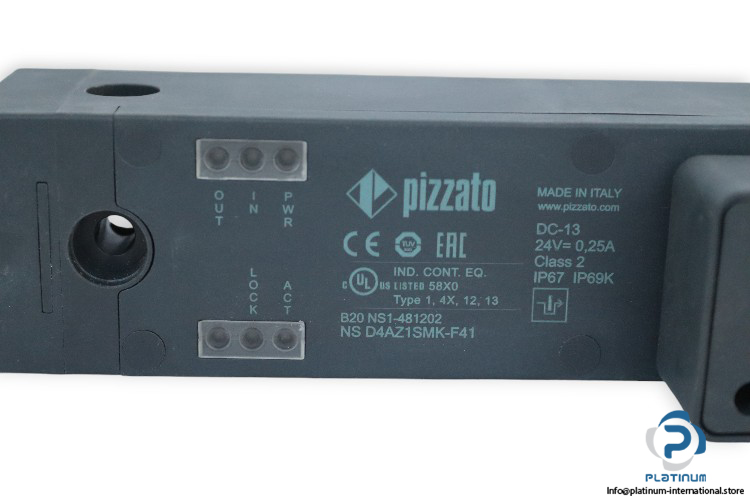

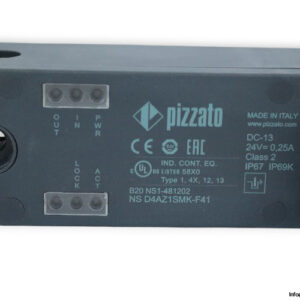

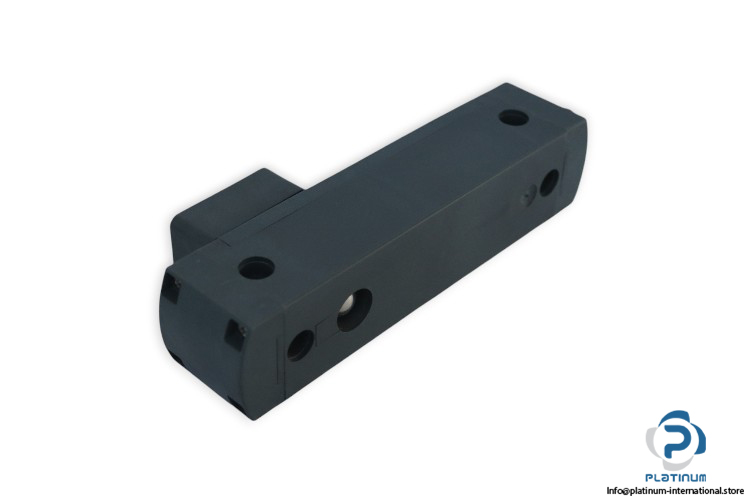

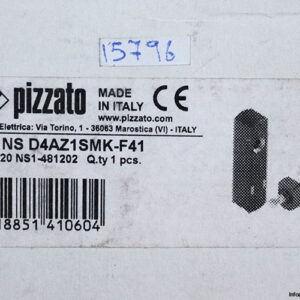

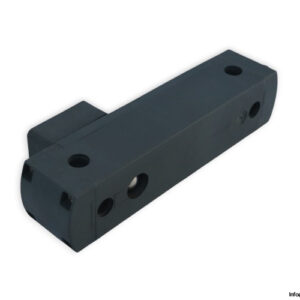

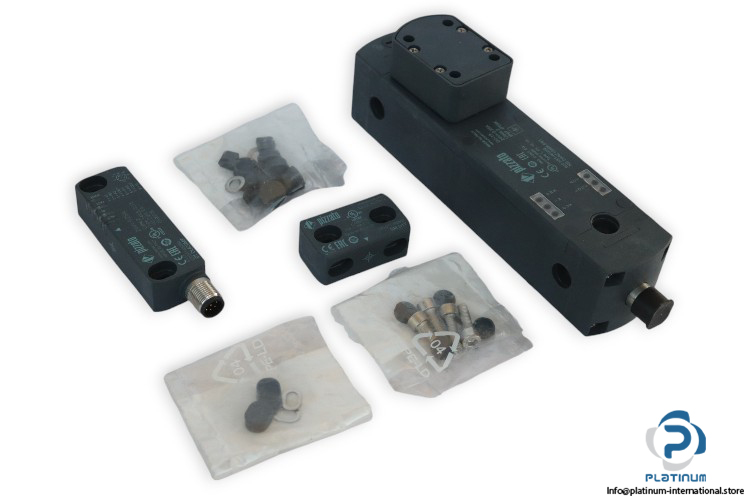

Pizzato NS D4AZ1SMK-F41 Safety Locking Switch

Manufacturer: PIZZATO
Type: Safety Locking Switch
Model: NSD4AZ1SMKF41

Series: NS
Supply Voltage: 24 V DC
Rated Current: 0.25 A
Inputs and Outputs:
2 Safety Inputs IS1-IS2
2 Safety Outputs OS1-OS2
1 Signaling Output O3: Actuator Inserted
1 Signaling Output O4: Actuator Locked
2 Solenoid Activation Inputs IE1-IE2
1 Programming / Reset Input I3
Actuator: High Level Coded Actuator VN NS‘F41 the Switch Recognizes One Single Type F41 Actuator
Operating Principle: Locked Actuator With De Energized Solenoid, Mode 1
Auxiliary Release at Front and Back: Release by Means of Screwdriver at Front

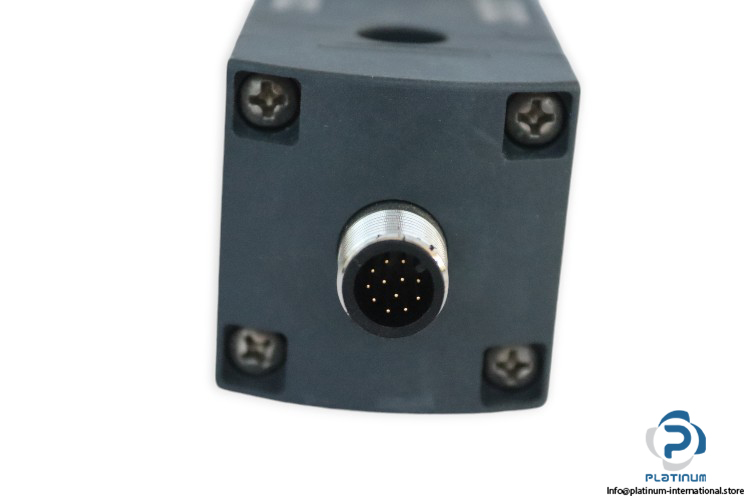

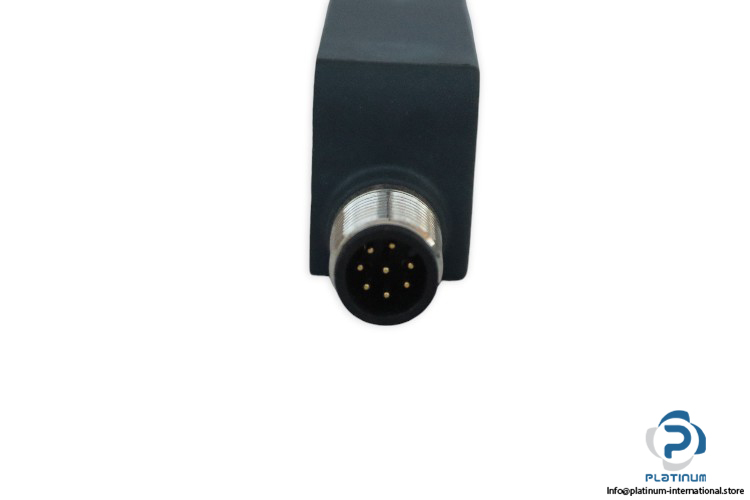

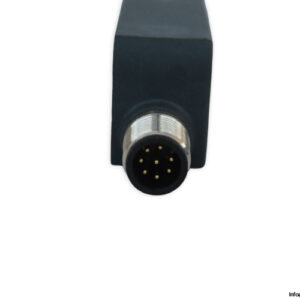

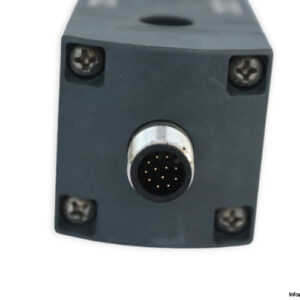

Electrical Connection: M12 Connector, 12-Pin
Housing: Techno Polymer Housing
Protection Class: IP67

Attachment:

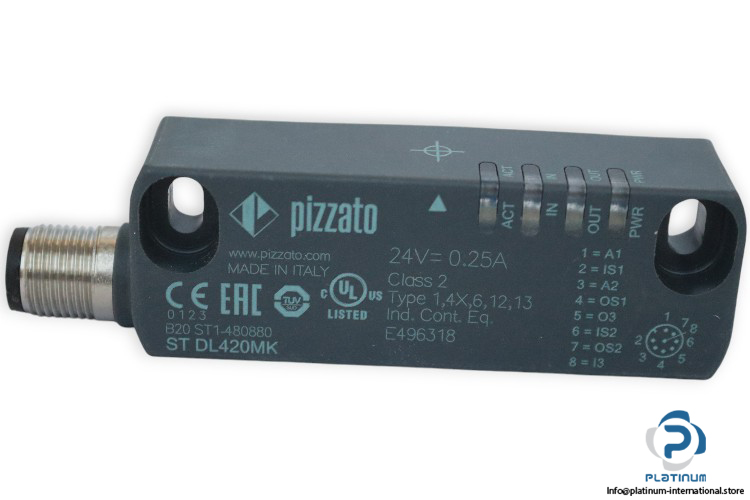

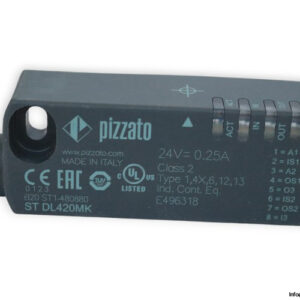

PIZZATO ST DL420MK SAFETY SENSOR
Manufacturer: PIZZATO
Type: Safety Sensor
Model: STDL420MK

Attachment:

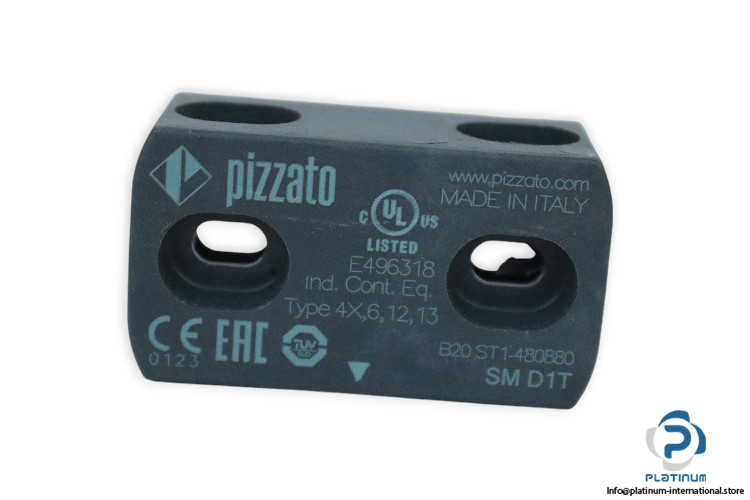

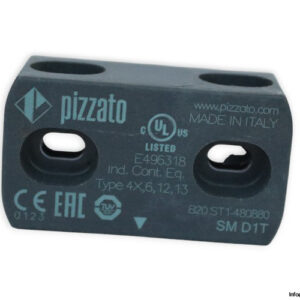

PIZZATO SM D1T HIGH LEVEL CODED ACTUATOR
Manufacturer: PIZZATO
Type: High Level Coded Actuator
Model: SMD1T
