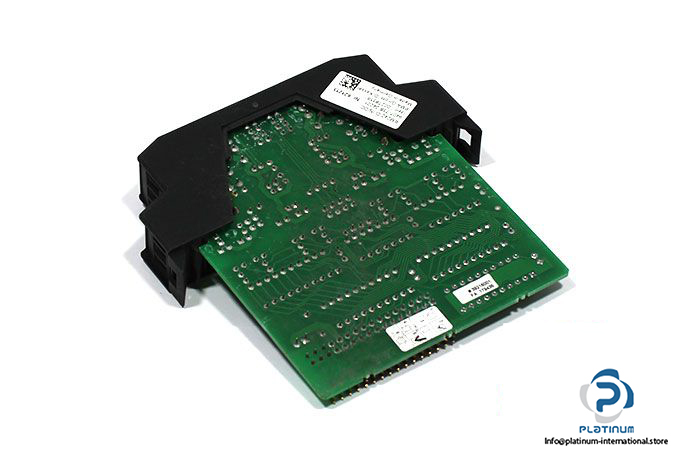

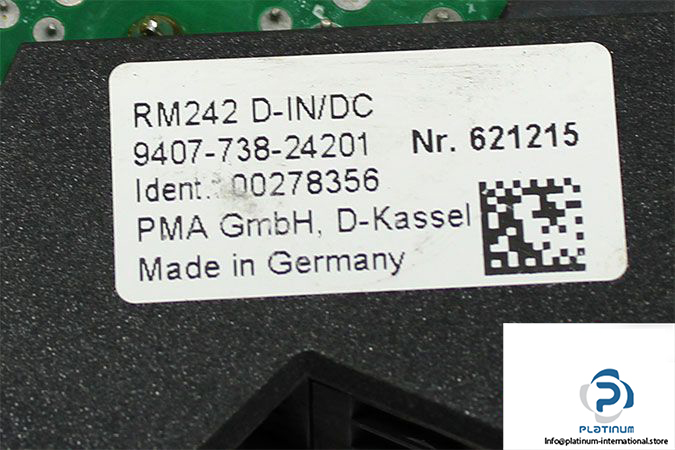

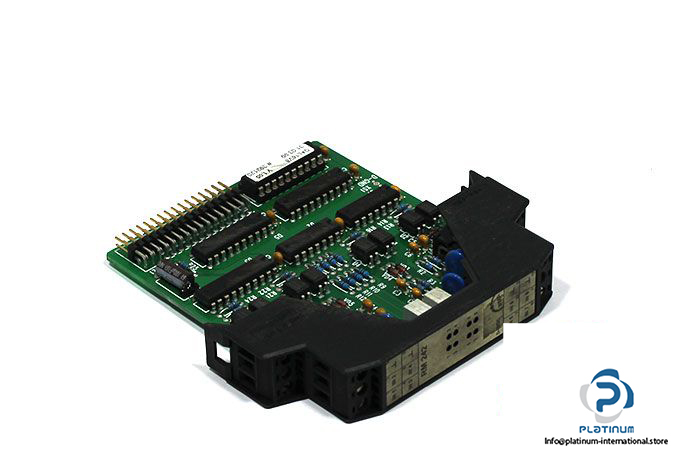

PMA RM242 9407-738-24201 Digital Input Module

Manufacturer: PMA

Type: Digital Input Module

Model: RM242

Part No: 9407-738-24201

Art No: 621215

ID No: 00278356

Application: Digital 8-Channel Input Module for 24 V DC-Signals

Power Consumption: max. 600 mW

Input Impedance: The input impedance per channel is 6.8 kΩ

Ambient Temperature: 0…50 °C

Protection Class: IP20

Dimensions: 99 x 17.5 x 114.5 mm

Housing: Polyamide PA 6.6, combustibility class V0 according to UL 94

Weight: 80 g
