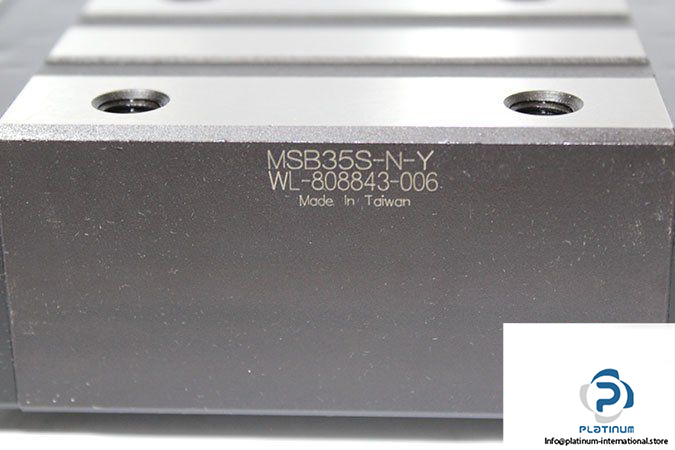

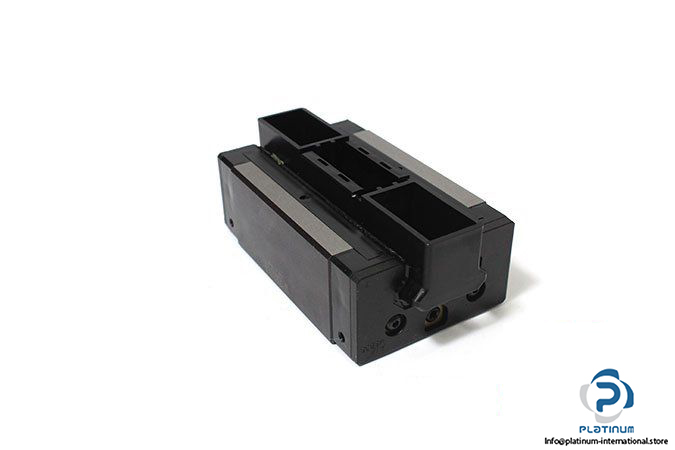

PMI MSB35S Linear Guideway Block

Manufacturer: PMI

Type: LINEAR GUIDEWAY BLOCK

Series: MSB

Model: MSB 35S

MRN: MSB35SSSFCNY

Size: 35

Block Type: Square

Load Type: Heavy load

Block Mounting Type: Top or bottom

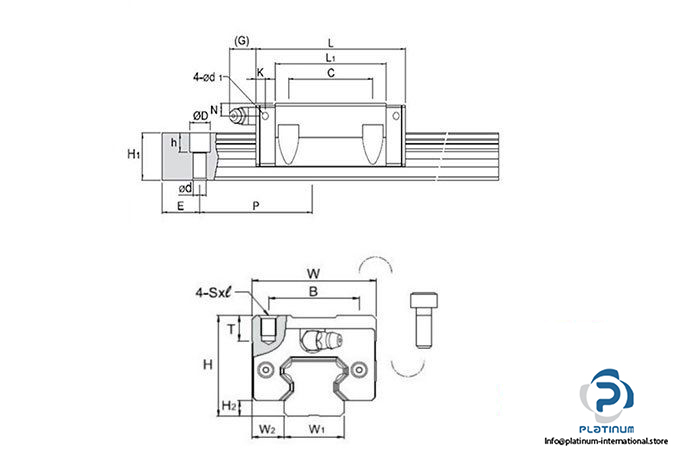

Block Height: 48 mm

Block Width: 70 mm

Block Length: 112 mm

Thread Size: M8

Rail Width: 34 mm

Rail Height: 27.5 mm

Preload: FC

Accuracy Grade: N

Basic dynamic load rating: 52 kN

Basic static load rating: 75.5 kN

Weight: 1.28 kg
