Pneumax 1322.50.25.01 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
PNEUMAX 1322.50.25.01 ISO Cylinder is designed for precision pneumatic applications. Featuring a 50 mm bore and 25 mm stroke, this double-acting actuator ensures efficient force transmission and durability. Equipped with a male piston rod end and G 1/4 pneumatic connection, it is ideal for industrial automation.1/41322.50.25.0125mm50mmActuatorAutomationboreComponentsconnectionCylinderdouble-actingGhigh-performanceIndustrialISOMPistonPneumaticPneumaxPrecisionRODSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

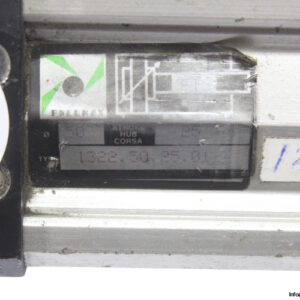

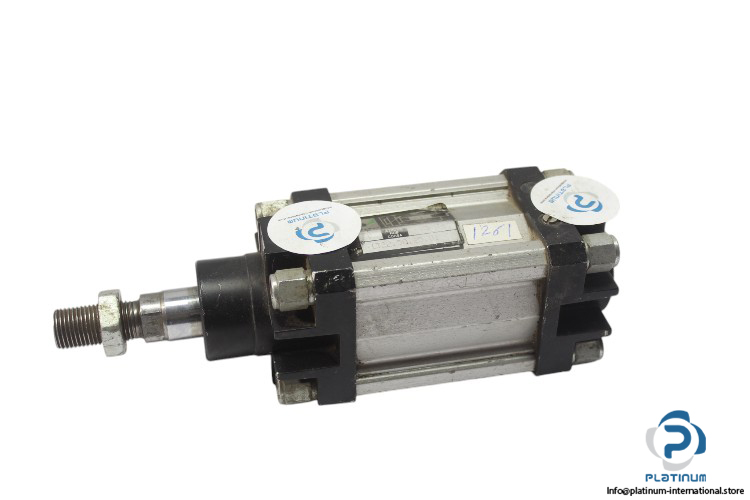

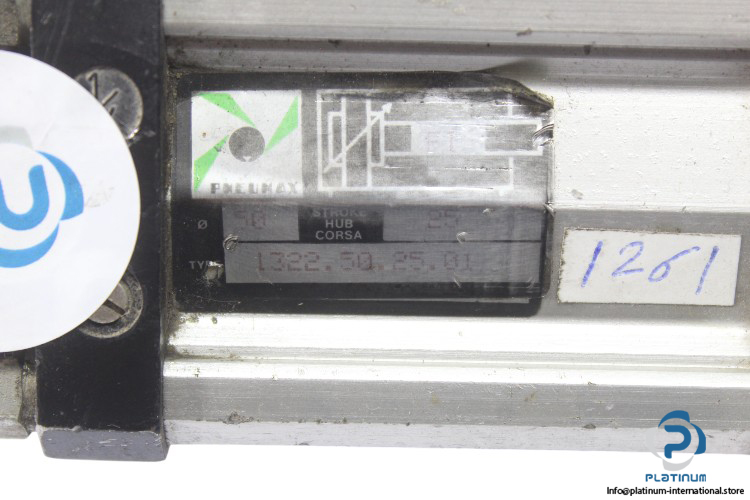

PNEUMAX 1322.50.25.01 ISO Cylinder
The PNEUMAX 1322502501 ISO Cylinder is a high-performance pneumatic actuator designed for precision and efficiency in industrial applications. Built to ISO standards, this double-acting cylinder ensures reliable operation, durability, and optimal force transmission for automation systems.
Manufacturer: PNEUMAX
Type: ISO Cylinder
Model: 1322.50.25.01
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 25 mm |
| Bore x Stroke | 50 x 25 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 66 x 160 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
