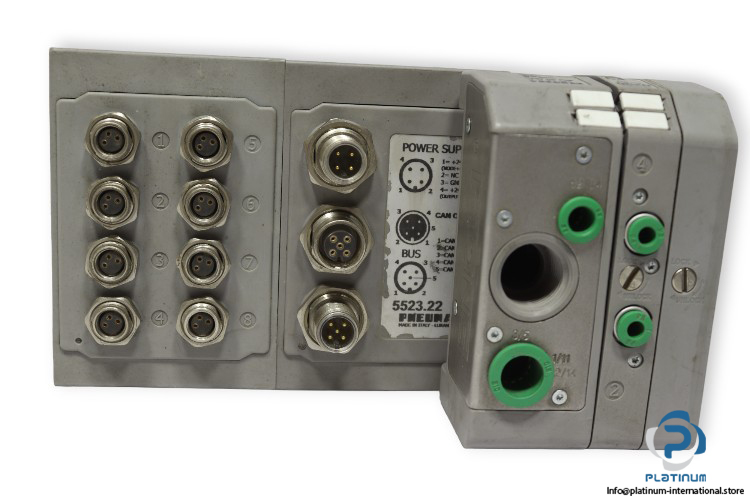

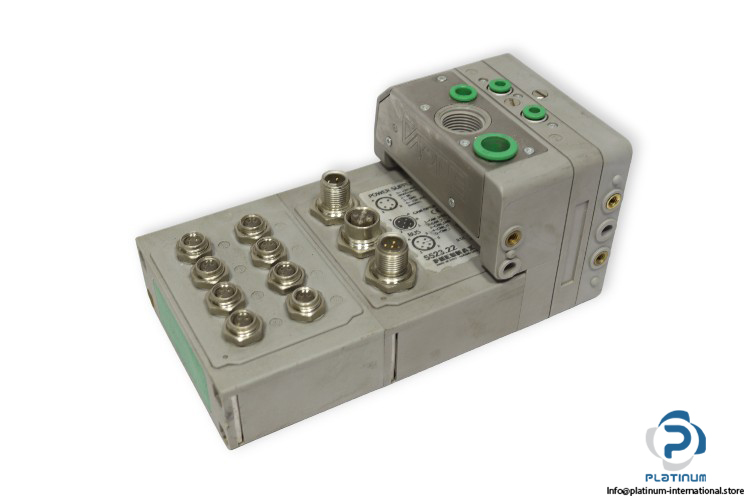

Pneumax 2766960028A Valve Terminal

Manufacturer: PNEUMAX
Type: Valve Terminal
Model: 2766960028A

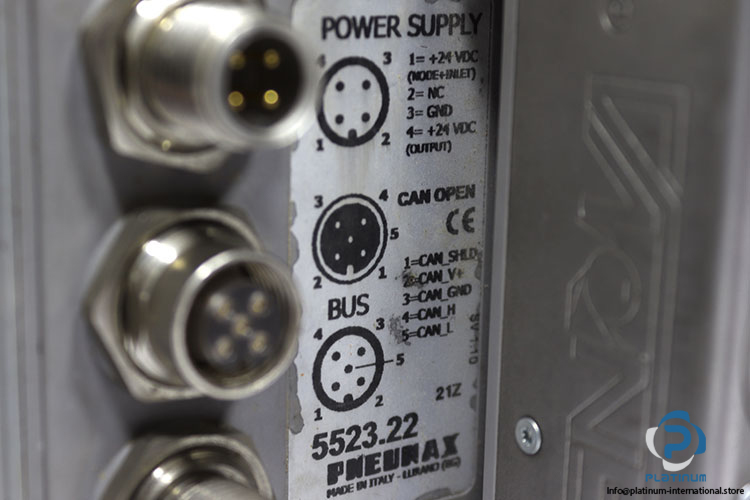

Attachments: PNEUMAX 5523.22
PNEUMAX 5200.08
PNEUMAX 2311.03P
PNEUMAX 2304.52.00.35.02
Valve functions:

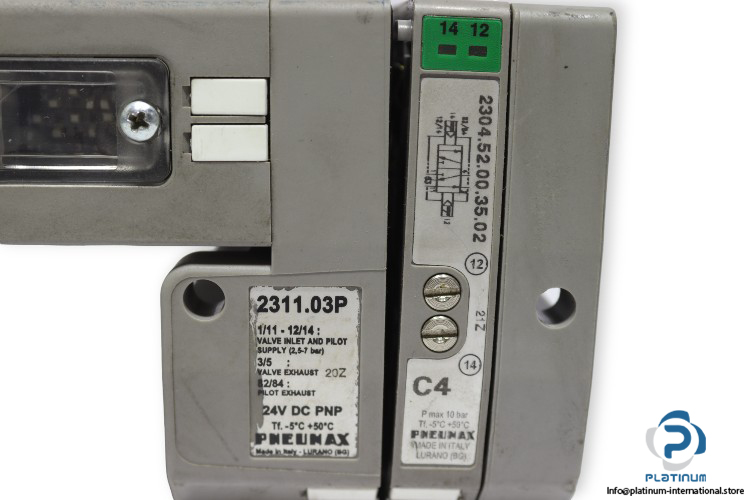

1x 5/2 Solenoid Valve (PNEUMAX 2304.52.35.02)
1x Electro-Distributor Connection Terminals (PNEUMAX 2311.03P)

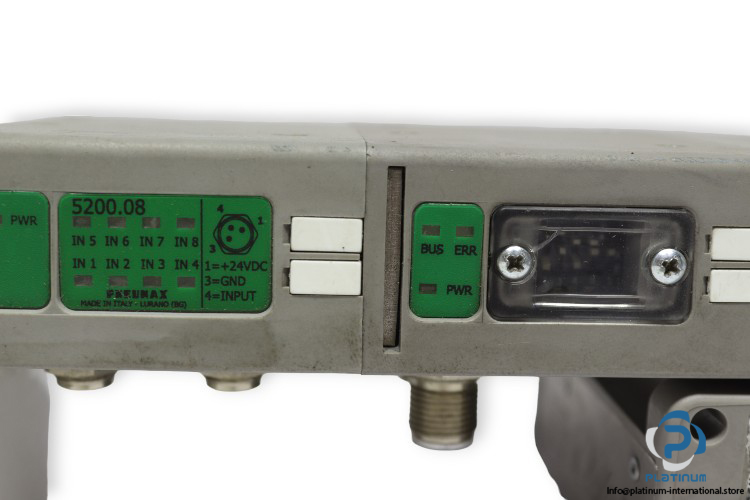

1x Electro Distributor (PNEUMAX 5200.08)
Width: 14 mm
Pneumatic Connections:
Supply port (1/11): 10 mm
Exhaust port (3/5): G3/8
Working ports (2/4): 4 mm
Pilot Exhaust Air Port (82/84): 6 mm
Valve Work Pressure: from vacuum to 10 bar
Pilot consumption: 0.9 watt
Electrical connection: Multi pin-plug
Ambient Temperature: -5 …. +50 °C
Operating voltage: 24 VDC
