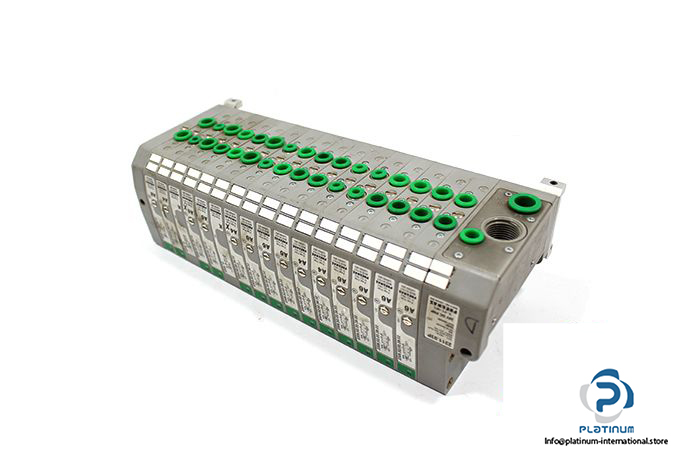

Pneumax 2790572134E Valve Terminals

Manufacturer: PNEUMAX

Type: Valve Terminals

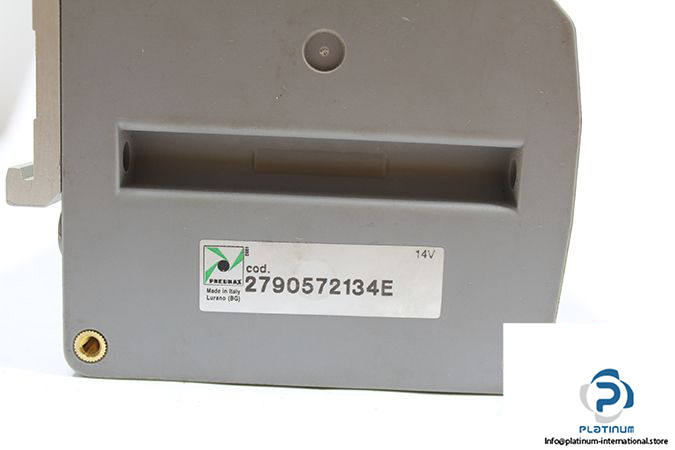

Model: 2790572134E

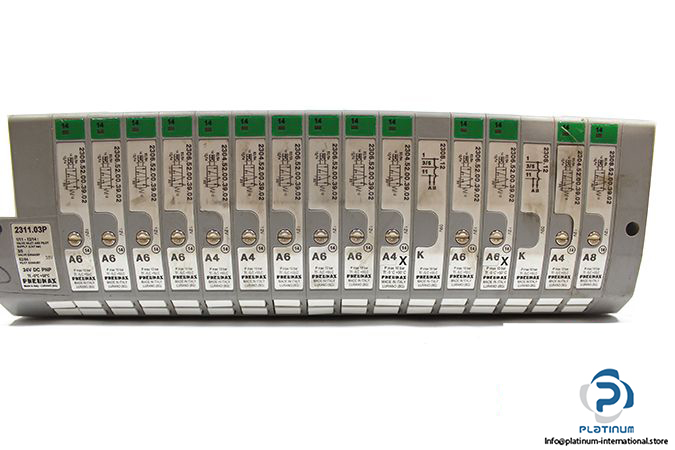

Valve functions:

1x 5/2 Solenoid Valve (PNEUMAX 2308.52.00.39.02)

4x 5/2 Solenoid Valve (PNEUMAX 2304.52.00.39.02)

9x 5/2 Solenoid Valve (PNEUMAX 2306.52.00.39.02)

1x Electro-Distributor Connection Terminals (PNEUMAX 2311.03P)

2x Intermedia Module (PNEUMAX 2308.12)

Width: 14 mm

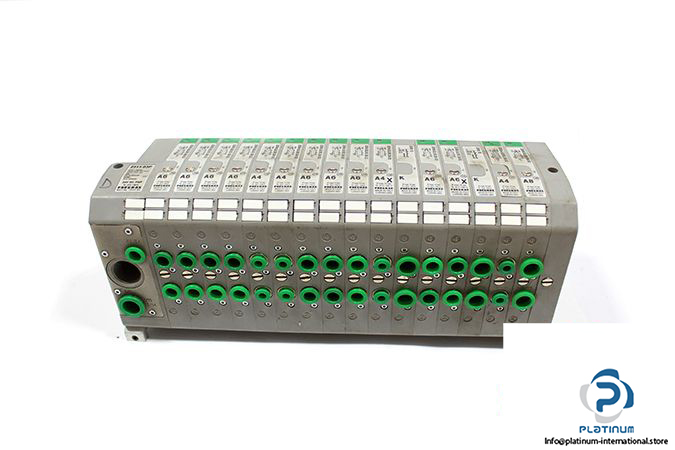

Pneumatic Connections:

Supply port (1/11): 10 mm

Exhaust port (3/5): 3/8

Working ports (2/4): 4 mm, 6 mm, and 8 mm

Pilot Exhaust Air Port (82/84): 6 mm

Operating pressure:

Valve Work Pressure: from vacuum to 10 bar

Electrical connection: 25 pin-plug

Ambient Temperature: -5 …. +50 °C

Operating voltage: 12 VDC

Weight: 2.00 kg
