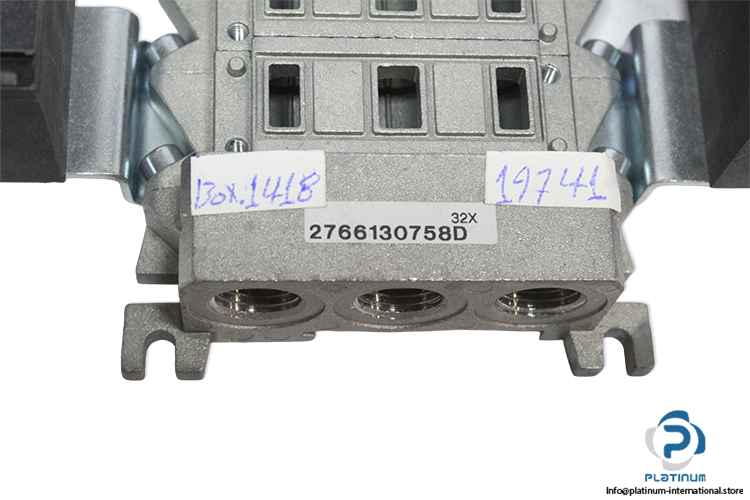

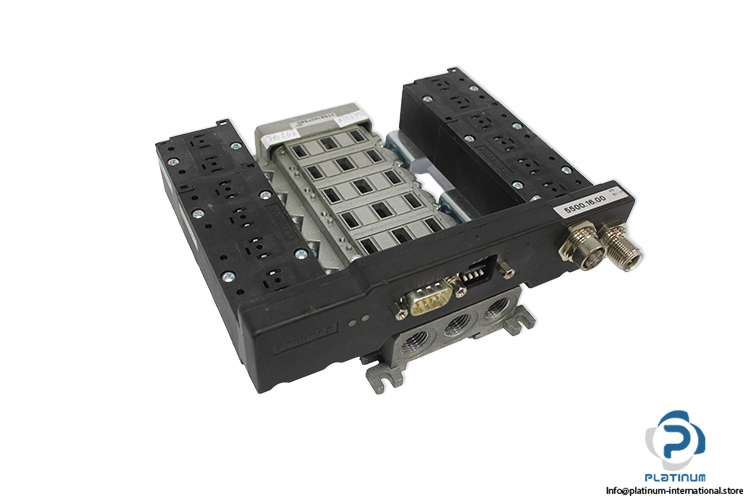

Pneumax 32X 2766130758D Pneumatic Valve Terminal
Used
In stock2 unitsReady to ship
Pneumatic Valve Terminal / Valve Manifold The PNEUMAX 32X 2766130758D pneumatic valve terminal features a 5500.16.00 CANopen Slave interface, providing reliable fieldbus communication and efficient pneumatic valve control for industrial automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Attachment | PNEUMAX 5500.16.00 CANOPEN SLAVE |
| Slave Manufacturer | PNEUMAX |
| Attachment Type | CANopen Slave |

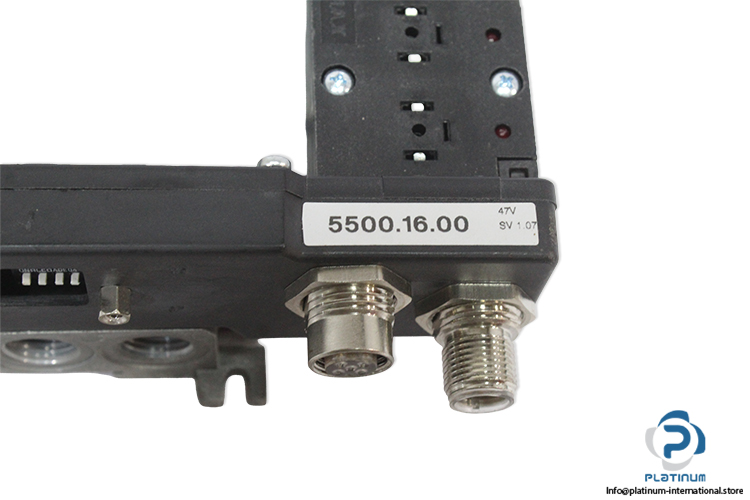

| Slave Model | 5500.16.00 |
| Slave Series | 2400 |
| Slave Protocol | CANopen |
| Slave Supply Voltage | 24 V DC |
| Slave Node Consumption (Outlets Excluded) | 50 mA |
| Slave Outputs | PNP Equivalent Outputs 24 VDC |
| Slave Current Per Output Max | 100 mA |
| Slave Outputs No. Max | 16 |
| Slave Simultaneously Actuated Outputs Max | 16 |

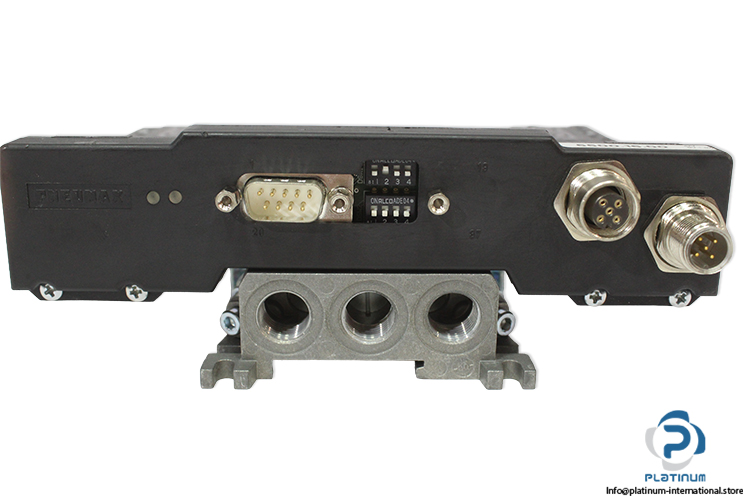

| Slave Network Connections | 2 x M12 5-Pole Male/Female Connectors |
| Slave Power Supply Connection | 9 Pole Sub-D Male Connector |
| Slave Transmission Speed | 125 / 250 / 500 / 1000 Kbit/s |
| Slave Available Node Addresses | 1 to 63 |
| Slave Nodes No. Max | 128 |
| Slave Bus Length Max | 100 m at 1000 Kbit/s |
| Slave Diagnosis Bus | Green Led + Red Led |
| Slave Configuration File | PnxS106.eds |
| Slave External Casing | Reinforced Technopolymer |
| Slave Protection Class | IP65 |
| Slave Ambient Temperature | 0 … 50 °C |
| Condition | Used |
| SKU | 1102605 |
| Weight | 1,11 |
