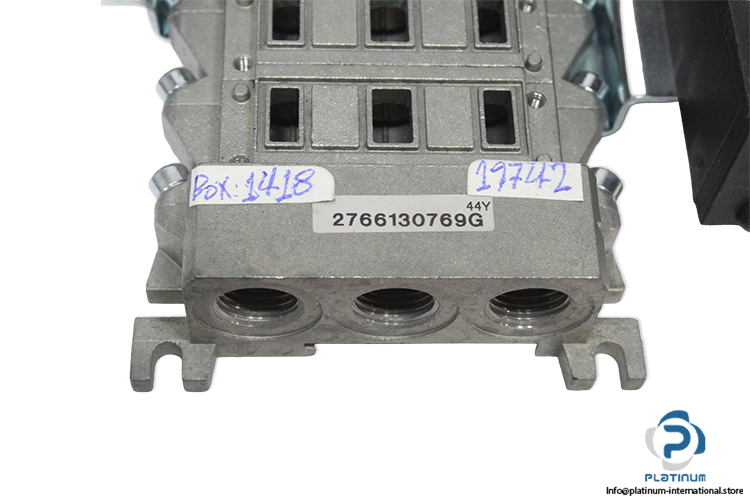

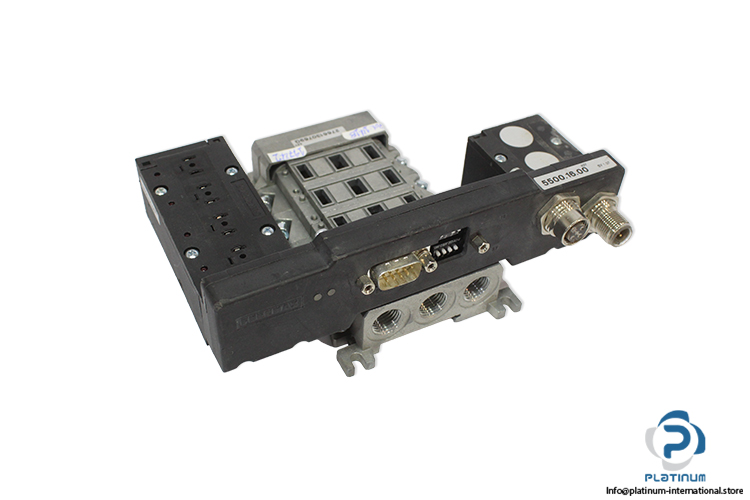

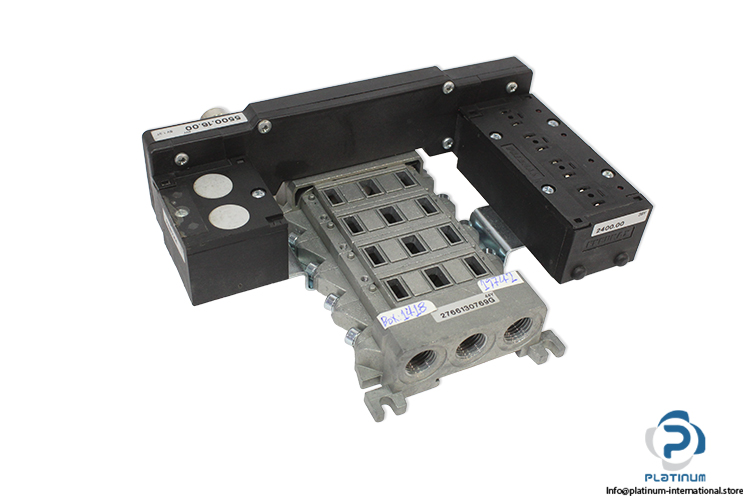

Pneumax 44Y 2766130769G Pneumatic Valve Terminal
Used
In stock1 unitReady to ship
Pneumatic Valve Terminal / Valve Manifold Industrial PNEUMAX pneumatic valve terminal with integrated CANopen Slave for reliable pneumatic control, fieldbus communication, and automation system integration.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Port Size | G1/4 |
| Attachment | PNEUMAX 5500.16.00 CANOPEN SLAVE |
| Slave Manufacturer | PNEUMAX |

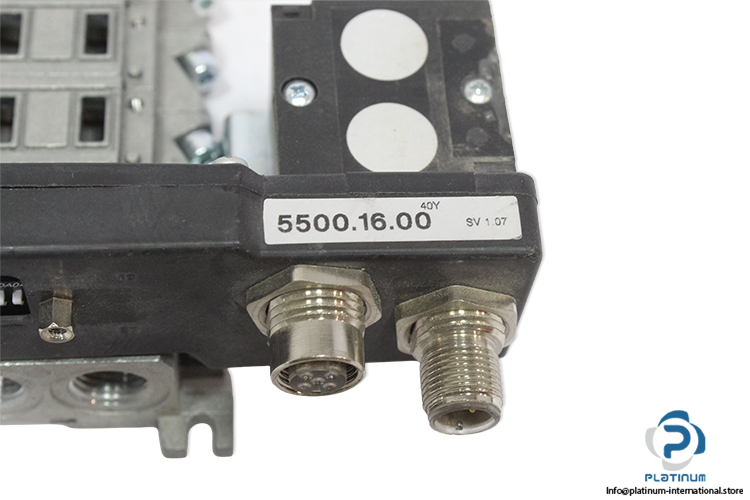

| Slave Model | 5500.16.00 |
| Slave Series | 2400 |
| Slave Protocol | CANopen |
| Slave Supply Voltage | 24 V DC |
| Slave Node Consumption (Outlets Excluded) | 50 mA |
| Slave Outputs | PNP Equivalent Outputs 24 VDC |
| Slave Current Per Output Max | 100 mA |
| Slave Outputs No. Max | 16 |
| Slave Simultaneously Actuated Outputs Max | 16 |

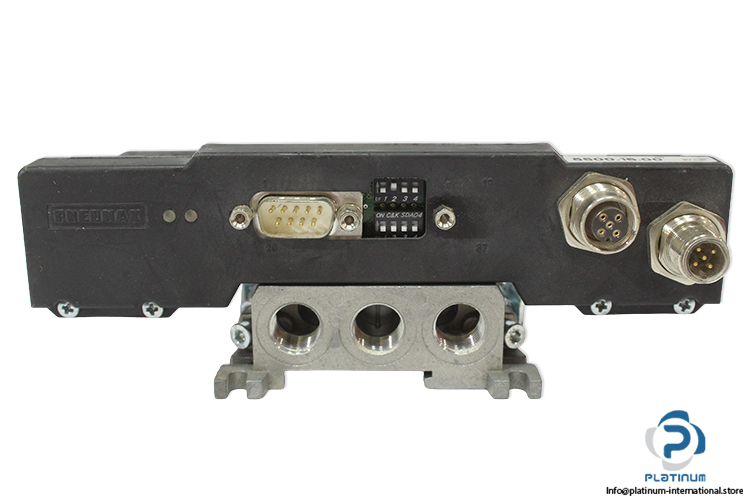

| Slave Network Connections | 2 x M12 5-Pole Male/Female Connectors |
| Slave Power Supply Connection | 9 Pole Sub-D Male Connector |
| Slave Transmission Speed | 125 / 250 / 500 / 1000 Kbit/s |
| Slave Available Node Addresses | 1 to 63 |
| Slave Nodes No. Max | 128 |
| Slave Bus Length Max | 100 m at 1000 Kbit/s |
| Slave Diagnosis Bus | Green Led + Red Led |
| Slave Configuration File | PnxS106.eds |
| Slave External Casing | Reinforced Technopolymer |
| Slave Protection Class | IP65 |
| Slave Ambient Temperature | 0 … 50 °C |
| Condition | Used |
| SKU | 1102606 |
| Weight | 0,83 |
