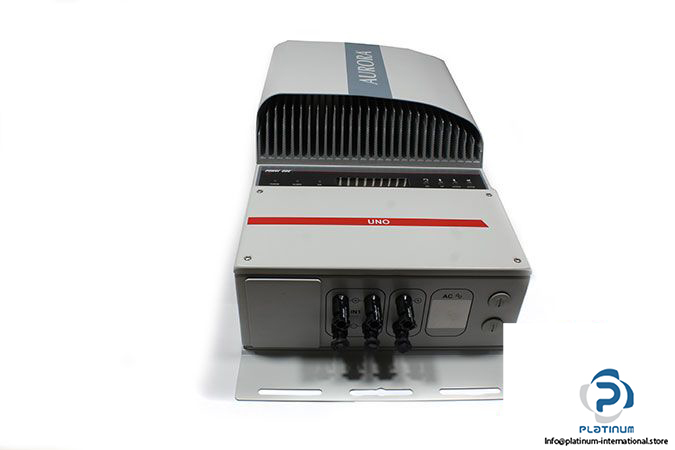

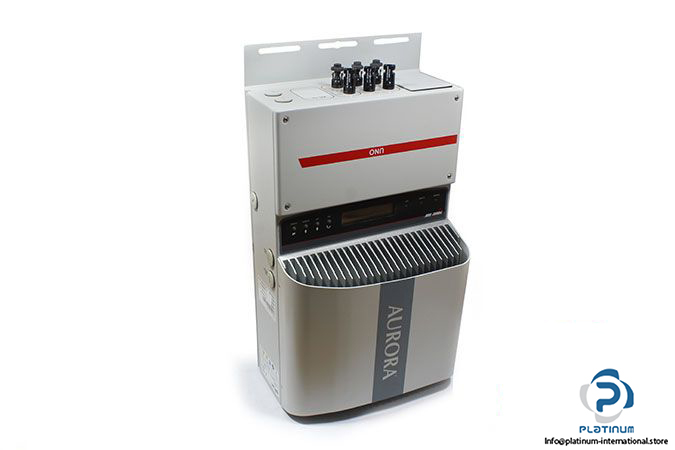

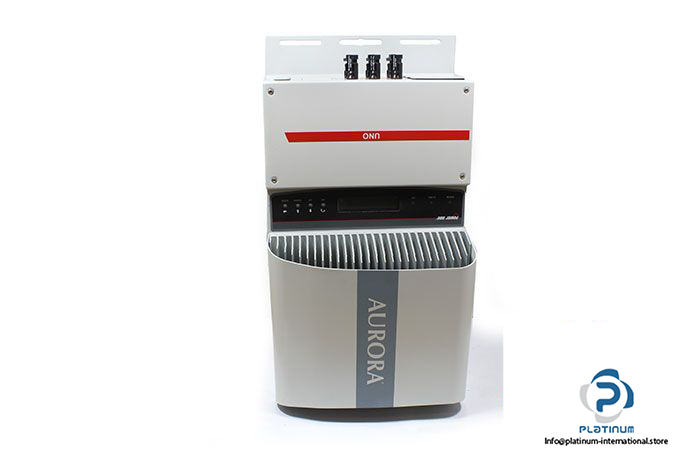

Power ONE PVI-4.2-TL-OUTD Solar Inverter

Manufacturer: POWER ONE

Type: Solar Inverter

Model: PVI-4.2-TL-OUTD

DC Input

Absolute Max. DC Input Voltage: 600 V

Start-up DC Input Voltage: 200 V

Rated DC Input Power: 4375 W

Number of Independent MPPT: 2

Maximum DC Input Power for each MPPT: 3000 W

DC Input Voltage Range with Parallel Configuration of MPPT: 140…530 V

Maximum DC Input Current (I dcmax) / for each MPPT (I MPPTmax): 32.0 A / 16.0 A

Maximum Input Short Circuit Current for each MPPT: 20.0 A

DC Switch Rating for each MPPT (-S Version): 25 A / 600 V

AC Output

AC Grid Connection Type: Single phase

Rated AC Power (Pacr): 4200 W

Maximum AC Output Power (Pacmax): 4600 W

Rated AC Grid Voltage: 230 V

AC Voltage Range: 180…264 V

Maximum AC Output Current: 20.0 A

Rated Output Frequency: 50 Hz



Protection Class: IP 65

Type of Connection: ON Grid

Maximum Operating Altitude without Derating: 2000 m

Ambient Temperature: -25 … 60 °C

Weight: 20 kg
