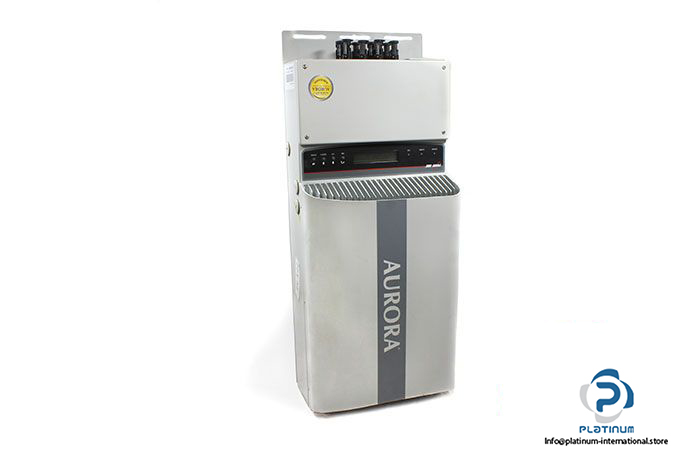

Power ONE PVI-6000-OUTD-IT Inverter

Manufacturer: ABB POWER ONE

Type: Grid Tie Inverter

Series: AURORA

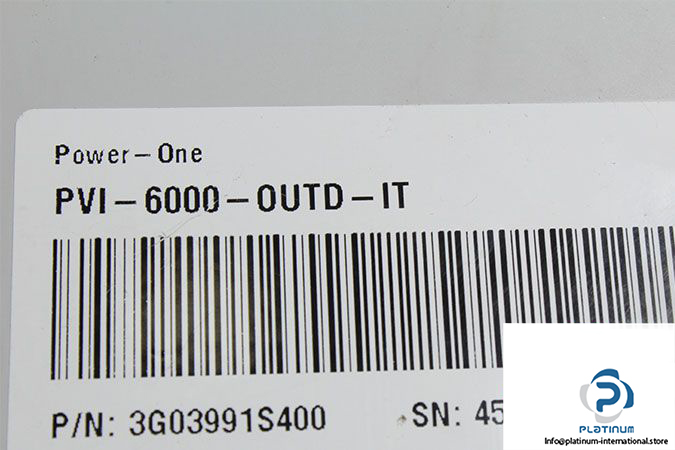

Model: PVI-6000-OUTD-IT

Part No.: 3G03991S400

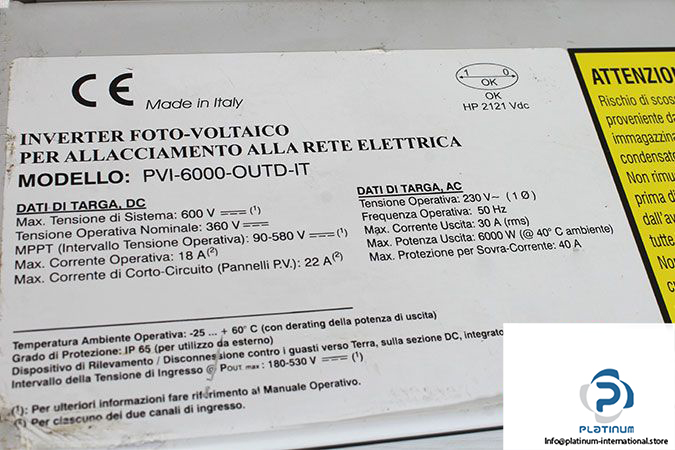

DC Input

Recommended PV Power (STC): 4000 W (per channel)

Max. Voltage: 600 V

Voltage Range ( MPPT): 90-580 V

Peak Power Tracking Voltage: 200 V – 530 V

Min. Start Voltage: 200 V

Max. Current: 18 A (per channel)

AC Output

Rated Grid AC Voltage: 208/240/277 VAC

Max. Output Power: 6000 W

Max. Current: 30 A, 28 A, 24 A

Frequency: 50 Hz



Type of Connection: ON Grid

Cooling: Natural Convection

Dimensions (Height x Width x Depth): 81 x 32.5 x 18.5 mm

Temperature: -25 … 60° C

Weight: 27.5 kg
