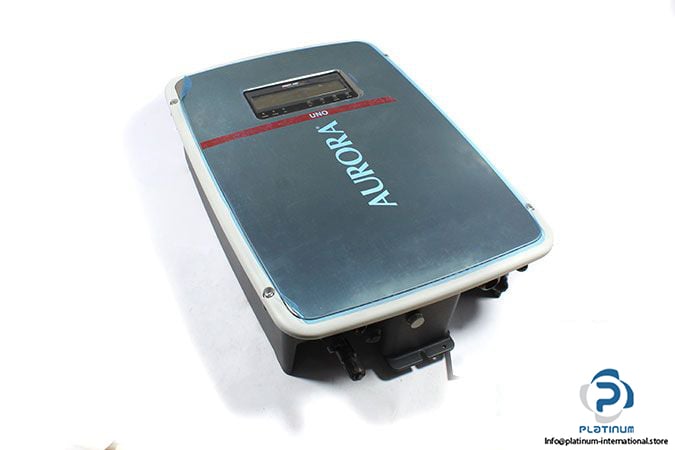

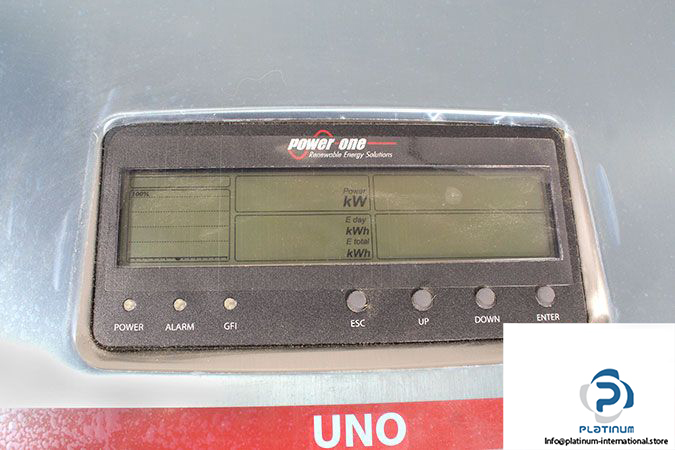

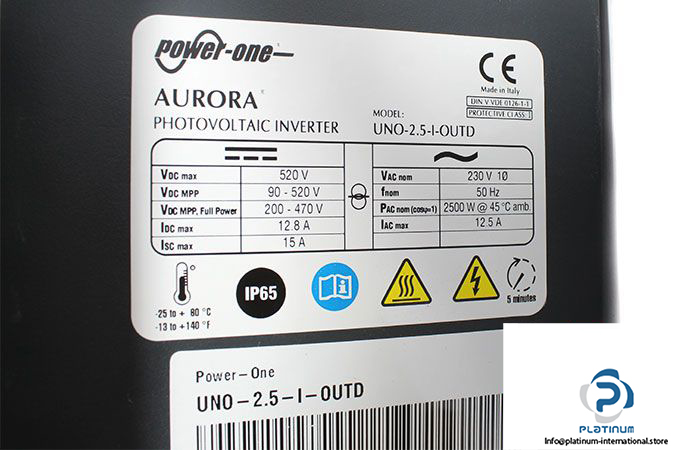

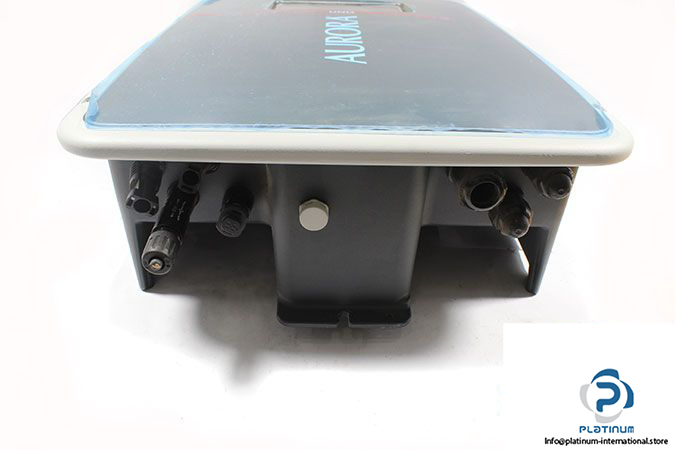

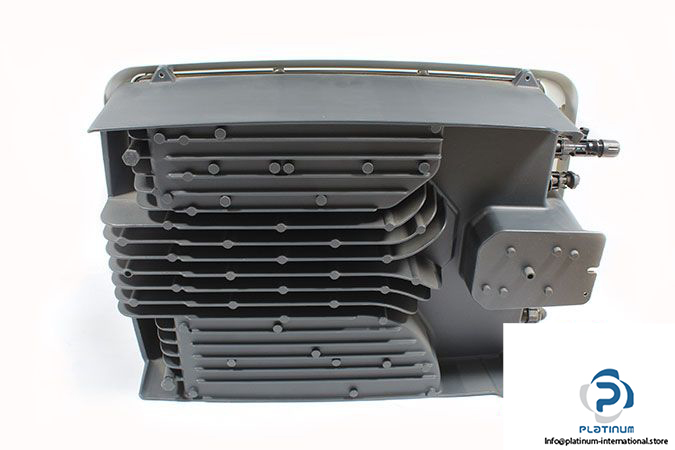

Power-ONE UNO-2.5-I-OUTD Inverter

Manufacturer: Power-One

Type: Grid Tie Inverter

Series: AURORA

Model: UNO-2.5-I-OUTD

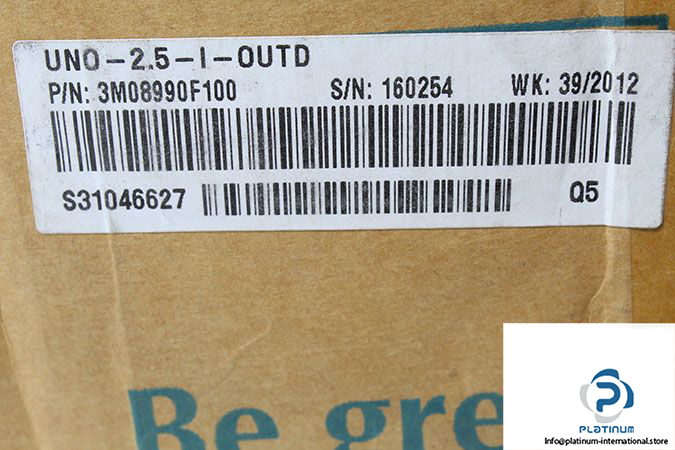

Part No.: 3M08990F100



DC Input

Recommended PV Power (STC): 2900 W

Max Voltage: 520 V

Peak Power Tracking Voltage: 205 – 470 V

Min Start Voltage: 200 V

Max Current: 12.8 A

AC Output

Maximum Output Power: 2500 W

Nominal AC Voltage: 208, 240, 277 V

Frequency: 60 Hz

Max Current: 12 A

Type of Connection: ON Grid

Cooling: Natural Convection

Dimensions (W x H x D): 30.3″ x 14.4″ x 6.3″

Enclosure: NEMA 4X

Operating Temperature: -25 – 60 °C

Weight: 18.70 kg
