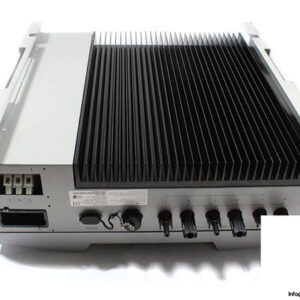

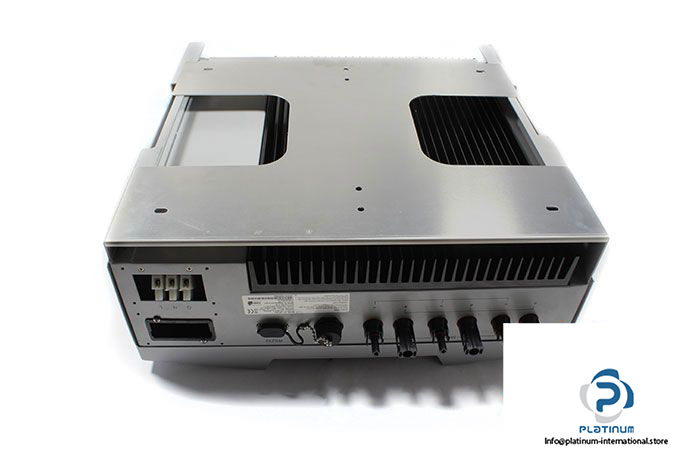

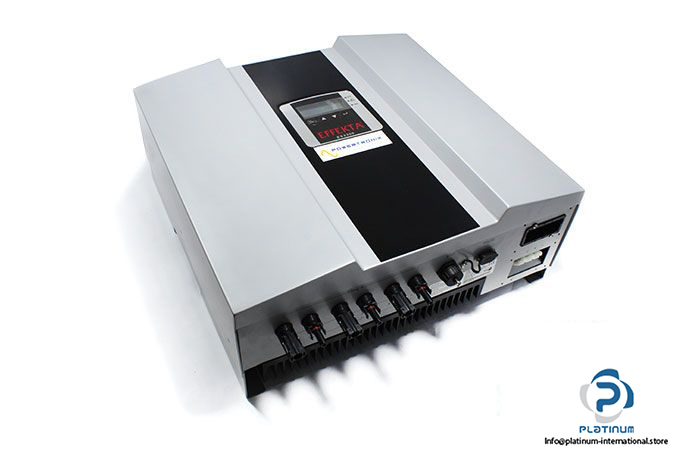

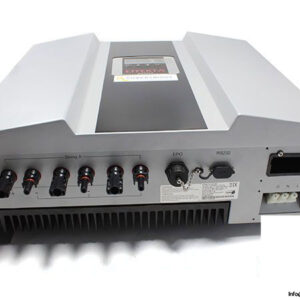

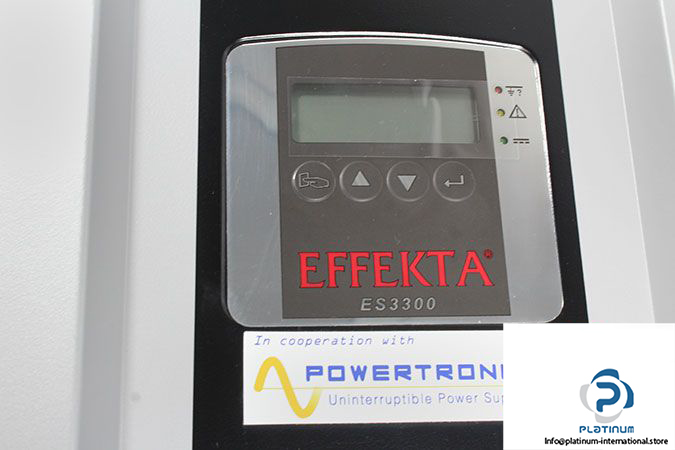

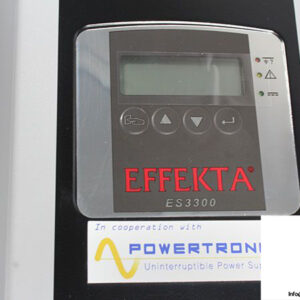

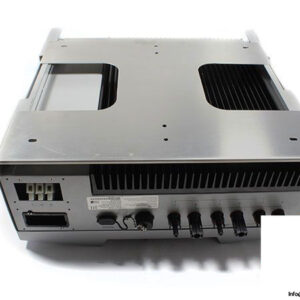

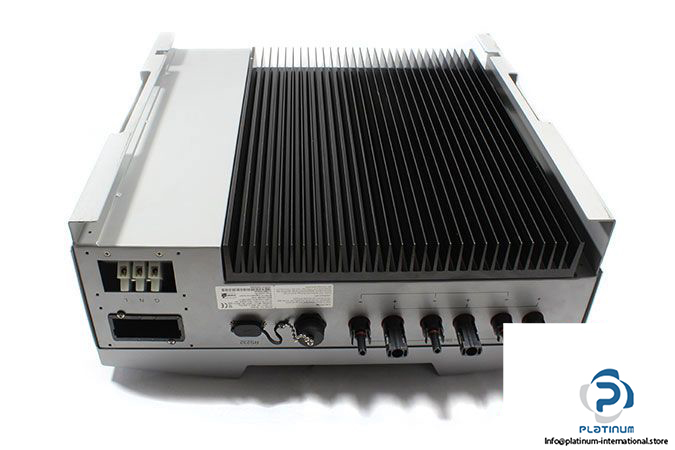

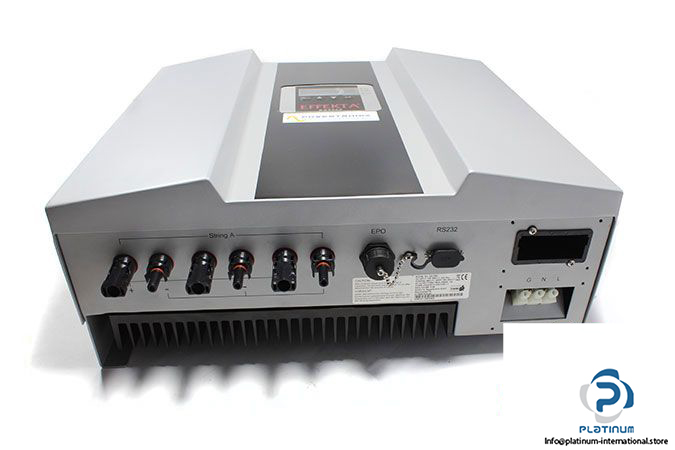

Powertronix ES3300 Solar Inverter

Manufacturer: POWERTRONIX

Type: Solar Inverter

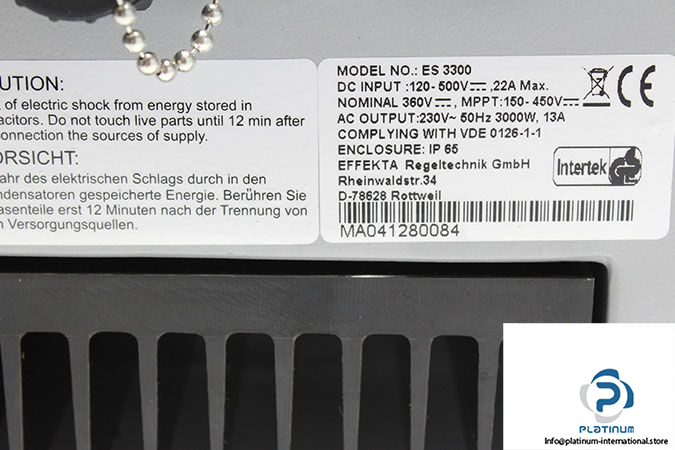

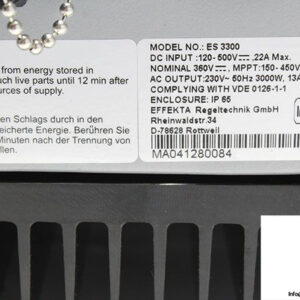

Model: ES 3300

Application: Ideal for any solar module

DC Input

Operating voltage: 120 – 500 V

Nominal Voltage:  360 V

MPPT range:  150 – 450 V

Max. Current:  22 A

AC Output

Nominal Power:  3000 W

Max. Power:  3300 W

Nominal Voltage:  230 V

Voltage Range: 184 … 264.5 V

Nominal current:  13 A

Frequency:  50/60 Hz

Type Of Output Connection:  Single-phase, mains connection (L, N, PE)



Type of Connection: ON Grid

Protection Class: IP65

Dimensions (Depth x Width x Height): 190 x 455 x 430 mm

Temperature:  -25 … 50 ° C

Weight: 25 kg
