Powertronix ES5000 Solar Inverter

Manufacturer: POWERTRONIX

Type: Solar Inverter

Model: ES5000

Application: Ideal for any solar module

Features:

• A free slot allows you to install additional data ports such as RS-485, USB, TCP / IP or a relay control board

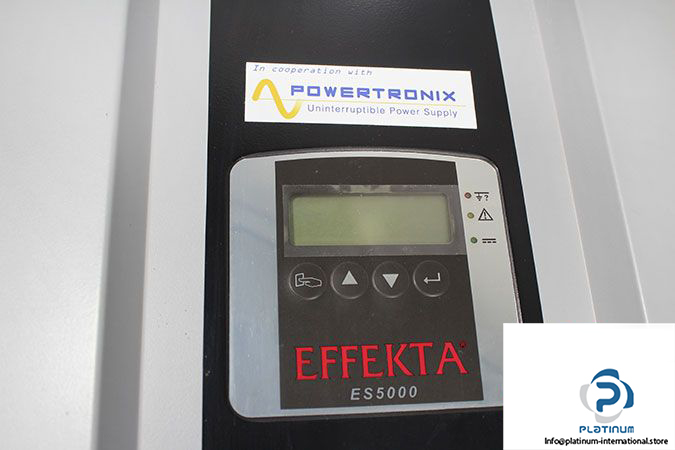

• equipped with an LCD display for basic information and an RS-232 port
• The ES 5000 model has the ability to intelligently work not only with one, but also with two battery modules

DC Input

Operating voltage: 120VDC … 500 VDC

Nominal Voltage: 360 VDC

MPPT range: 150 – 450 VDC

Max Current: 17.65A

No. MPP trackers: 2

AC Output

Nominal Power: 5000 W

Max. Power: 5300 W

Voltage range: 184 – 264.5 VAC

Nominal current: 21.7 A

Frequency: 50 / 60 Hz

Output connection form: 1-phase, mains connection (L,N,PE)

Type of Connection: ON Grid

Protection Class: IP 65

Dimensions (Depth x Width x Height):  455 x 510 x 170 mm

Temperature:  -25 … 50 ° C

Weight: 31.8 kg
