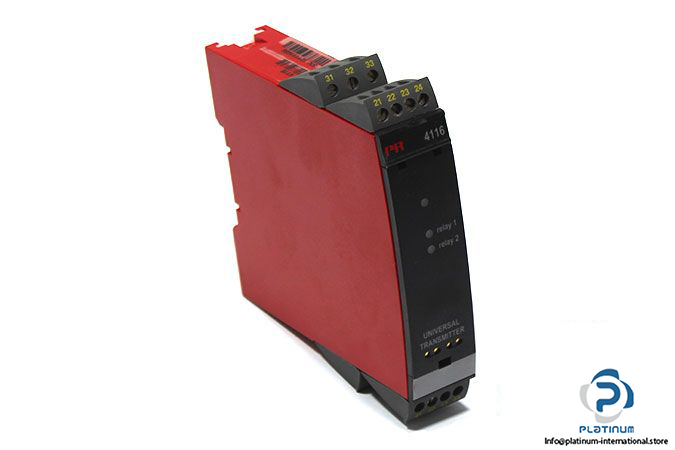

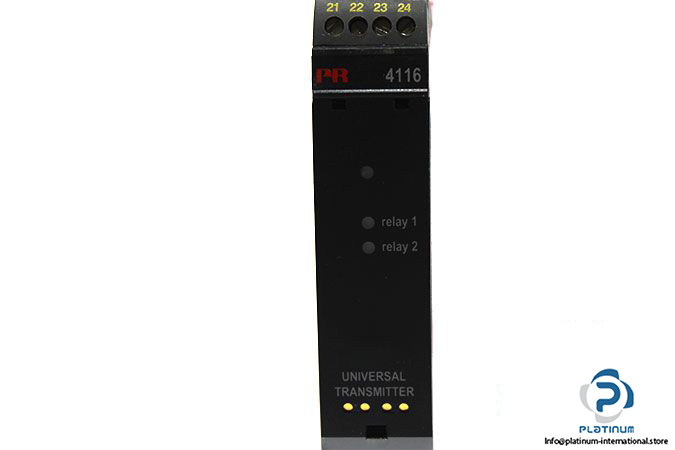

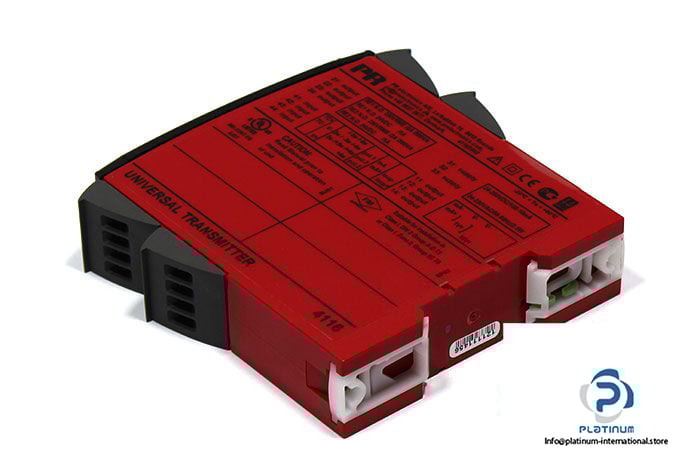

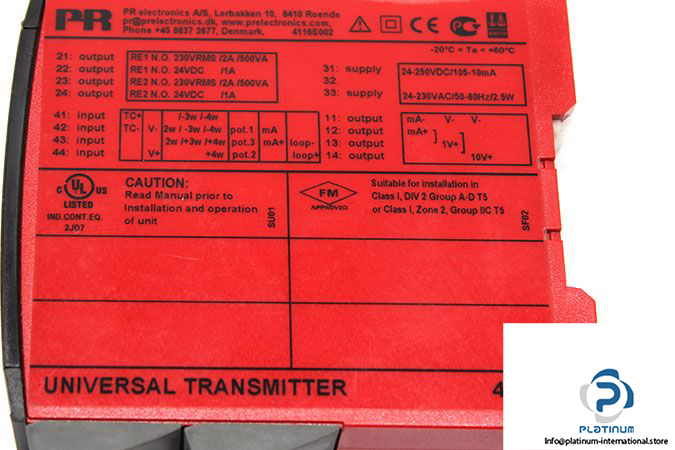

PR 4116 Universal Transmitter

PR 4116 Universal Transmitter

The PR 4116 Universal Transmitter is a versatile industrial signal conditioning device designed for accurate measurement, conversion, and monitoring of process signals. It supports multiple input and output signal types, making it suitable for automation systems, industrial instrumentation, and process control applications where reliable signal transmission and flexible configuration are required.

Manufacturer: PR

Type: Universal Transmitter

Model: 4116

Electrical Specifications

• Specifications Range: -20 / 60 °C
• Supply Voltage: 21.6 / 253 V AC
• Max. Consumption: ‰¤ 2.5 W
• Fuse: 400 mA SB / 250 V AC
• 2-Wire Supply (Terminal 44 / 43): 25 / 16 VDC / 0 / 20 mA

Input Current

• Programmable Measurement Range: 0 / 20 & 4 / 20 mA
• Input Resistance: Nom. 20 Ω + PTC 50 Ω

Input Voltage

• Programmable Measurement Range: 0 / 1 / 0.2 / 1 / 0 / 5 / 1 / 5 / 0 / 10 and 2 / 10 VDC
• Input Resistance: Nom. 10 MΩ

Current Output

• Programmable Signal Range: 0 / 20 / 4 / 20 / 20 / 1 / 20 / 4 mA
• Load Max.: 20 mA / 800 Ω / 16 VDC

Voltage Output

• Programmable Signal Range: 0 / 1 / 0.2 / 1 / 0 / 5 / 1 / 5 / 0 / 10 / 2 / 10 / 1 / 0 / 1 / 0.2 / 5 / 0 / 5 / 1 / 10 / 0 and 10 / 2 VDC
• Load Min.: 500 kΩ

Relay Output

• Relay Functions: Setpoint, Window, Sensor Error, Latch, Power and Off
• Sensor Error Detection: Break / Make / Hold
• Max. Voltage: 250 Vrms
• Max. Current: 2 A AC or 1 A DC
• Max. AC Power: 500 VA

PNP Output

• Max. Current: 30 mA
• Voltage: 24 VDC

NPN Output

• Max. Current: 150 mA
• External Voltage (Terminal 23): 55 VDC

• Frequency Output: 0 / 25000 Hz
• Dimensions: 109 X 23.5 X 116 mm
• Protection Class: IP20

Recommendation: Ideal for industrial automation systems requiring flexible signal conversion and reliable transmitter performance.
