Quanxing ZYB-1816L/802 Displacement Vane Pump
Used
In stock1 unitReady to ship
Displacement Vane Pump
QUANXING ZYB-1816L/802 Displacement Vane Pump delivers efficient and reliable fluid transfer. With a 19 mm shaft diameter, 11 teeth, and a speed range of 500 to 3600 r/min, it ensures precise operation in industrial applications. Designed to handle up to 20 MPa pressure and a maximum flow rate of 25 l/min, it is built for demanding environments.1:11/219mm20253/8500-3600connectionDisplacementflowFluidGhigh-pressureHydraulicIndustriall/minMPaPneumaticpumpQuanxingrpmshaftTeethTransferVaneZYB-1816L/802
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

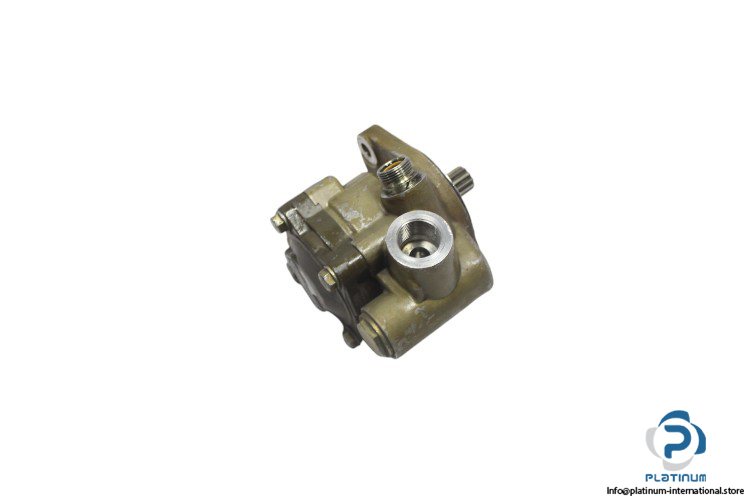

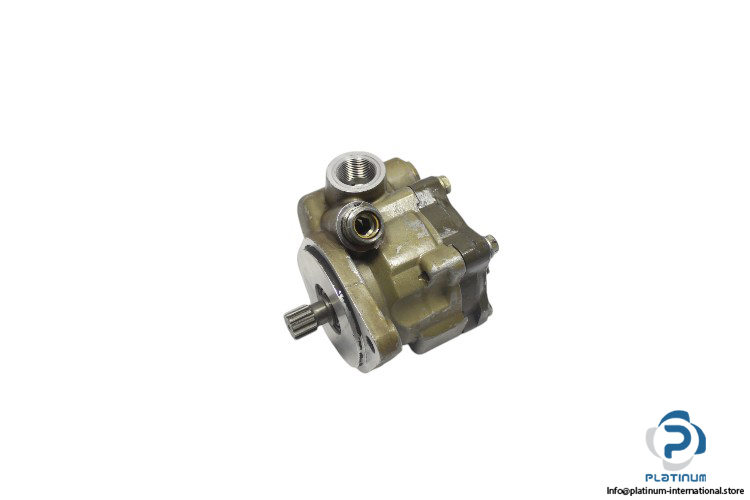

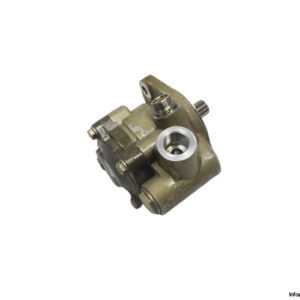

QUANXING ZYB-1816L/802 Displacement Vane Pump
The QUANXING ZYB1816L802 Displacement Vane Pump is engineered for high-performance fluid transfer applications. Designed for efficiency and durability, it delivers precise flow control under varying pressure conditions, making it ideal for industrial and hydraulic systems.
Manufacturer: QUANXING
Type: Displacement Vane Pump
Model: ZYB-1816L/802

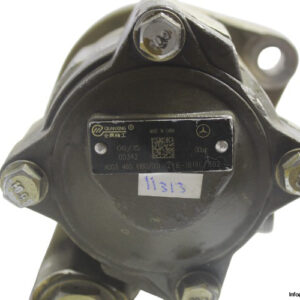

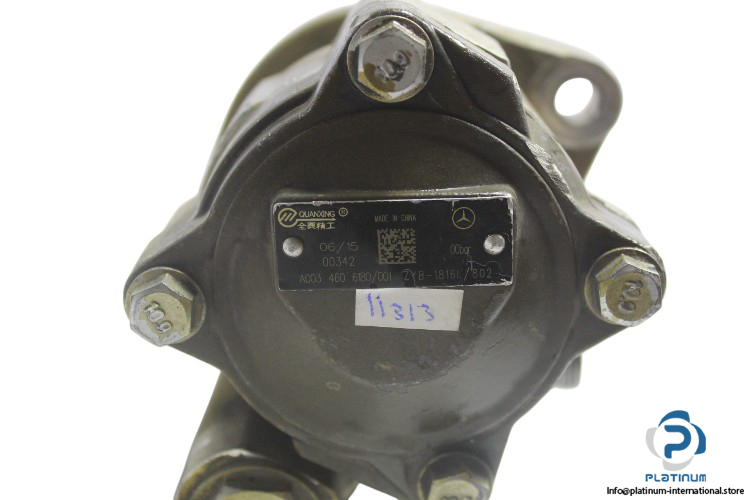

Alternative Model: A003 460 6180/001
| Shaft Diameter | 19 mm |
| Shaft Teeth No. | 11 |
| Rational Speed | 500 / 3600 r/min |
| Operating Pressure Max. | 20 MPa |
| Flow Rate Max. | 25 l/min |
| Pneumatic Connection | G 3/8 & G 1/2 |
| Ambient Temperature | -40 / 150 °C |
