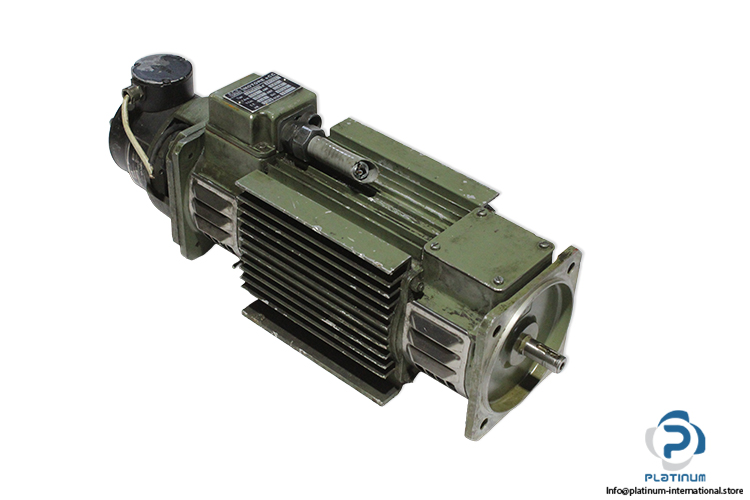

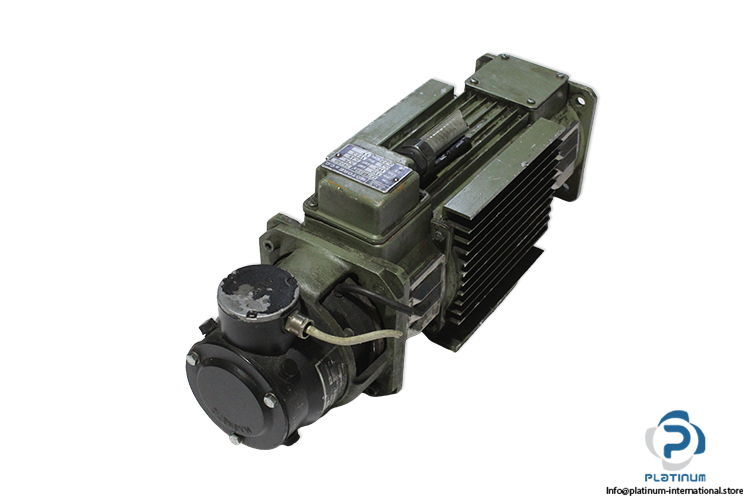

R.C.V. AF71.105 DC Motor
Used
In stock1 unitReady to ship
The R.C.V. AF71.105 DC Motor is a reliable industrial motor designed for precision motion control and continuous-duty applications. Featuring 0.22kW output power, 1500 RPM rated speed, S1 duty operation, and an integrated BRB 11/6CA tachogenerator for accurate speed feedback.
Rated Power:
0.22 kW
Armature Voltage:
110 V
Rated Speed:
1500 RPM
Duty:
S1
Shaft Diameter:
14 mm
Maximum Speed:
5,000 RPM
AFApplicationsAutomationContinuousControldcDriveDutyElectricinIndustrialMotionmotorPlatinumR.C.V.SeriesServoshaftSpeedTachogenerator
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

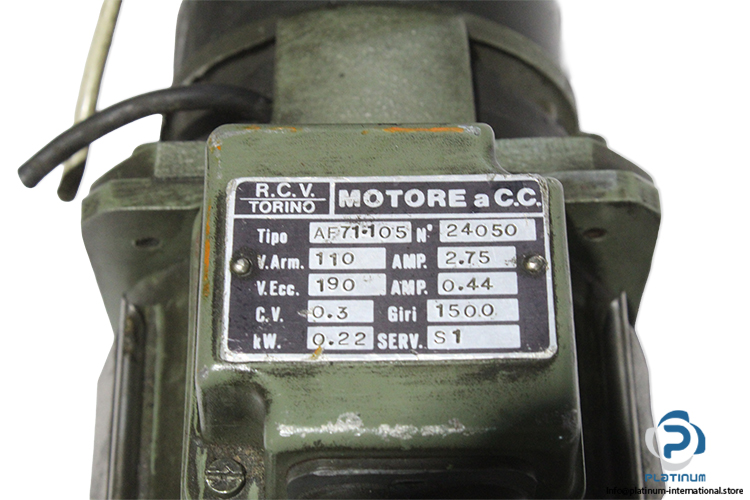

| Part No. | 24050 |
| Series | AF |
| Rated Power [kW] | 0.22 |
| Armature Voltage [V] | 110 |
| Armature Current [A] | 2.75 |
| Excitation Voltage [V] | 190 |
| Excitation Current [A] | 0.44 |
| Rated Speed [rpm] | 1500 |
| Power (C.V.) | 0.3 HP |
| Duty | S1 |
| Shaft Diameter | 14 mm |
| Shaft Length | 30 mm |

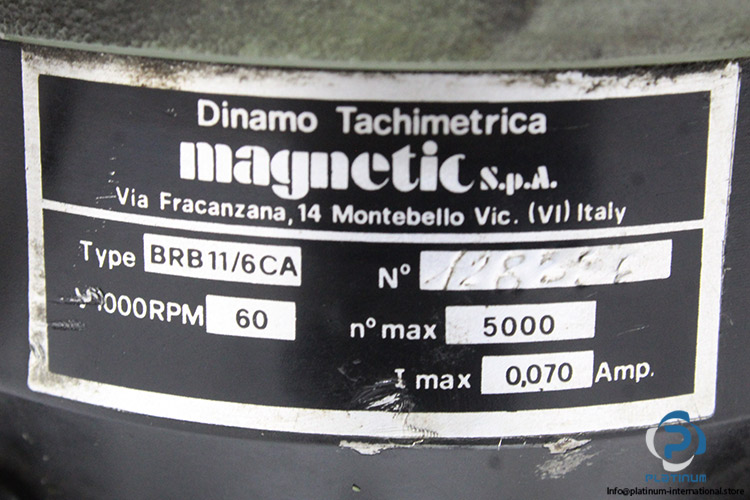

| Attached with | MAGNETIC BRB 11/6CA TACHOGENERATOR |
| Winding Output | 60 Volts per 1,000 RPM |
| Maximum Speed (max) | 5,000 RPM |
| Maximum Current ( max) | 0.070 Amps |
| Condition | Used |
| SKU | 1096995 |
| Weight | 13,7 |
