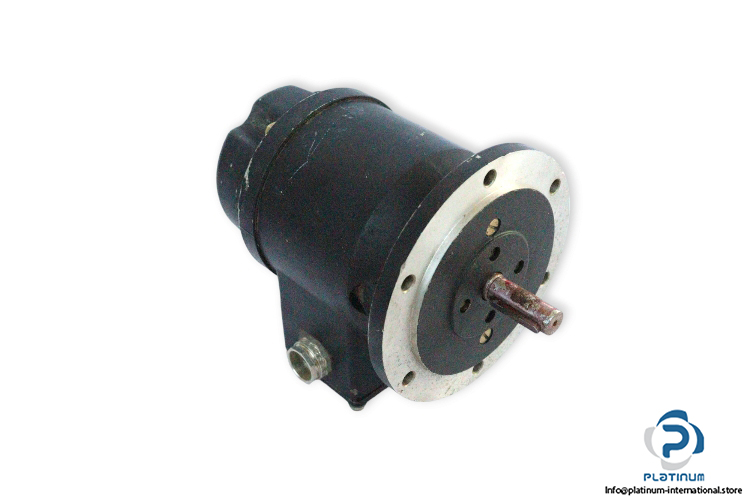

Radio-Energie RE0.444R Direct Current Tachometer Generator
Manufacturer: Radio-Energie
Type: Direct Current Tachometer Generator
Model: RE0.444R
Part No: 661607
Current: 0.18 A
Max. Speed: 5000 rpm
Driving Torque: 1.5 Ncm
Time Constant: 2.5 ms
Voltage Gradient: 0.06 V/RPM
Flange Diameter: 115 mm
Shaft Dimension: 30 X 11 mm
Filter:
Time Constant: 0.47 ms
Load Current: 5 mA
Nominal Speed: 3000 rpm
No. of Poles: 2
Armature slots number: 19
Commutator blades number: 57
Operating Temperature: -30 … 130 °C
Degree of protection: IP54, IP56
Dimension: 136 X 115 X 128.5 mm
