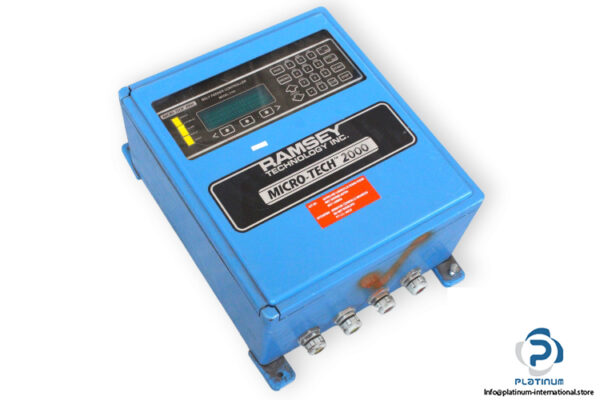

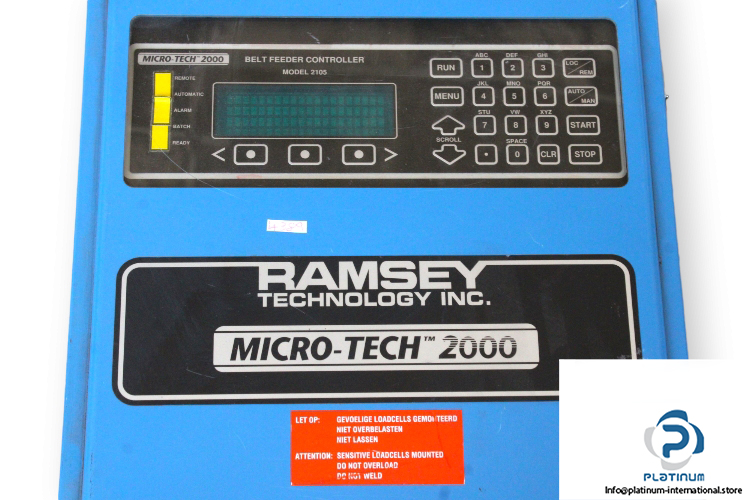

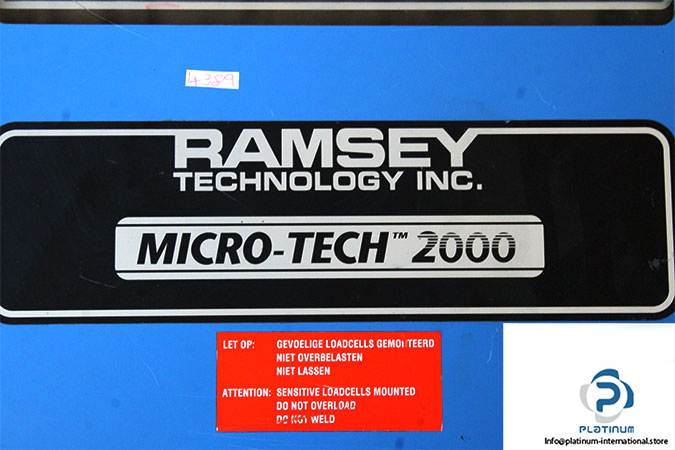

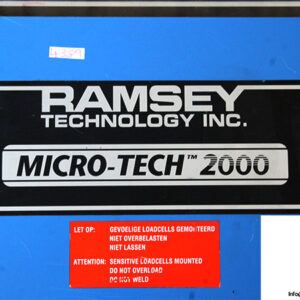

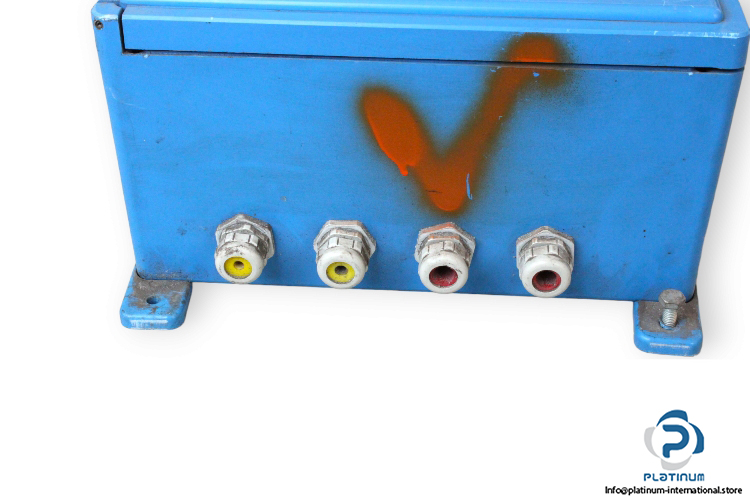

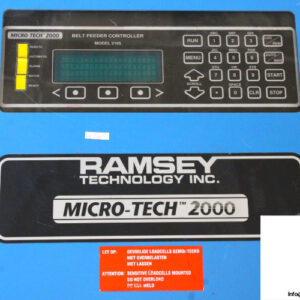

Ramsey Micro-Tech 2000 Electronic Integrator
Manufacture: Ramsey
Type: Electronic Integrator
Model: MICROTECH2000
Application:
used for deriving rate and quantity of flowing material from signals representing the weight of a segment (pounds/foot) of moving material and its velocity (feet/minute)
Features:
• Menu driven scroll entries on a four-line display
• Five LED status indicators
• Visible and electrical outputs representing rate or load of the material movement
• Visible and electrical output representing total amount of material that has passed the weighbridge
• Automatic zero and span calibration
• Auto zero tracking
• Several software options that may be turned on by keyboard entry or by installing optional plug-in PC boards
• Optocoupled digital inputs and outputs
• Alarms and failure detection
• Communication standards: RS232C, RS485 networking and multidrop, 20 mA current loop passive
• Allen-Bradley remote I/O
• PROFIBUS-DP
Power Consumption: 50 VA max
Nominal frequency: 50/60 Hz
Operation temperature: -10 … +50° C
Pollution degree: 2
