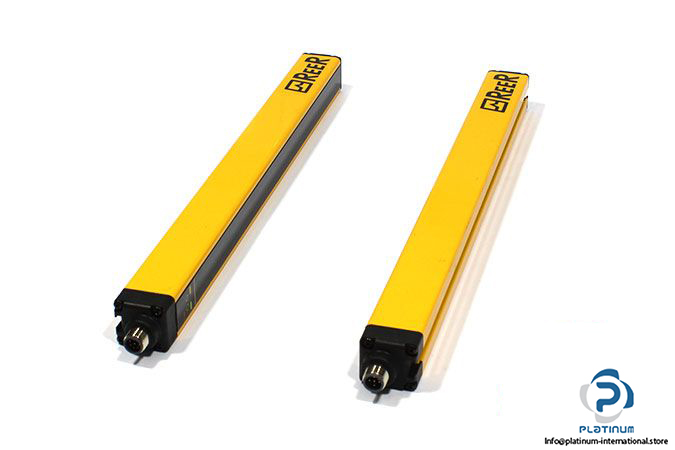

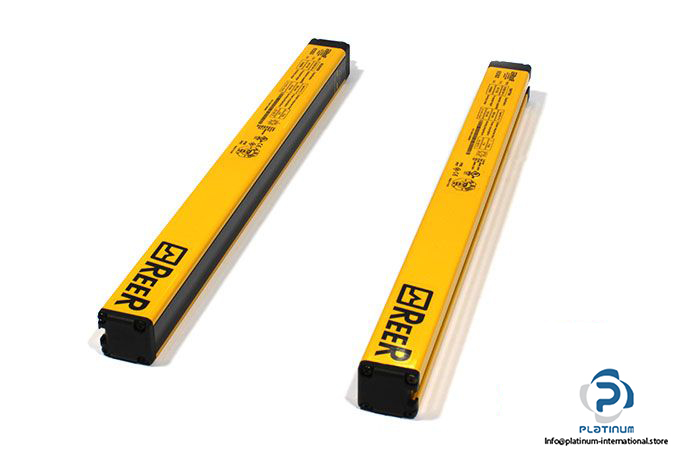

Reer EOS2 304 X Hand Detection Safety Light Curtain
Manufacturer: Reer
Type: Hand Detection Safety Light Curtain
Model: EOS2 304 X
Part No: 1320311
Order No: 15482608
Power Supply: 24 ± 20% VDC
Signaling: LEDs for light curtain’s status and diagnostics
Response Time: 5 ms
Minimum Detectable: 12 mm
Max. Range: 12 m
Protected Height: 310 mm
Resolution: 40 mm
Controlled Height: 300 mm
Safety Level: Type 2 – PL c
Restart: Built-in – User Selectable Automatic or Manual
Number of Beams: 11
Electrical Design: PNP
Cross Section: 28 x 30 mm
Max. Length of The Connection Cables: 100 m (50 between Master and Slave)
Safety Output Type: 2 Fail-Safe PNP
Safety Outputs: 2 OSSD PNP (400 mA at 24 VDC)
Operating Temperature: -30…55°C
Connection: M12 5-Pole Connector (Emitter), M12 8-Pole Connector (Receiver)
Protection Class: IP65-IP67
Packaging Dimensions: 145 x 390 x 200 mm
Weight: 1.47 kg

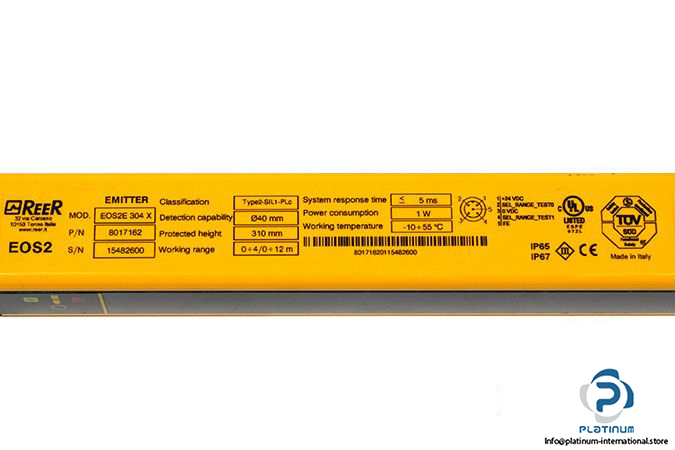

Consist of: REER EOS2E 304 X EMITTER
Manufacturer: Reer
Type: Emitter
Model: EOS2E 304 X
Part No: 8017162
Detection Capability: Ø40 mm
Protected Height: 310 mm
Working Range: 0÷4/0÷12 m
System Response Time: ≤ 5 ms
Power Consumption: 1 W
Connection: 5-pin
Operating Temperature: -10…55 °C
Protection Class: IP65-IP67

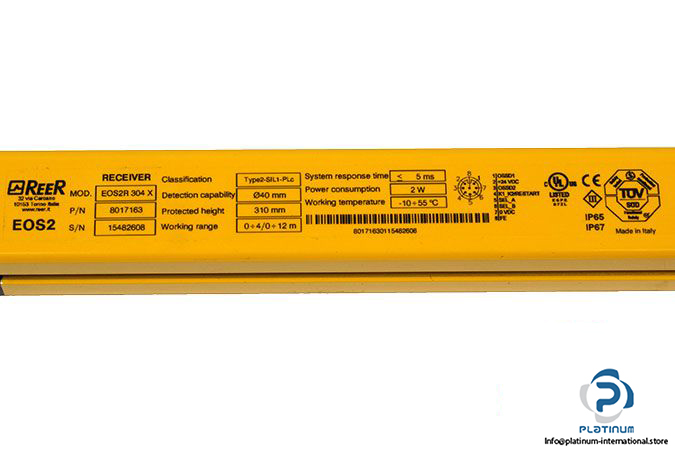

REER EOS2R 304 X RECEIVER
Manufacturer: Reer
Type: Receiver
Model: EOS2R 304 X
Part No: 8017163
Detection Capability: Ø40 mm
Protected Height: 310 mm
Working Range: 0÷4/0÷12 m
System Response Time: ≤ 5 ms
Power Consumption: 2 W
Connection: 8-pin
Operating Temperature: -10…55 °C
Protection Class: IP65-IP67
