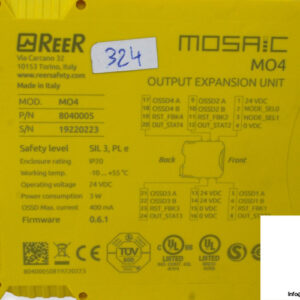

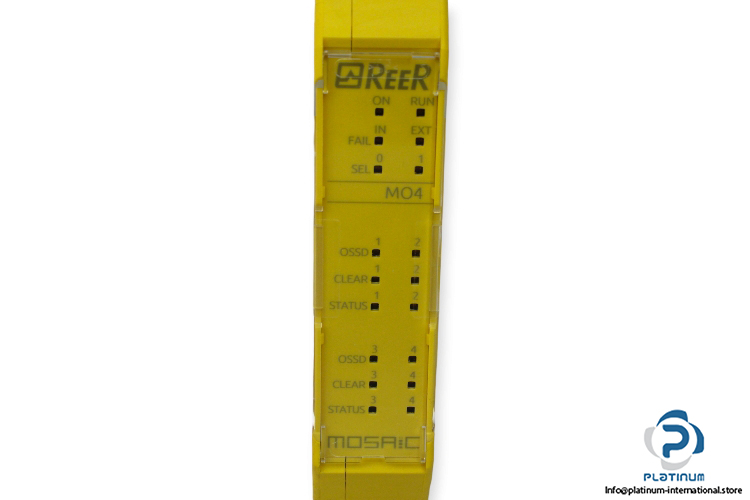

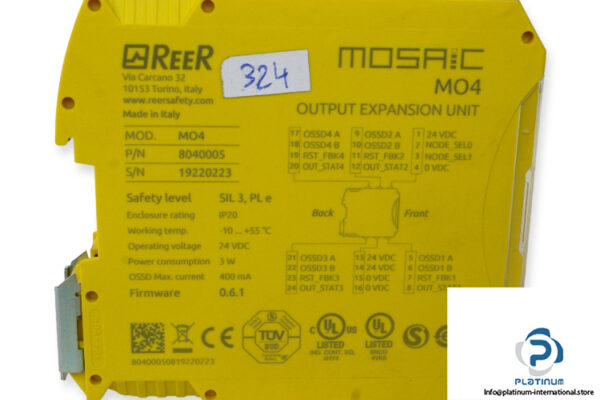

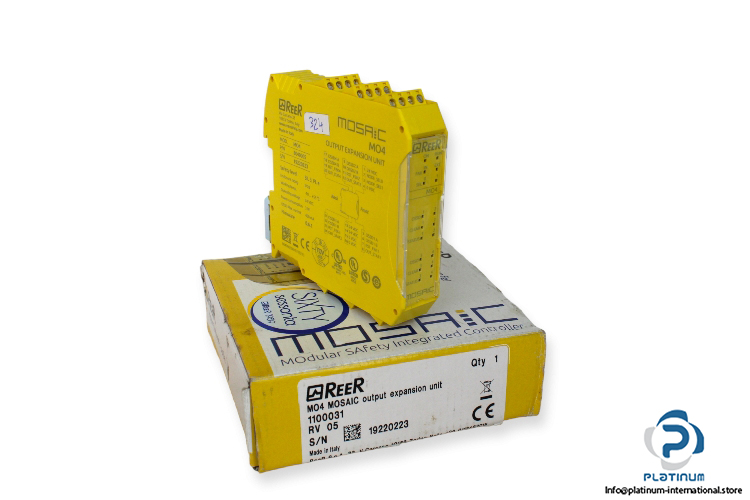

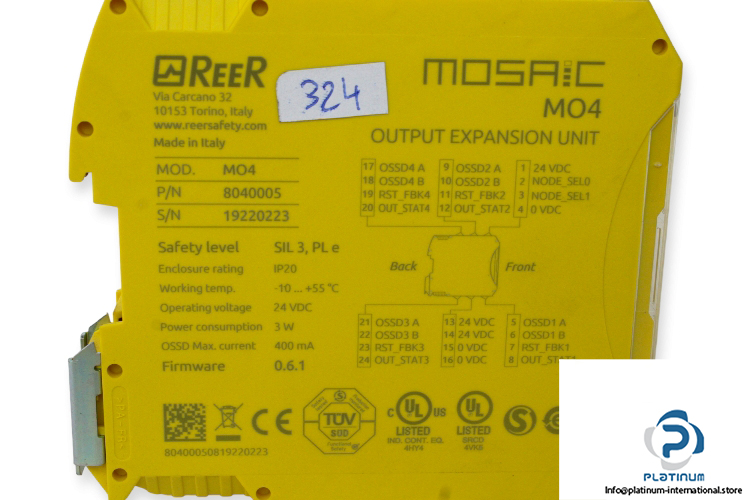

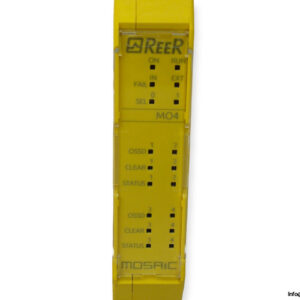

Reer Mosaic MO4 Safety Outputs Expansion Unit

Manufacturer: Reer, Mosaic

Type: Safety Outputs Expansion Unit

Model: MOSAIC MO4

Part No.: 8040005

Safety level: SIL 3,PL e

Power supply: 24 ± 20% V DC

OSSD current max.: 400 mA

Power consumption: 3 W

Safety output type: 4 pairs OSSD PNP (400 mA at 24 VDC)

Connections: Removable terminal blocks, screw contacts

Degree of protection: IP20

Fastening: 35 mm DIN rail fastening

Operating temperature: -10 … 55 °C

Dimensions: 108 x 22.5 x 114.5 mm
