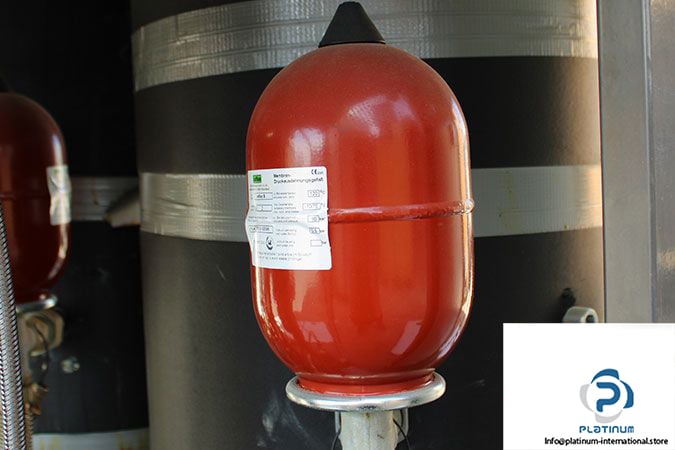

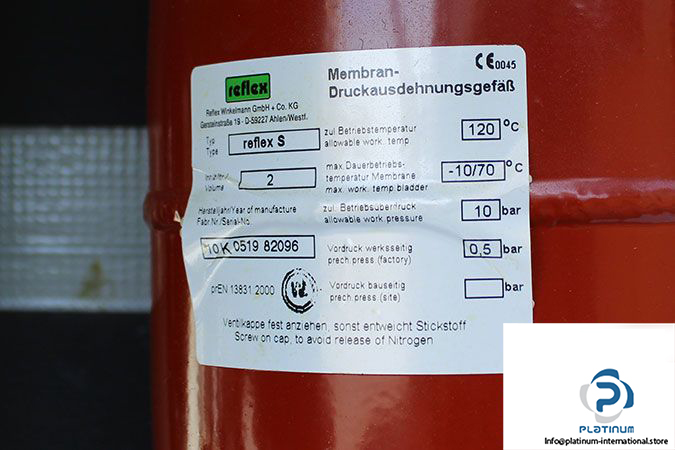

Reflex Winkelmann Reflex S 2 Expansion Vessel

Manufacturer: Reflex Winkelmann

Type: Expansion Vessel

Model: REFLEX S 2

Art No: 8707700



Nominal Volume: 2 l

Max. Useful Volume: 1,6 l

Max. Perm. Operating Pressure: 10 bar

Factory Provided Gas Supply Pressure: 0.5 bar

Connection: G¾”

Max. Permissible System Temperature: 120 °C

Max. Perm. Operating Temperature: 70 °C

Protection Class: IP44

Diameter: 132 mm

Height: 260 mm

Tilt Dimension Approx.: 292

Weight: Approx 0.98 kg
