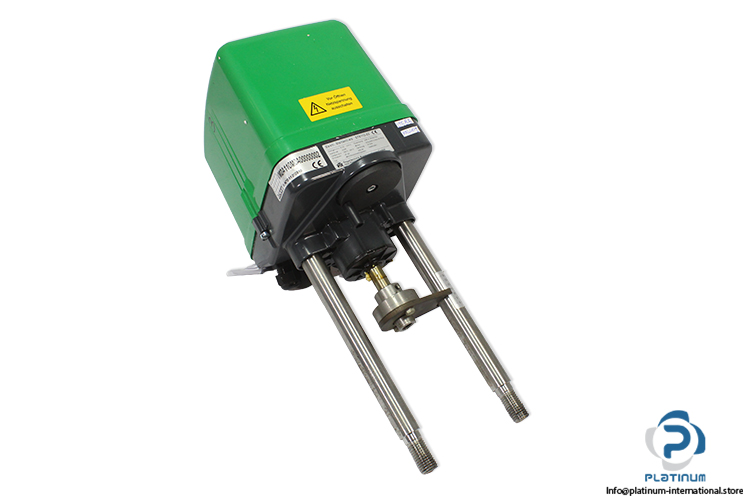

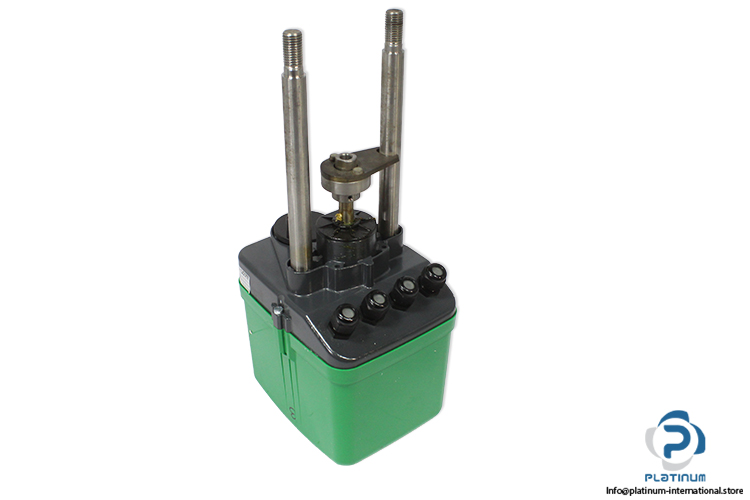

Regeltechnik Kornwestheim RTK ST5112-32 Electric Actuator
New
In stock1 unitReady to ship
888,88$
Electric Actuator Industrial electric actuator with 40 mm maximum stroke, 3 kN actuating force, 230 V AC supply, and IP65 protection, suitable for precise valve control and automation applications.
2303ACActuatorAutomationControlDpdtElectricIndustrialIP65kNKornwesLinearMotionRegeltechnikRTKST5112-32VValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Alternative Model | MKEBA0D00FE00H0U |
| WE No. | 12603301 |
| Stroke Length ¬Max. | 40 mm |
| Positioning Speed | 0.26 mm/s |
| Supply Voltage | 230 V AC |
| Frequency | 50 … 60 Hz |
| Power | 11 VA |
| Actuating Force | 3 kN |
| Motor Rating | 375/450 U/min, 0.33 micro |
| Contact | DPDT 2 Changeover (CO) |
| Protection Class | IP65 |
| Temperature | -20 … 60 °C |
| Condition | New |
| SKU | 1092764 |
| Weight | 4,40 |
