Reliance CS Gear Motor
Used
In stock1 unitReady to ship
Gear Motor
RELIANCE CS Gear Motor is a high-performance industrial motor operating at 1425 RPM with a rated power of 176 HP. Attached with the RELIANCE 415726-HW Speed Reducer, it provides a 5:1 ratio and 214 in-lb torque for precision-driven applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

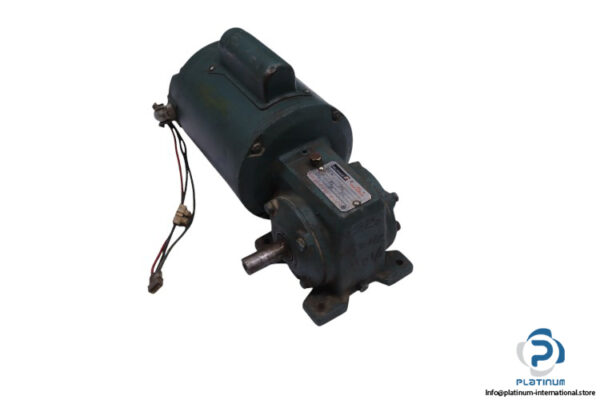

RELIANCE CS Gear Motor with Speed Reducer
The RELIANCE CS Gear Motor is a high-performance motor designed for industrial applications requiring precision, efficiency, and durability. Engineered for optimal performance, it delivers a rated power of 176 HP and operates at 1425 RPM with a rated voltage of 115/230V. It is designed to withstand demanding conditions with a 40°C ambient temperature rating and Class A insulation.
This motor is attached with the RELIANCE 415726-HW Speed Reducer, providing enhanced torque output and efficiency. With a service factor of 1 and a ratio of 5, it ensures smooth operation with an input speed of 1750 RPM and a maximum power capacity of 1.38 HP.

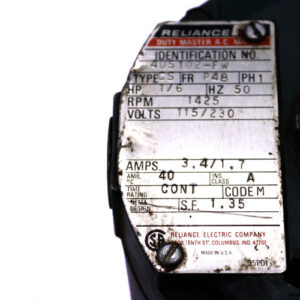

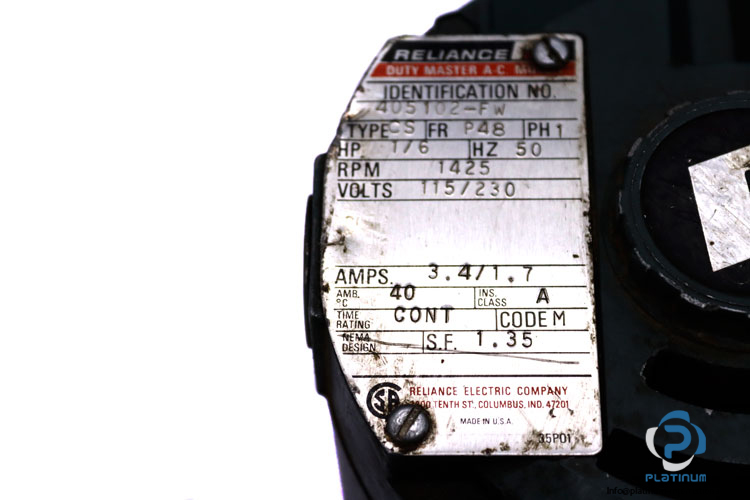

- Manufacturer: RELIANCE
- Type: Gear Motor
- Model: CS
- Ident No: 405102-FW
Technical Specifications
- Rated Voltage: 115 / 230 V
- Rated Speed: 1425 RPM
- Rated Frequency: 50 Hz
- Rated Power: 176 HP
- Rated Current: 3.4 / 1.7 A
- Ambient Temperature: 40°C
- Insulation Class: A

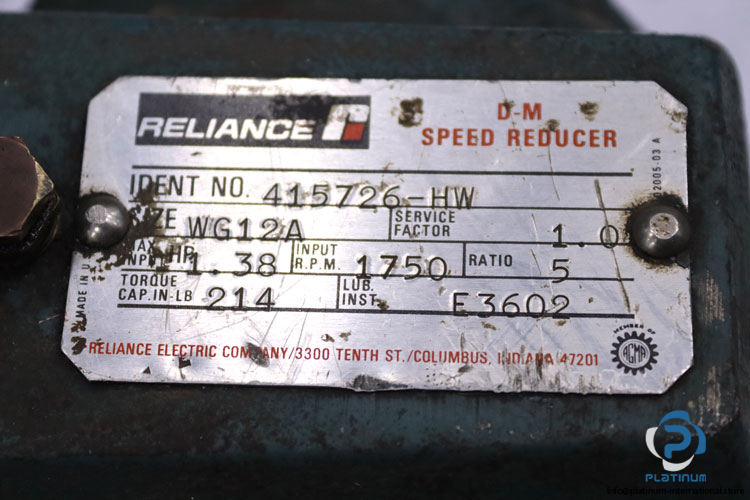

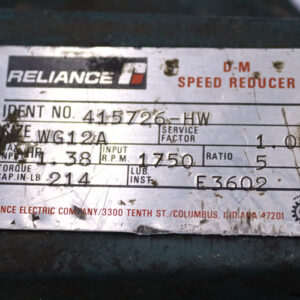

Speed Reducer Specifications
- Attached With: RELIANCE 415726-HW Speed Reducer
- Size: WG12A
- Service Factor: 1
- Ratio: 5
- Input Speed: 1750 RPM
- Max Power: 1.38 HP
- Torque: 214 in-lb
