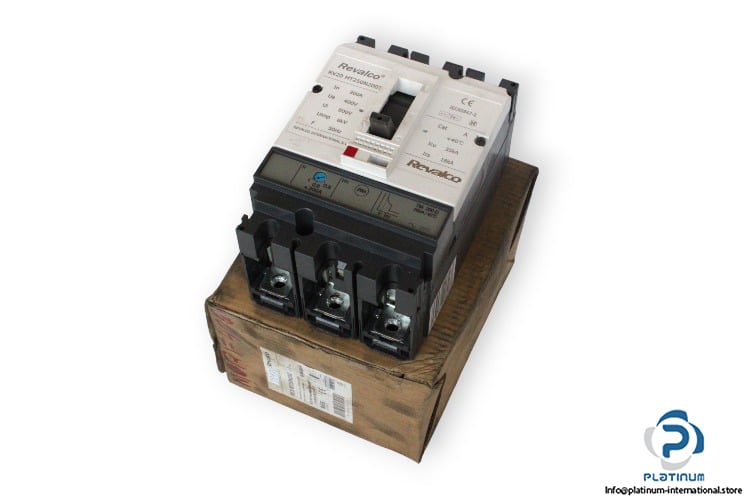

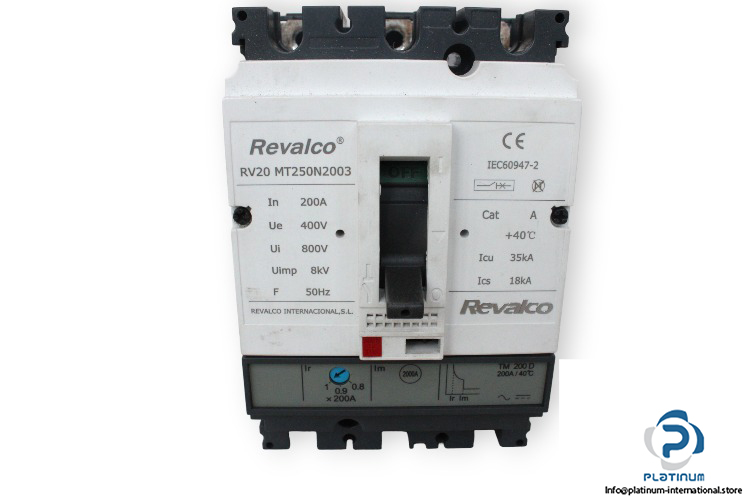

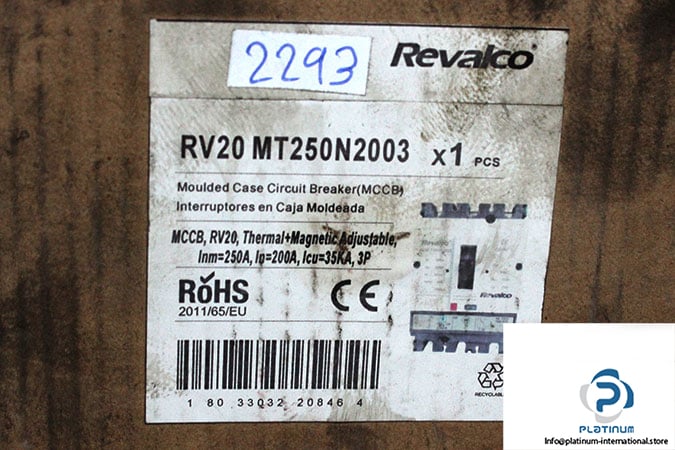

Revalco RV20 MT250N2003 Circuit Breaker

Manufacturer: Revalco

Type: Circuit Breaker

Model: RV20 MT250N2003



Breaking capacity Icu: 35 KA

Service breaking capacity Ics: 18 kA

Regulation: 160 … 200 A

Nominal structural current max: 250 A

Adjustable thermal threshold Ir: 0.8 … 1 In

Rated insulation voltage Ui: 800 V

Rated voltage Ue: 400 V

Nominal Current In: 200 A

Rated impulse withstand voltage (Uimp): 8 kV

No. of poles: 3

Frequency: 50 Hz

Temperature: 40 °C

Dimensions: 140 x 105 x 105 mm
