REXNORD 05B-2 Duplex Metric Roller Chain

Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 05B-2

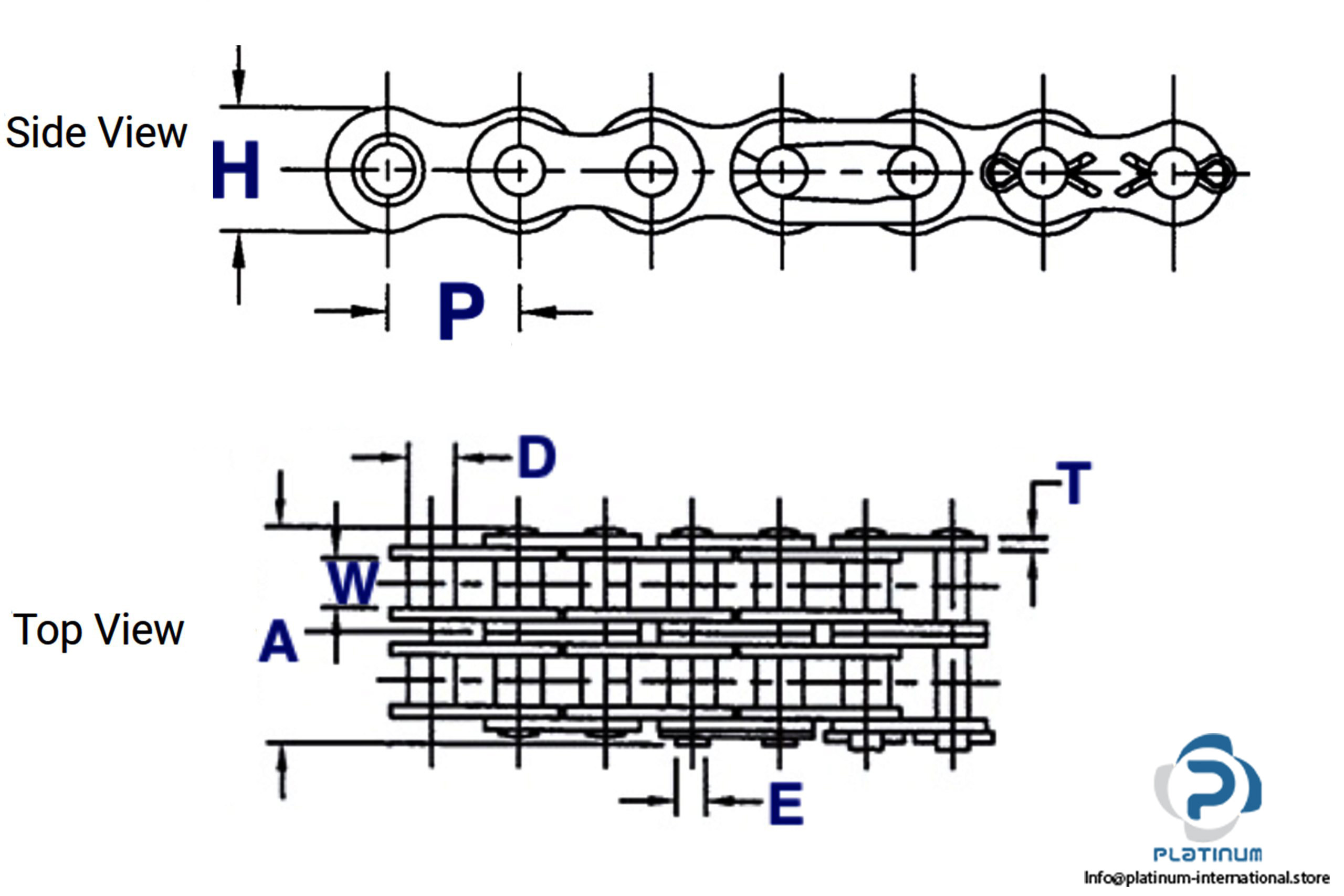

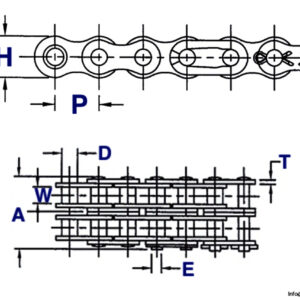

DIN/ISO 606
Chain no. 05B-2
PitchP: 8.00mm
Roller diameter D1: 5.0mm
Roller Width (W): 3.0mm
Pin Diameter E: 2.31mm
Plate Height (H): 7.1mm
Transverse Pitch (T): 5.64mm
C/L Width (A): 14.5mm
Breaking Load: 10.2 kN
Weight (Per Ft): 0.36 kg/m
