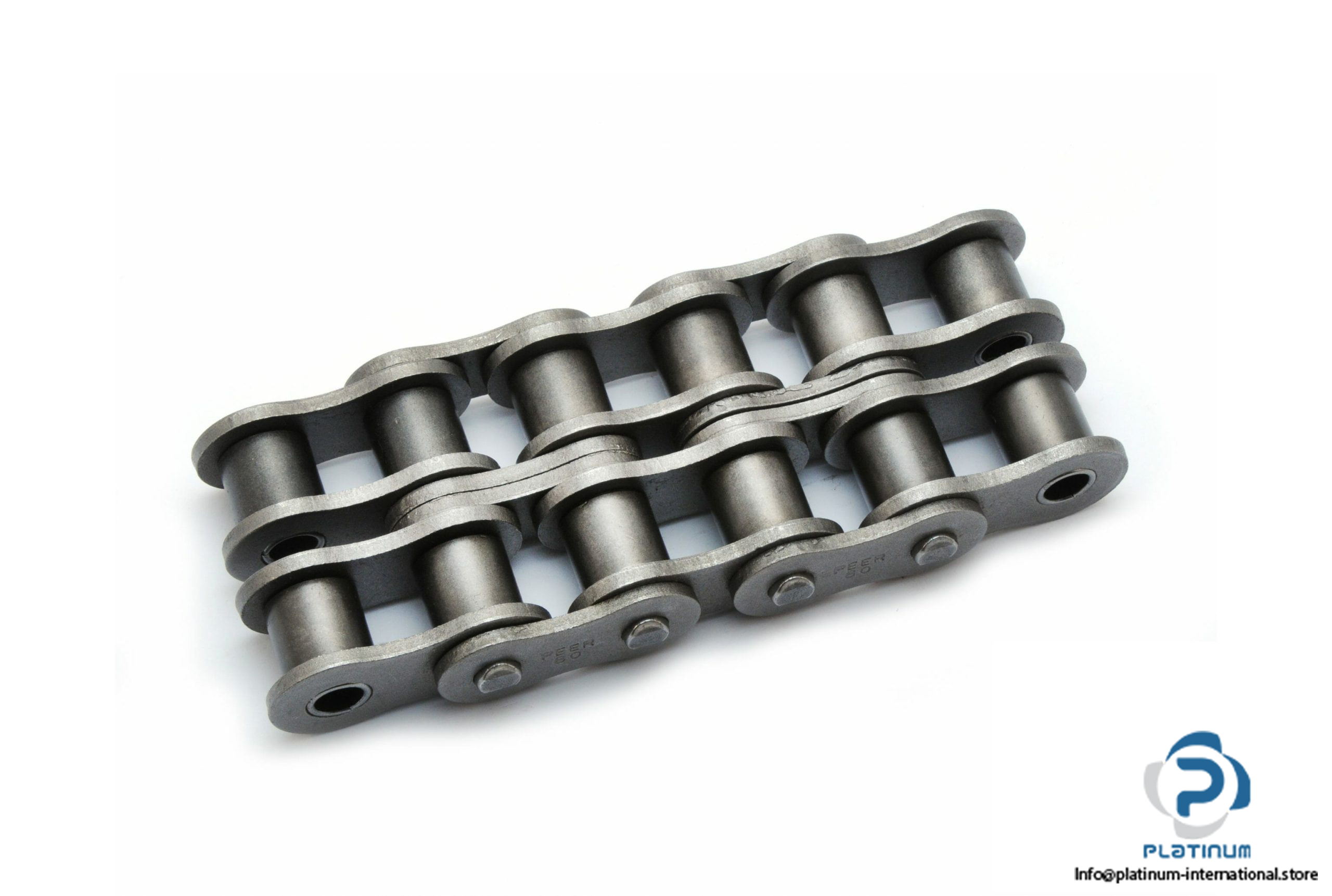

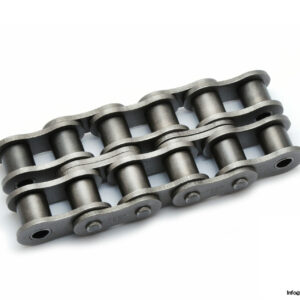

REXNORD 08B-2 Duplex Metric Roller Chain

Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 08B-2

DIN/ISO 606
Chain no. 08B-2

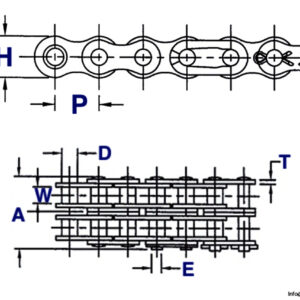

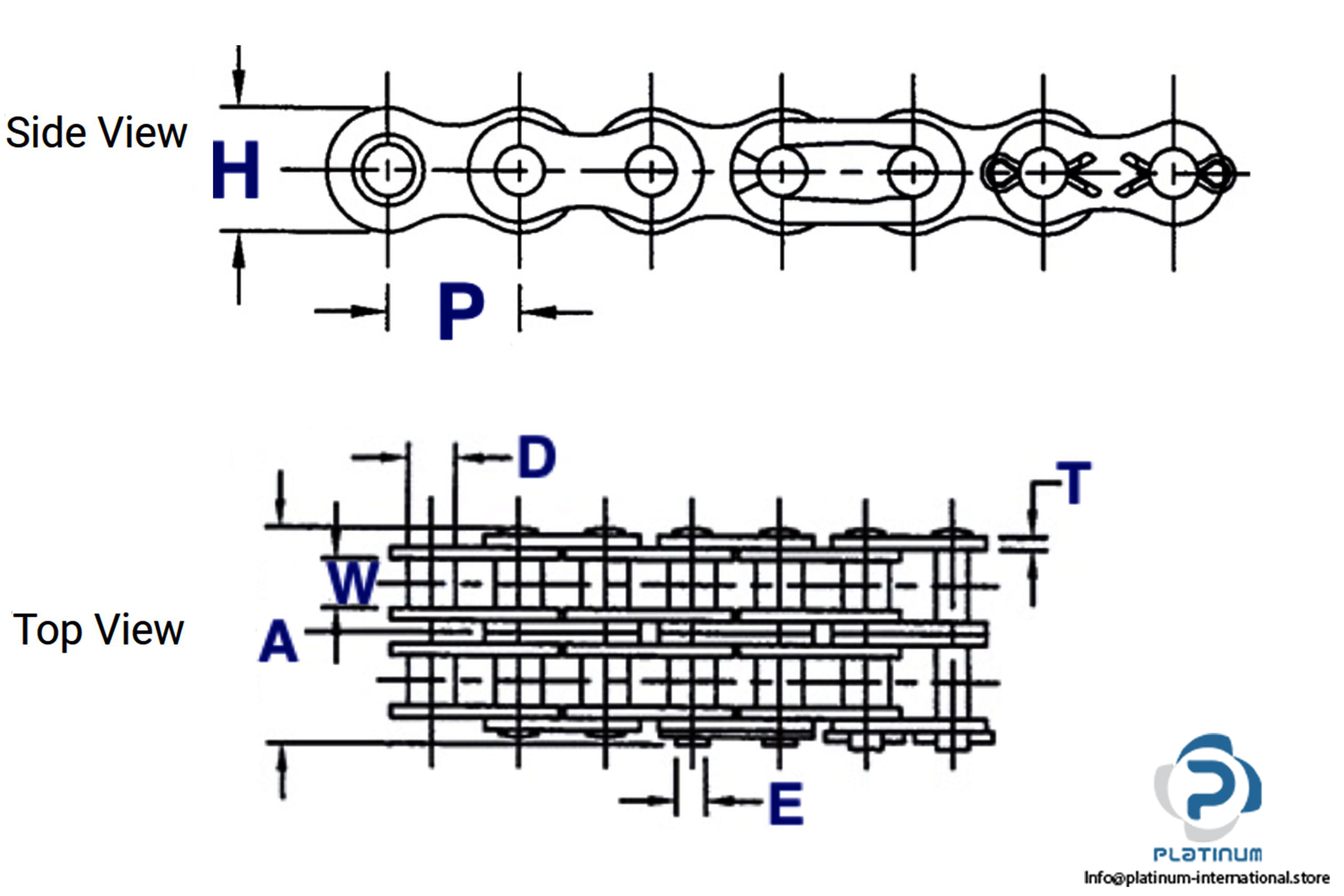

PitchP: 12.7mm
Roller diameter D1: 8.51mm
Roller Width (W): 7.75mm
Pin Diameter E: 4.45mm
Plate Height (H): 11.8mm
Transverse Pitch (T): 13.92mm
C/L Width (A): 32.2mm
Breaking Load: 38.7 kN
Weight (Per Ft): 1.0 kg/m
