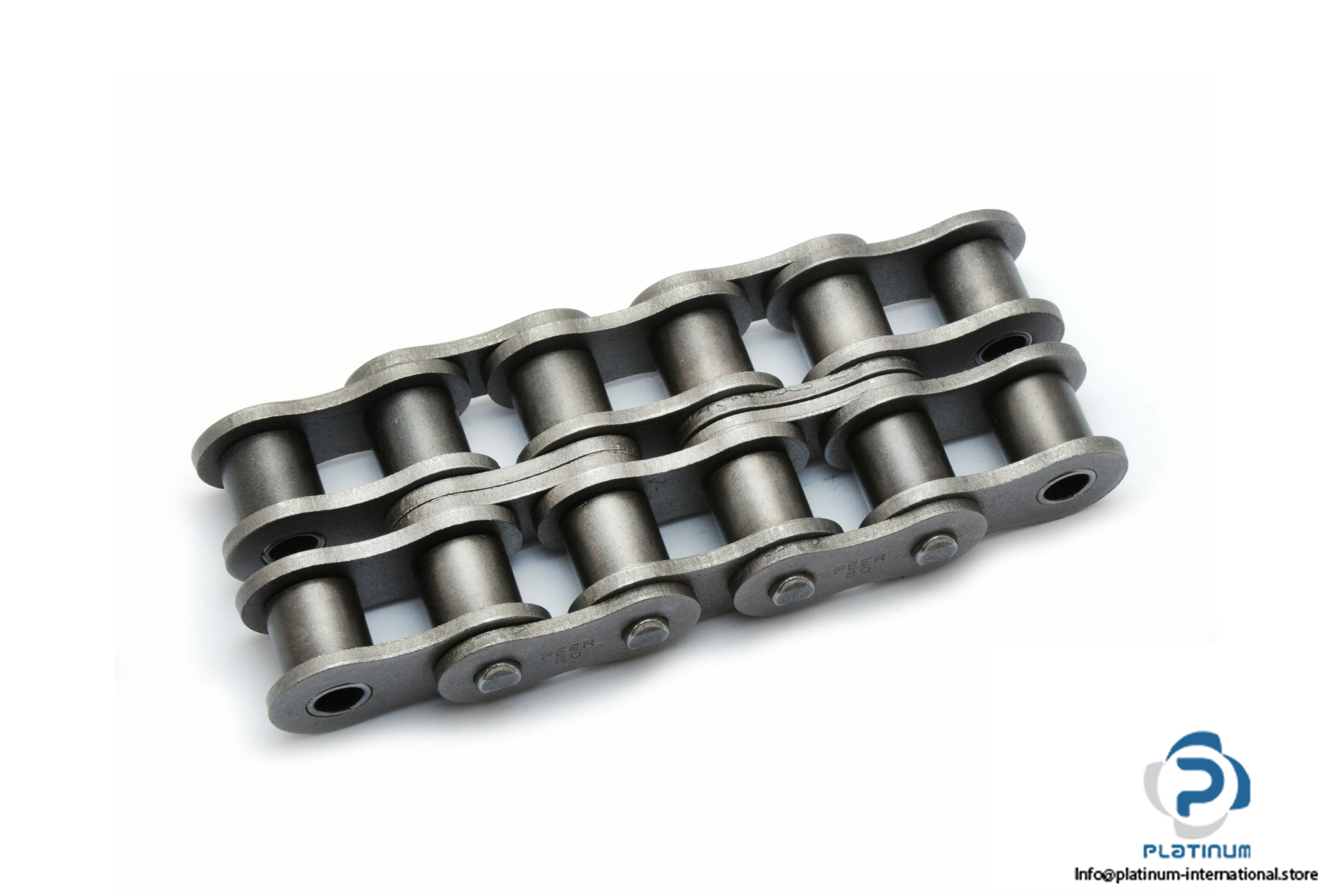

REXNORD 10B-2 Duplex Metric Roller Chain

Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 10B-2

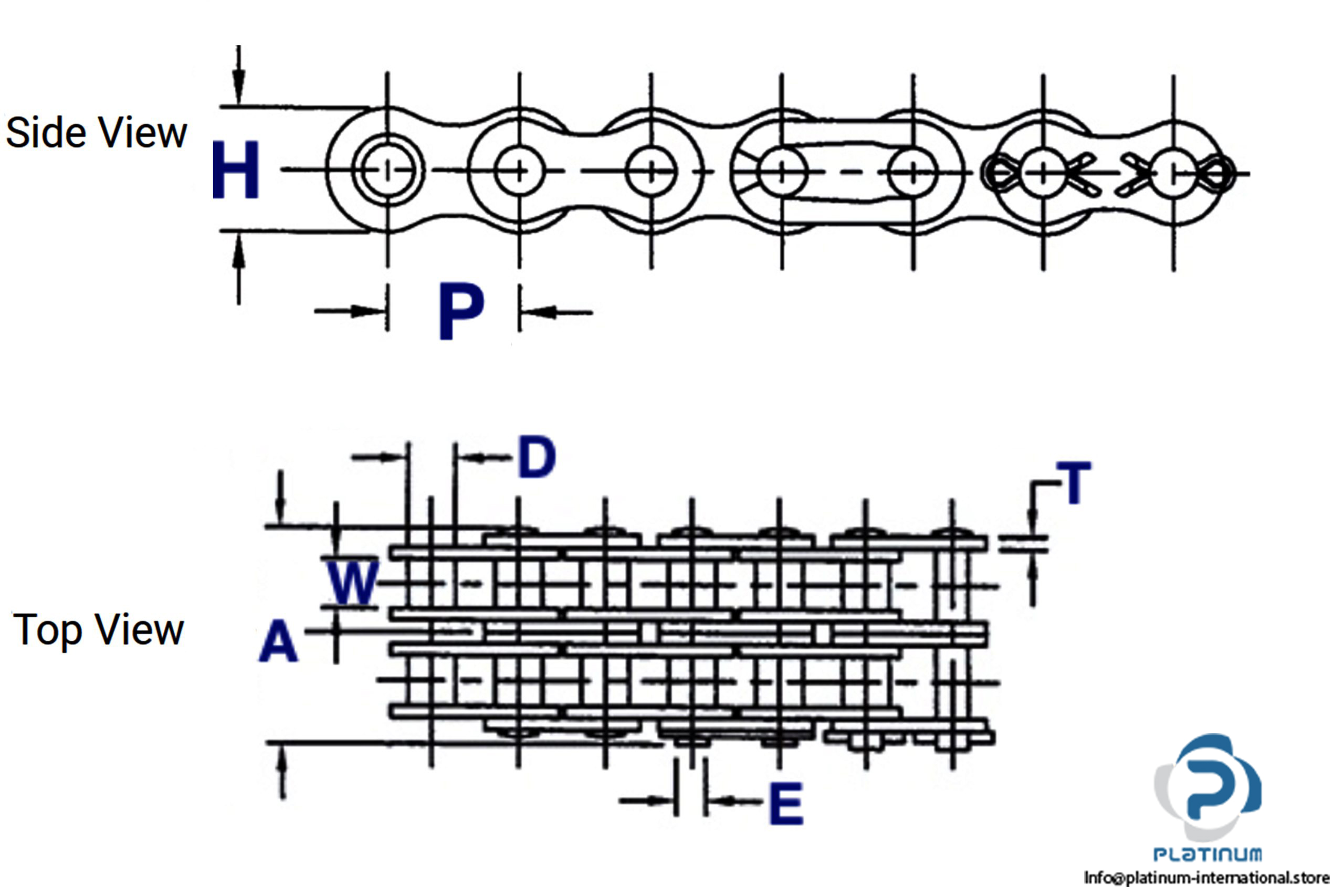

DIN/ISO 606
Chain no. 10B-2
PitchP: 15.875mm
Roller diameter D1: 10.16mm
Roller Width (W): 9.65mm
Pin Diameter E: 5.08mm
Plate Height (H): 14.7mm
Transverse Pitch (T): 16.59mm
C/L Width (A): 37.5mm
Breaking Load: 56.2 kN
Weight (Per Ft): 1.8 kg/m
