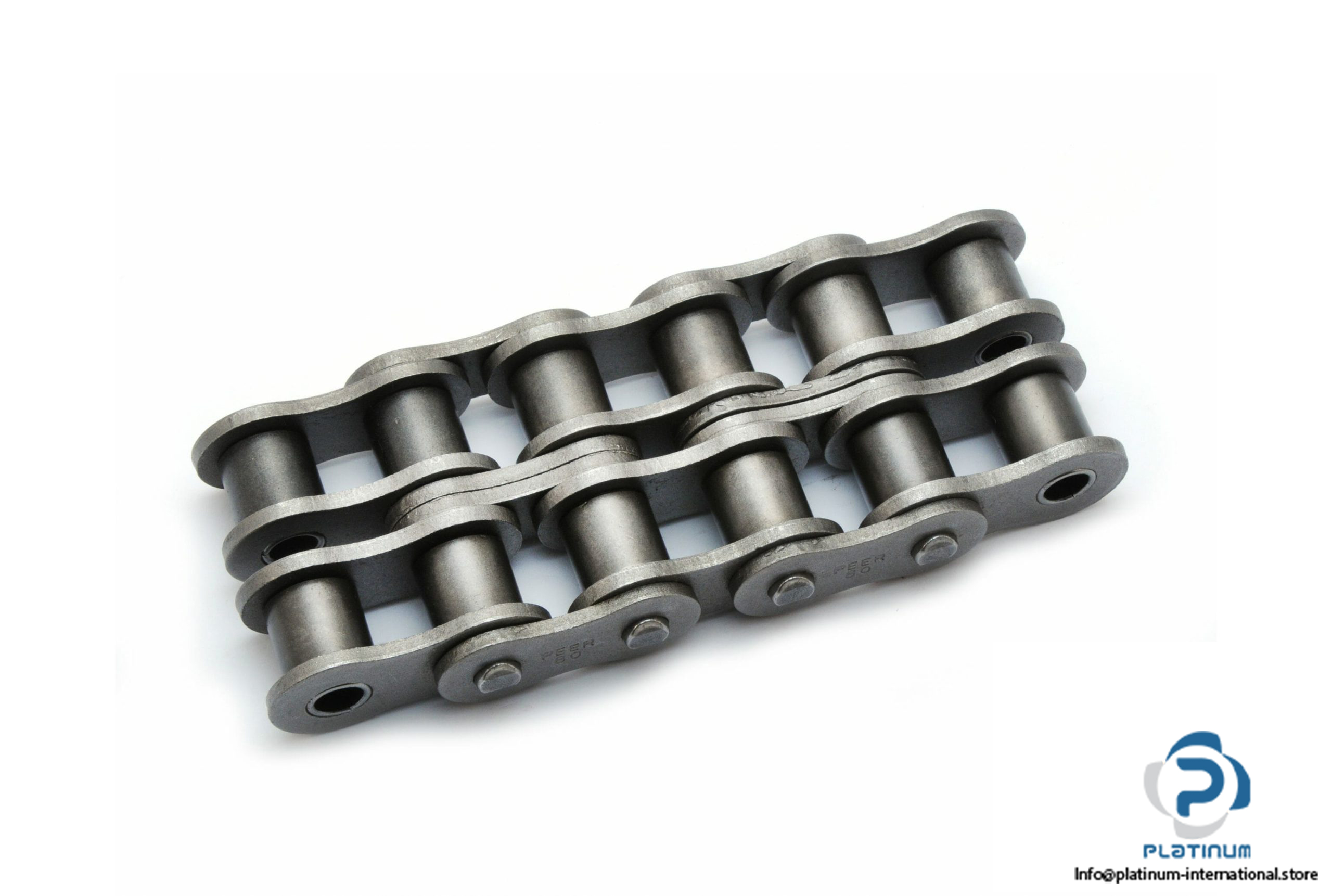

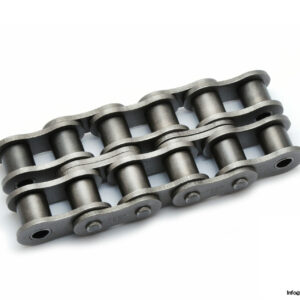

REXNORD 16B-2 Duplex Metric Roller Chain

Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 16B-2

DIN/ISO 606
Chain no. 16B-2

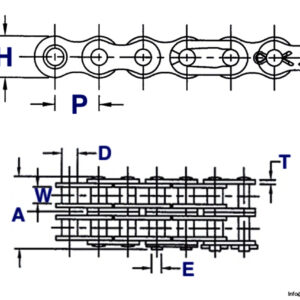

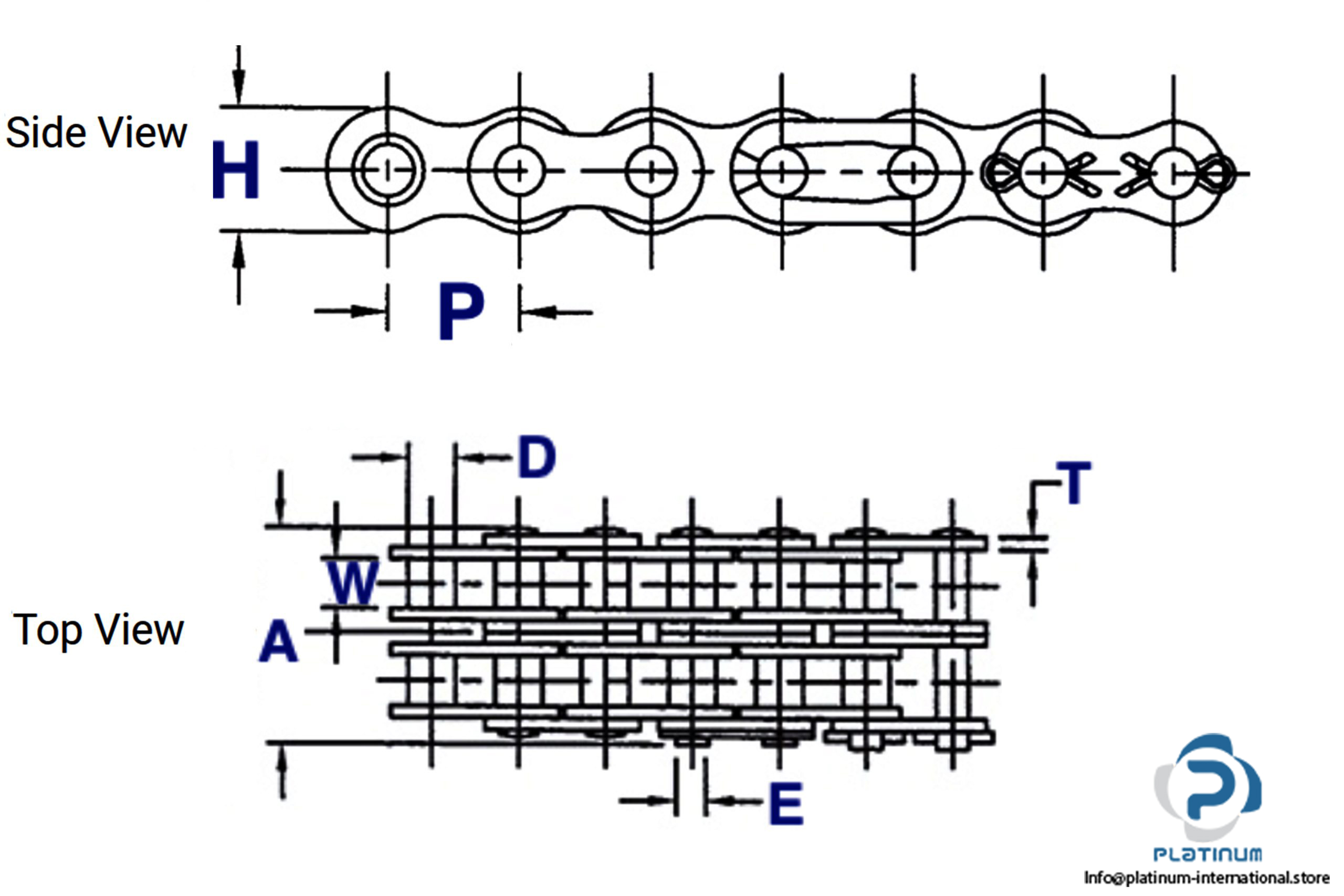

PitchP: 25.4mm
Roller diameter D1: 15.88mm
Roller Width (W): 17.02mm
Pin Diameter E: 8.28mm
Plate Height (H): 21.0mm
Transverse Pitch (T): 31.88mm
C/L Width (A): 69.3mm
Breaking Load: 133.0 kN
Weight (Per Ft): 5.4 kg/m
