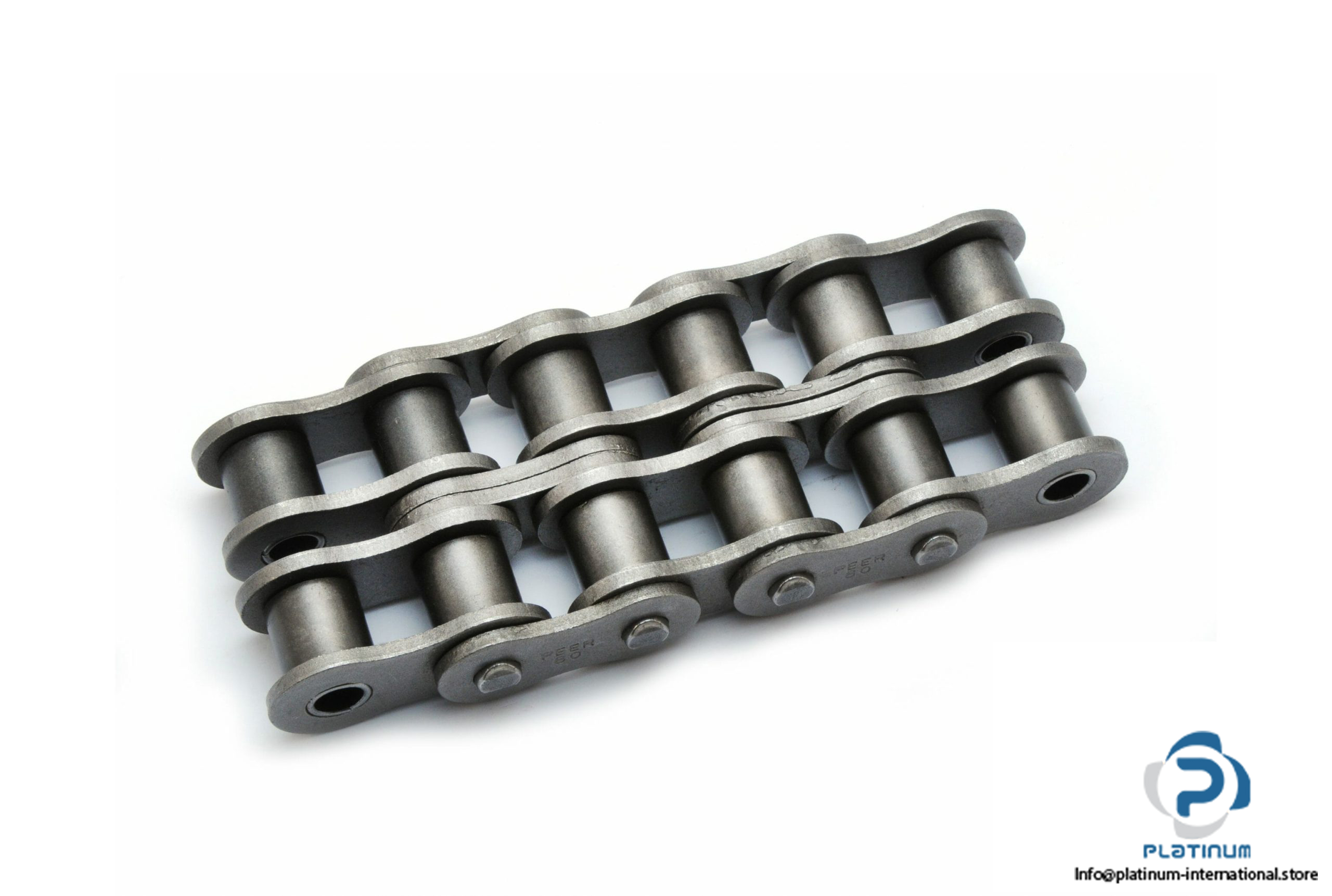

REXNORD 40B-2 Duplex Metric Roller Chain

Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 40B-2

DIN/ISO 606

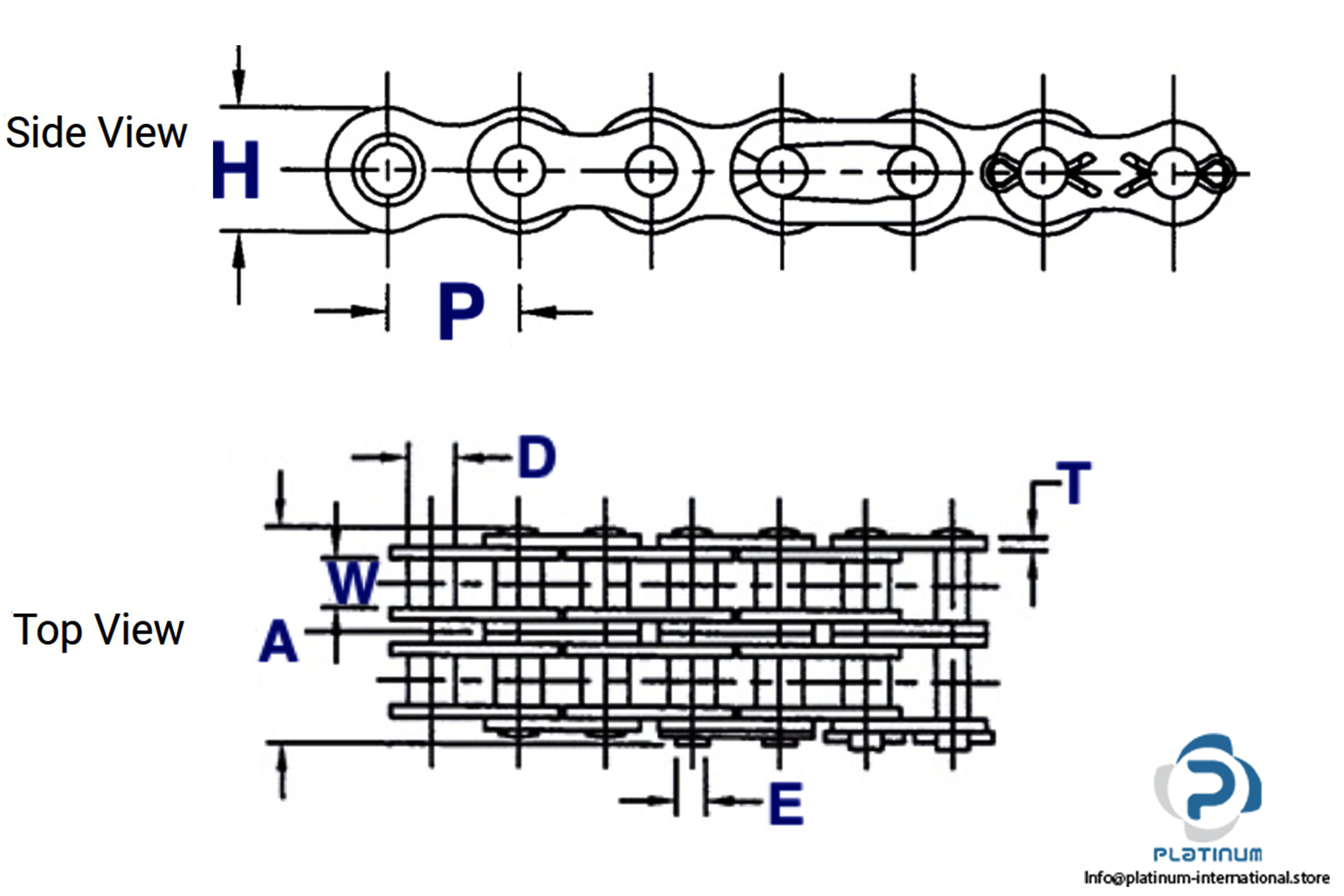

Chain no. 40B-2
PitchP: 63.5mm
Roller diameter D1: 39.37mm
Roller Width (W): 38.1mm
Pin Diameter E: 22.89mm
Plate Height (H): 52.9mm
Transverse Pitch (T): 72.29mm
C/L Width (A): 161.5mm
Breaking Load: 711.9 kN
Weight (Per Ft): 32.0 kg/m
