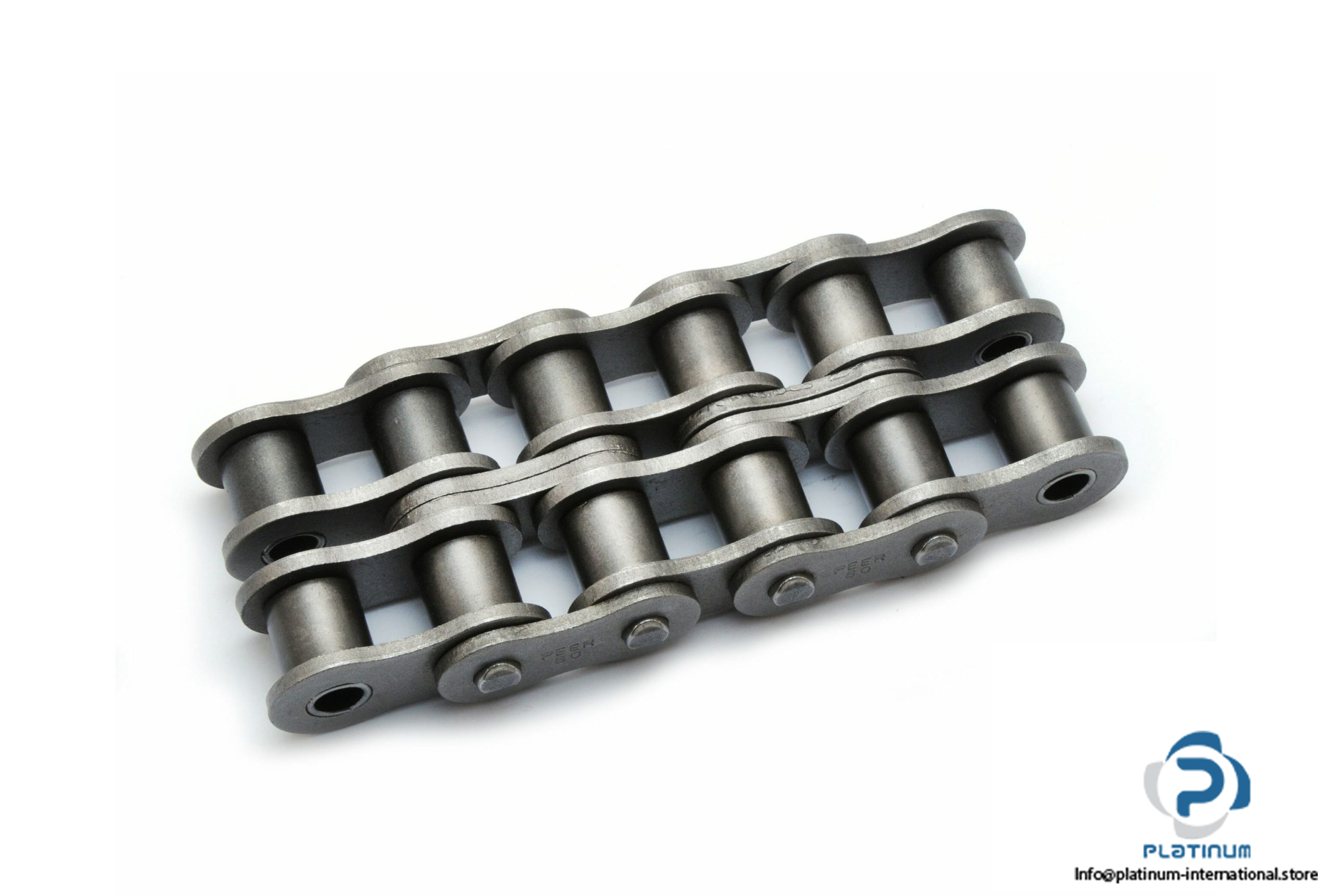

REXNORD 48B-2 Duplex Metric Roller Chain

Manufacturer: REXNORD
Type: Duplex Metric Roller Chain
Model: 48B-2

DIN/ISO 606
Chain no. 48B-2

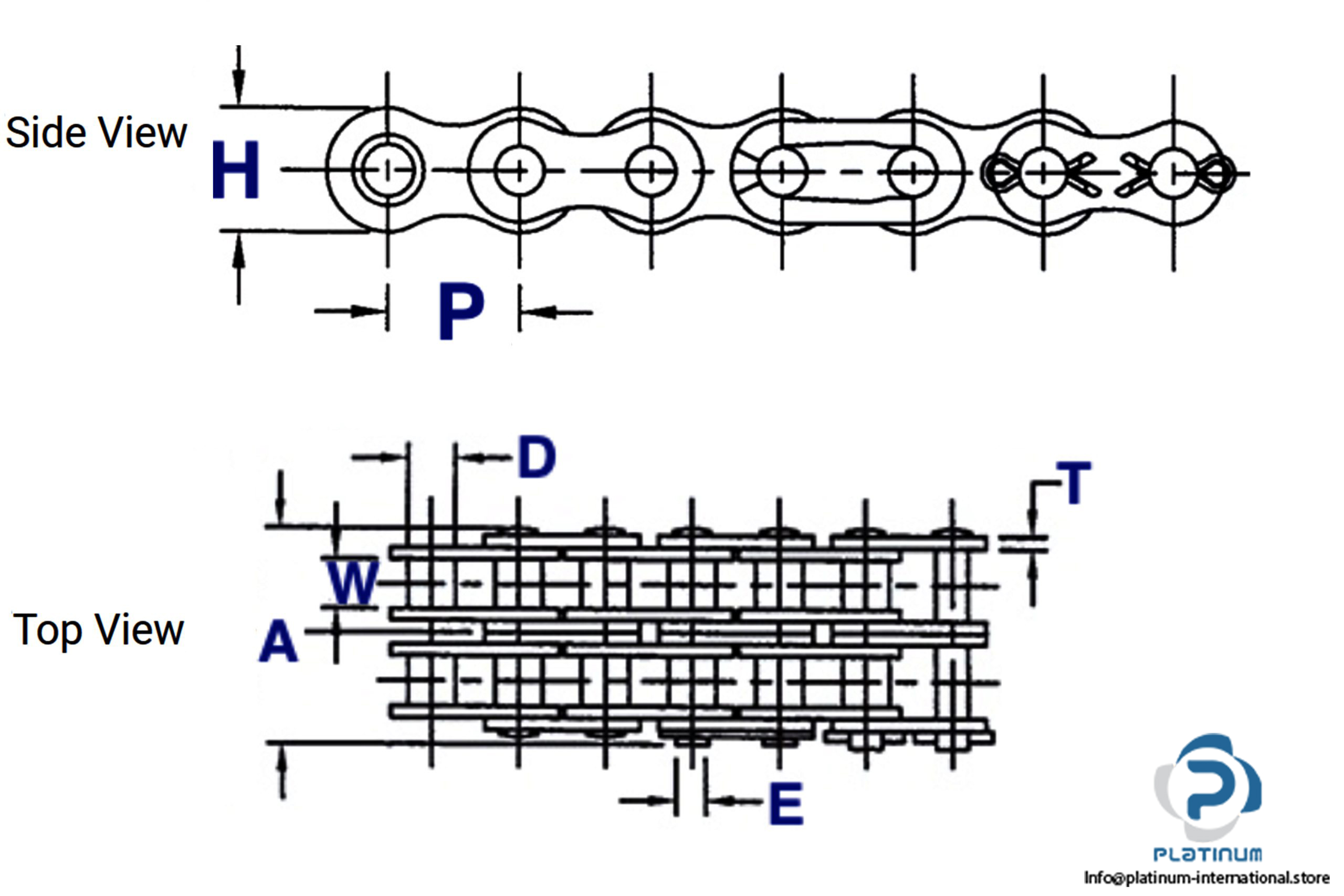

PitchP: 7.62mm
Roller diameter D1: 48.26mm
Roller Width (W): 45.72 mm
Pin Diameter E: 29.24mm
Plate Height (H): 63.8mm
Transverse Pitch (T): 91.21mm
C/L Width (A): 198.2mm
Breaking Load: 1130.0 kN
Weight (Per Ft): 50.0 kg/m
