Rexnord Viva 130 Long Coupling Element
New
In stock1 unitReady to ship
Long Coupling Element
Rexnord VIVA130 long coupling element, size 130, 164 Nm torque capacity, 5100 rpm speed rating, CE marked and EX certified for industrial drive applications. Recommended for high-performance motor and gearbox connections in demanding industrial environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rexnord VIVA130 Long Coupling Element
The Rexnord VIVA130 long coupling element is designed for efficient torque transmission and reliable performance in industrial drive systems. Engineered for precision alignment and stable rotation, it supports demanding mechanical applications.
Manufacturer: Rexnord
Type: Long Coupling Element
Model: VIVA130

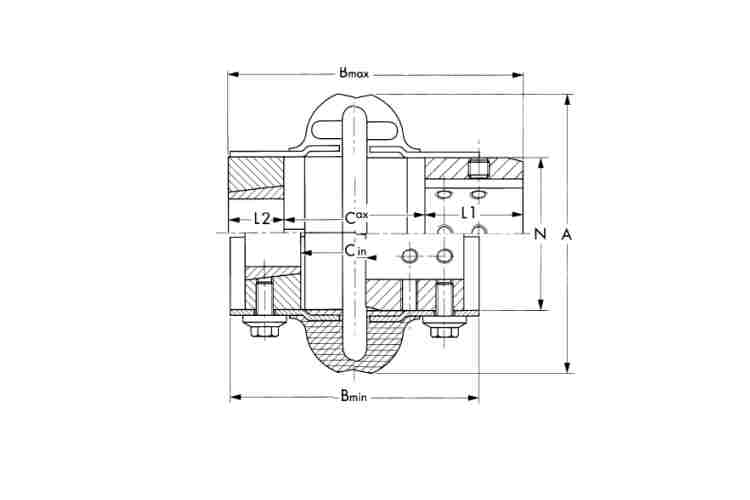

Dimensions
Suitable for industrial drive assemblies requiring controlled torque transmission and high rotational stability.
Please contact us via Ask for assistance with any inquiries.
| Size | 130 |
| Torque | 164 Nm |
| Speed | 5100 rpm |
| Outer Diameter D1 | 55 mm |
| Outer Diameter D2 | 35 mm |
| Moment of Inertia (J) | 0,00310 kgm2 |
| A | 130 mm |
| B | 97-142 mm |
| C1 | 7-55 mm |
| C2 | 35-55 mm |
| Length L1 | 41 mm |
| Length L2 | 25 mm |
| Dimension N | 80 mm |

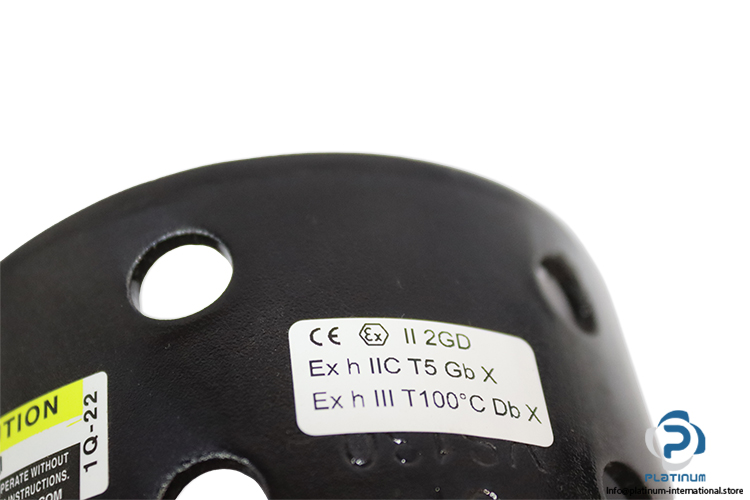

| Marking | CE |
| Explosion Protection | EX |
