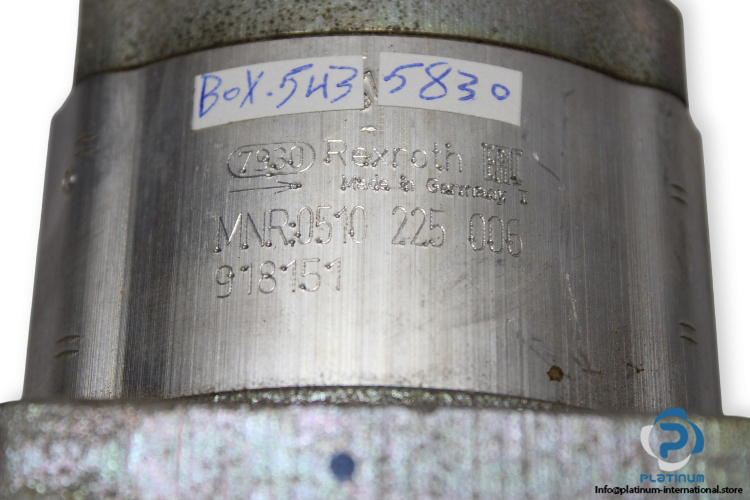

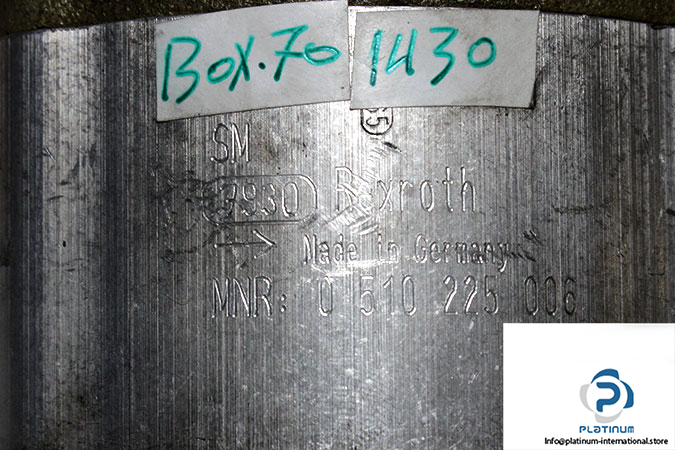

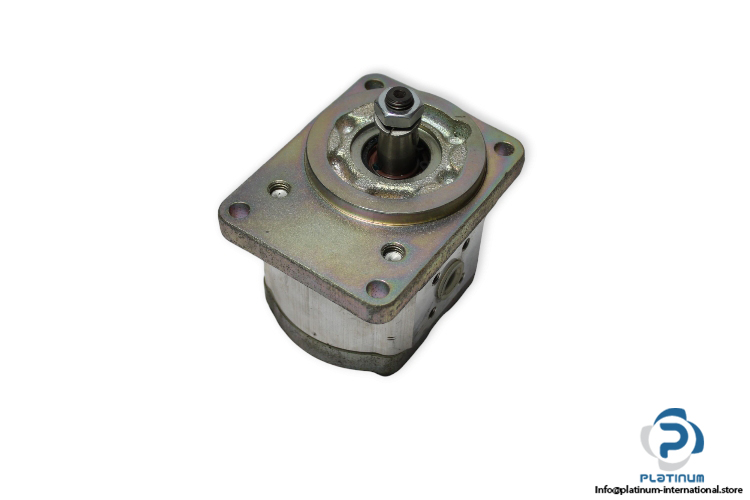

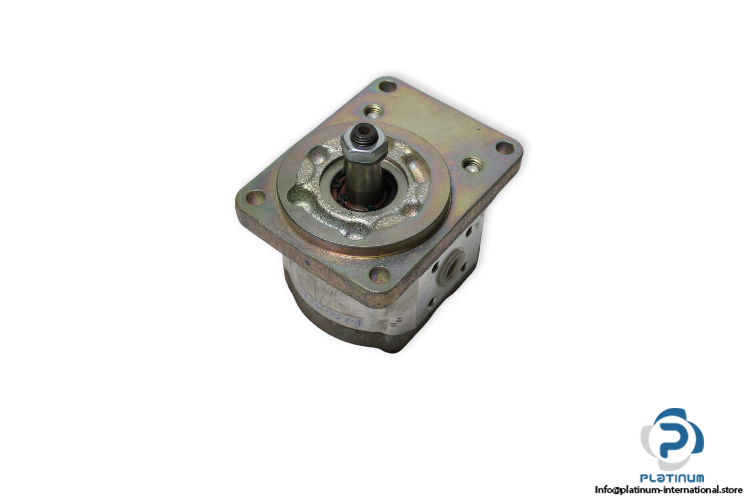

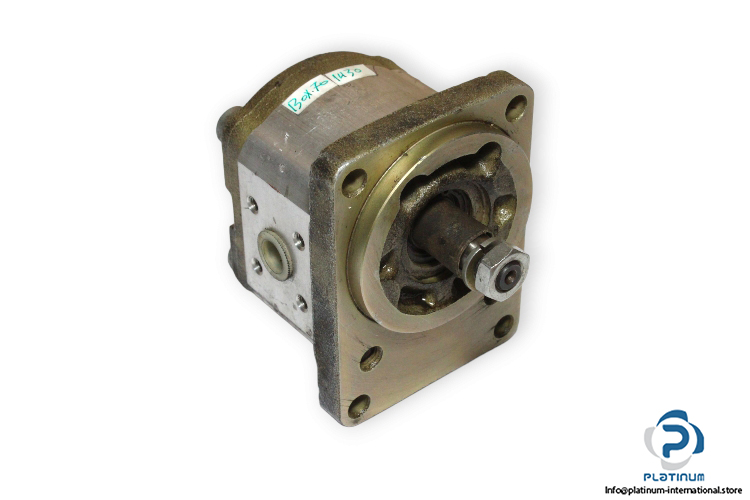

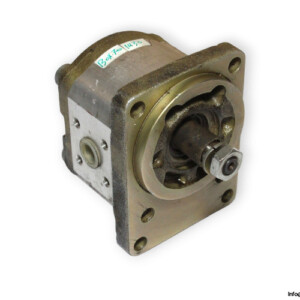

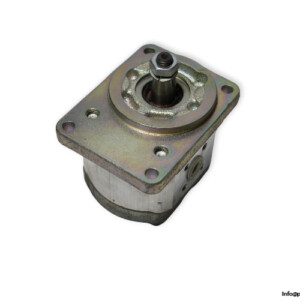

Rexroth 0 510 225 006 Gear Pump

Manufacturer: BOSCH REXROTH
Type: Gear Pump
Model: 0510225006

Media: Hydraulic oils on the basis of mineral oil
Conveyor volumes: 4,0 cm³/U
Delivery rate at 1450 rpm: 5,5 l/min
Continuous pressure max.: 250 bar
Operating range: Industry and mobile hydraulics
Mounting: 4-hole flange (72 x 100)
Centering diameter: 80
Drive shaft: Cone 1:5, M 12 x 1.5 (Ø 17 measured at rotary shaft outlet)
Suction connection: Flange (hole circle 40 with fastening thread M 6)
Pressure connection: Flange (hole circle 35 with fastening thread M 6)
Materials: Housing: Aluminium, mounting flange: Aluminium or steel,
seals: NBR
Temperature range, Medium: -15°C to +80°C
