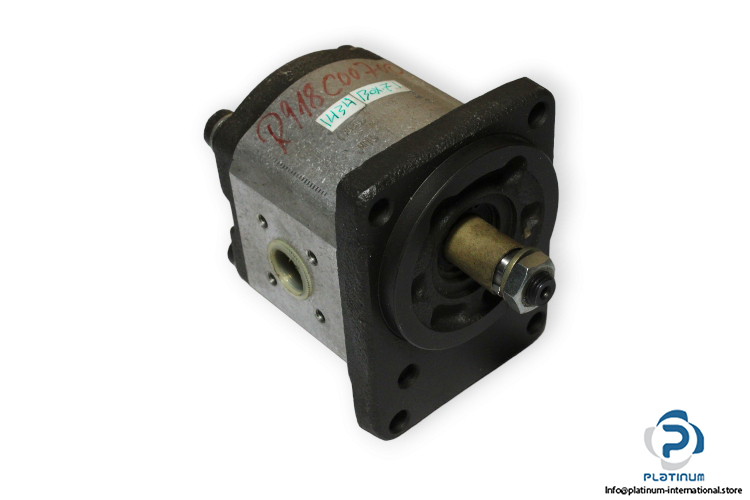

Rexroth 0 510 525 018 Gear Pump

Manufacturer: REXROTH
Type: Gear Pump

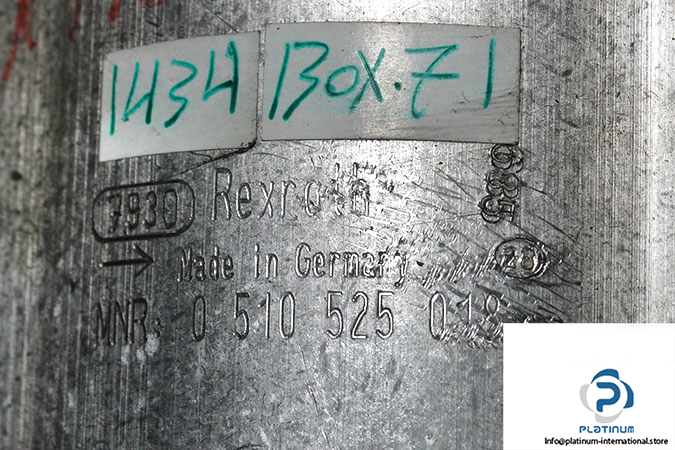

Model: 0510525018

Conveyor volumes: 14,0 cm³/U
Delivery rate at 1450 rpm: 19 l/min
Continuous pressure max.: 250 bar
Materials:
Housing: Aluminium, mounting flange: Aluminium or steel, seals: NBR
Rotation: clockwise
Temperature range, Medium: -15°C to +80°C
Media: Hydraulic oils on the basis of mineral oil
Operating range: Industry and mobile hydraulics
Mounting: 4-hole flange (72 x 100)
Centering diameter: 80
Drive shaft: Cone 1:5, M 12 x 1.5 (Ø 17 measured at rotary shaft outlet)
Suction connection: Flange (hole circle 40 with fastening thread M 6)
Pressure connection: Flange (hole circle 35 with fastening thread M 6)
