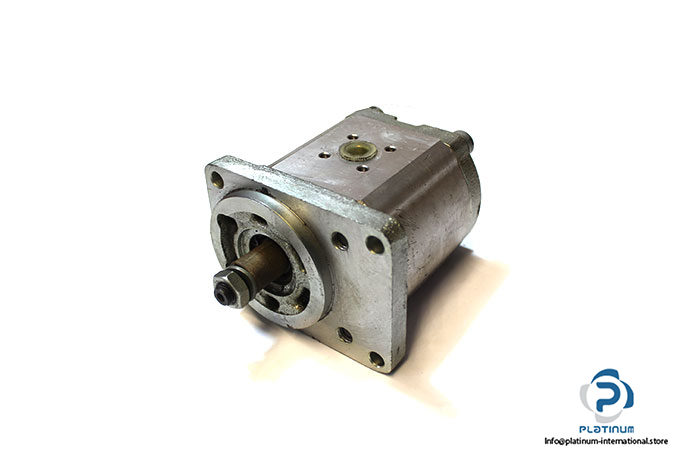

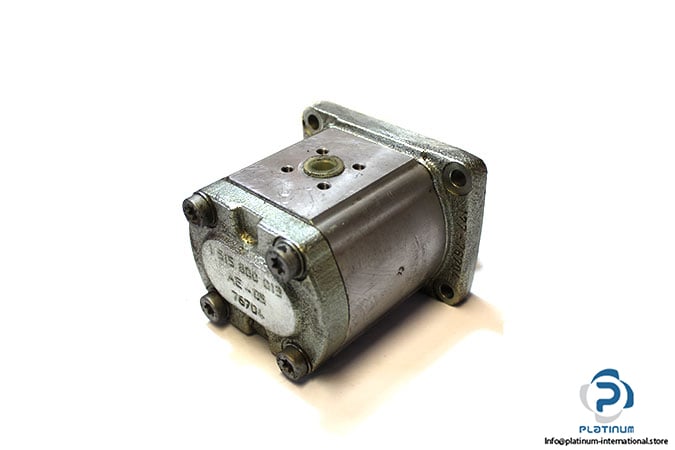

Rexroth 0 510 725 030 External Gear Pump
Manufacturer: Rexroth
Type: External Gear Pump

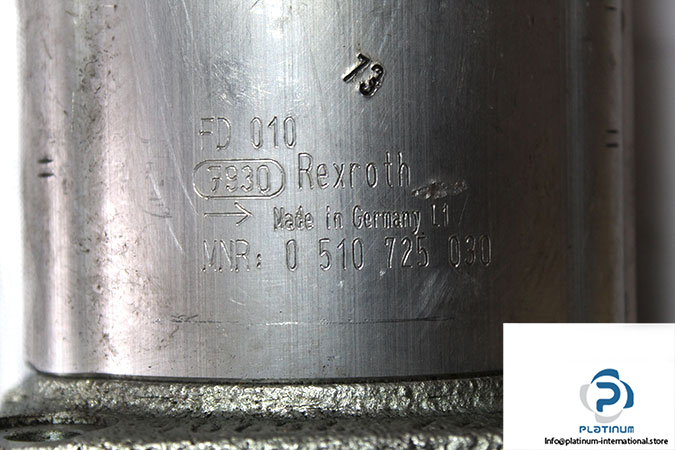

MNR: 0510725030
Size: 22.5
Displacement: 22.5 cm3 /rev
Ambient Temperature Range: –30 °C…+80 °C
Output flow at 1500 rpm: 33.75 l/min
Direction Rotation: Clockwise
Max. Continuous Pressure P1 : 180 bar
Max. Intermittent Pressure P2 : 210 bar
Max. Peak Pressure P3: 230 bar
Load On Shaft: Radial and Axial Forces After Consulting
Fluid Temperature Range: Max. +80 °C
Viscosity: 12…..800 mm2/s
Max. Speed: 2500 rpm
