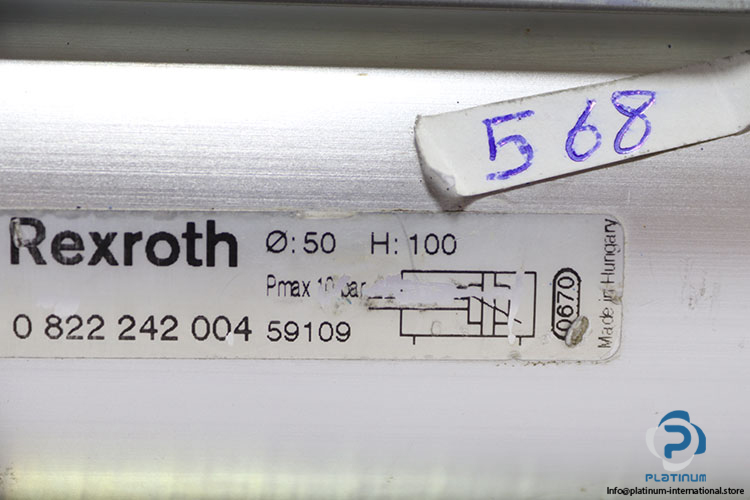

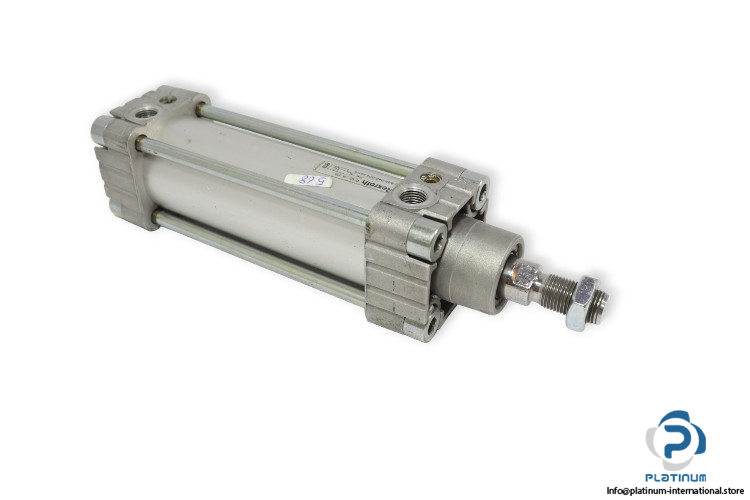

Rexroth 0 822 242 004 ISO Cylinder
Manufacturer: Rexroth
Type: ISO Cylinder
Model: 0822242004
Media: Compressed Air
Stroke (mm): 100
Bore diameter (mm): 50
BorexStroke (mm): 50×100
Rod diameter (mm): 20
Fram Dimensions (mm): 235×65
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
