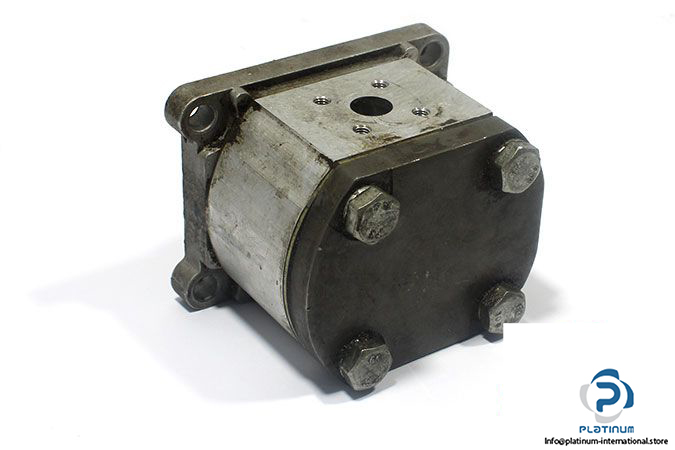

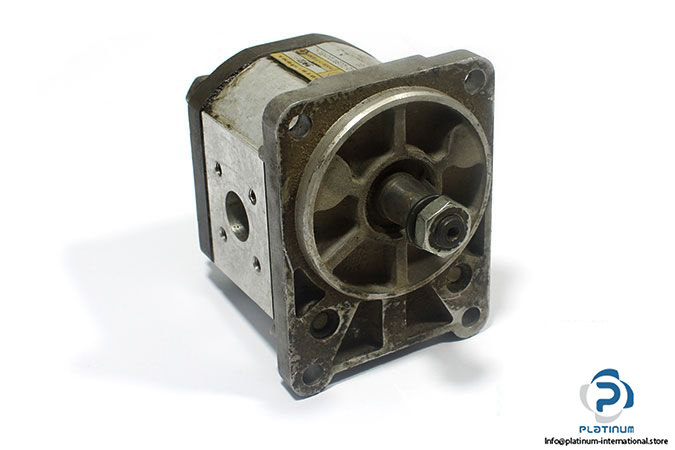

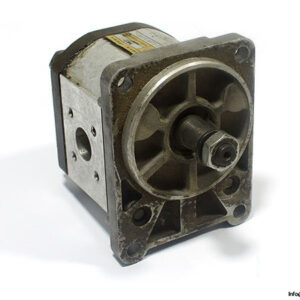

Rexroth 1PF2G240/008RC20MB External Gear Pump

Manufacturer: REXROTH

Type: External Gear Pump

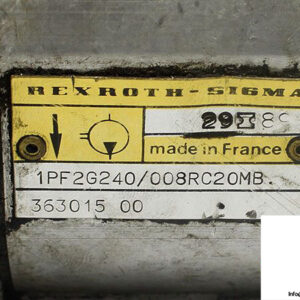

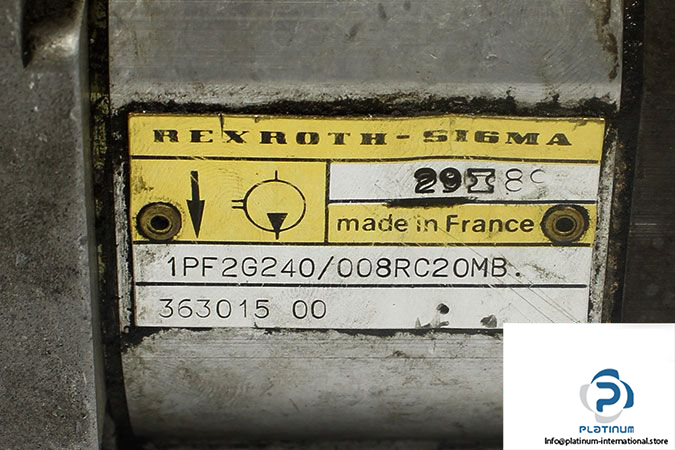

Model: 1PF2G240/008RC20MB

Order Code: 36301500

Size: 8

Ambient Temperature Range: -15……+60 ^oC

Max. Continuous Pressure p1: 250 bar

Max. Peak Pressure p2: 275 bar

Nominal Flow: 8.2 cm³

Rotation: Clockwise Rotation

Shaft Type: Tapered Shaft 1:5Ø17 mm

Suction and Pressure: Port Square

Flange: Rectangle Flange Ø80 mm

Seals: NBR

Speed Range: 1000 … 4000 rpm

Pressure Fluid Temperature Range: -15……+80 ^oC

Viscosity Range: 300…..1000 mm²/s

Weight: 2.65 Kg
