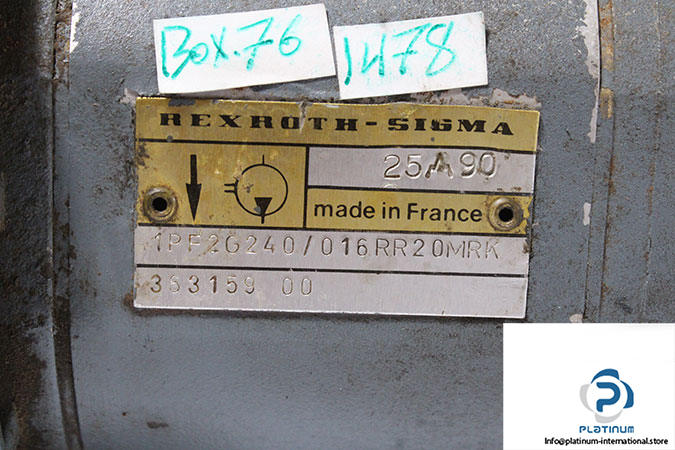

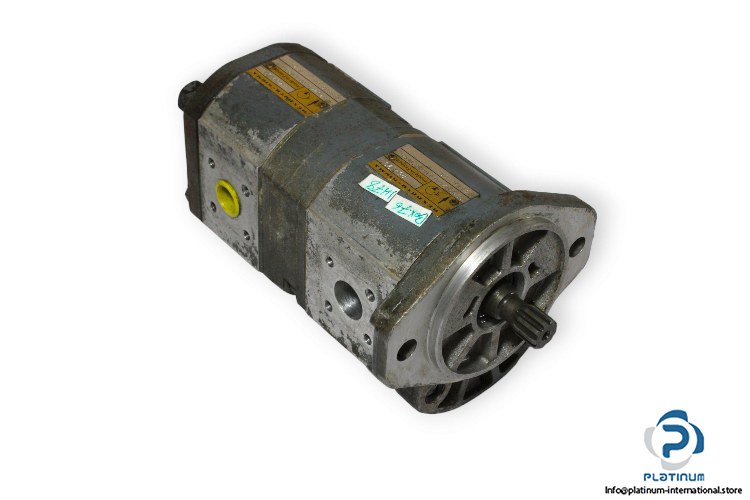

Rexroth 1PF2G240/016RR20MRK Gear Pump

Manufacturer: REXROTH SIGMA
Type: Gear Pump
Model: 1PF2G240/016RR20MRK
MNR: 353159 00
Part No.: 25 90

Size: 16
Rotation: Clockwise
Displacement: 16.2 cm³/rev
Max. Continuous Pressure: 250 bar
Peak Pressure: 300 bar
Max. Rotation Speed @ Pressure P1: 3000 rpm
Min. Speed @ 180 bar: 500 rpm
Shaft: Splined Shaft SAE-A 5/8”,9 teeth
Mounting: For Flanged Mounting

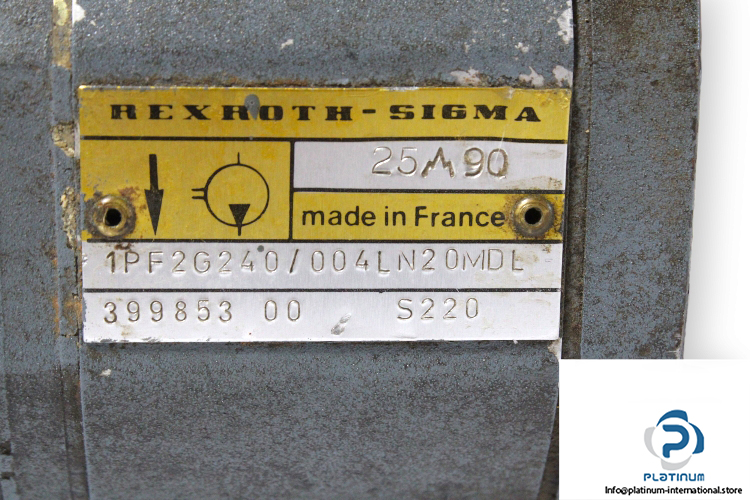

Attachment: REXROTH 1PF2G240/004LN20MDL GEAR PUMP
Manufacturer: REXROTH SIGMA
Type: Gear Pump
Model: 1PF2G240/004LN20MDL
MNR: 399853 00 S220
Part No.: 25 90

Size: 4
Rotation: Counter Clockwise
Displacement: 4 cm³/rev
Max. Continuous Pressure: 250 bar
Peak Pressure: 275 bar
Max. Rotation Speed @ Pressure P1: 4000 rpm
Min. Speed @ 180 bar: 1000 rpm
Shaft: tonged shaft with coupling
Mounting: For Flanged Mounting
