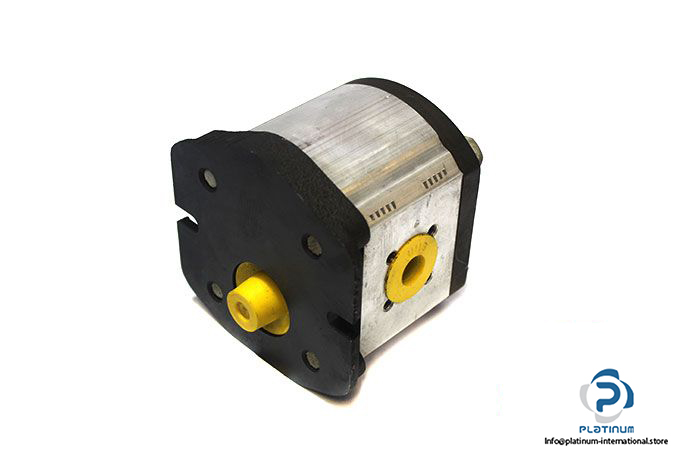

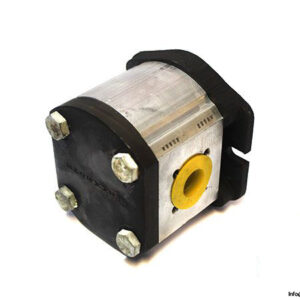

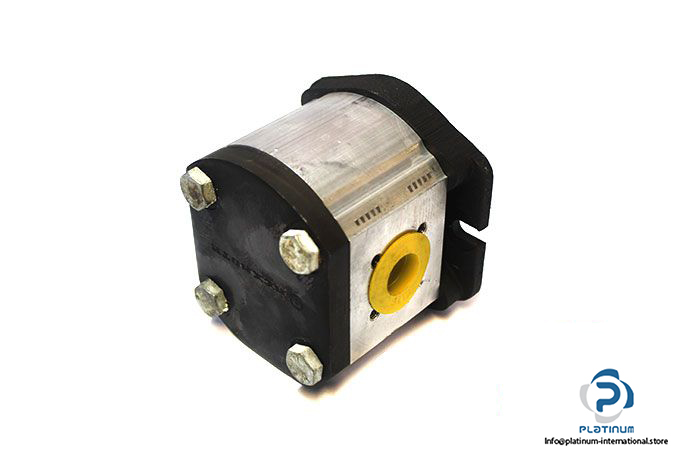

Rexroth 1PF2G241/011LN20MHL External Gear Pump

Manufacturer: REXROTH

Type: External Gear Pump

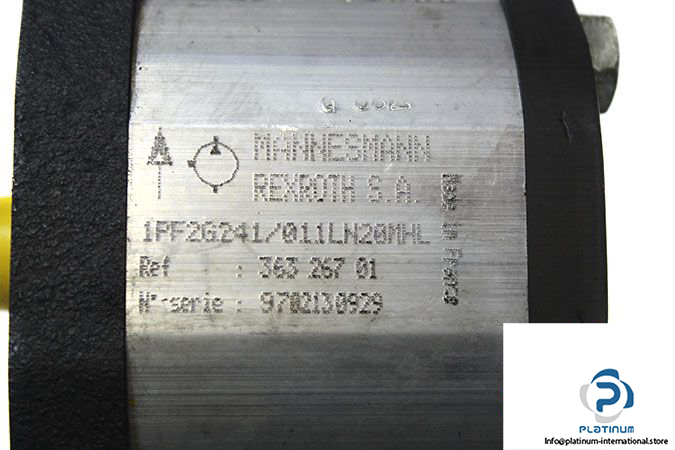

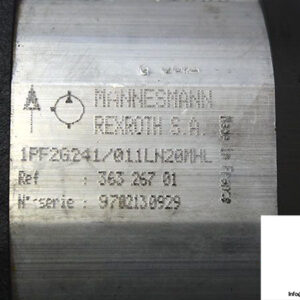

Model: 1PF2G241/011LN20MHL

Order Code: 363 267 01

Size: 11

Ambient Temperature Range: -15……+60 ^oC

Max. Continuous Pressure p1: 250 bar

Max. Peak Pressure p2: 275 bar

Nominal Flow: 11 cm³

Rotation: Anti-Clockwise Rotation

Shaft Type: Tongued Shaft with Coupling For Single Pump Centre/Rear Pump

Suction and Pressure: Port Square Flange, Metric Mounting Threads

Flange: Combination Flange for G3, G4

Seals: NBR

Speed Range: 4000 rpm

Pressure Fluid Temperature Range: -15……+80 ^oC

Viscosity Range: 10……300mm²/s

Weight: 3.11 Kg
