Rexroth 1PV2 V4-21/32 RA01MC0-16A1 Variable Vane Single Pump

REXROTH HYDRONORMA VARIABLE VANE SINGLE PUMP WITH SAFETY VALVE

The Rexroth Hydronorma 1PV2V42132RA01MC016A1 is a high-performance variable vane single pump engineered for precision hydraulic applications. Featuring a robust NG32 design, it delivers consistent flow and optimal efficiency under varying operating pressures. This unit comes complete with the Rexroth 325 637/7 C 20 safety valve for reliable system protection.

Manufacturer: Rexroth Hydronorma
Type: Variable Vane Single Pump

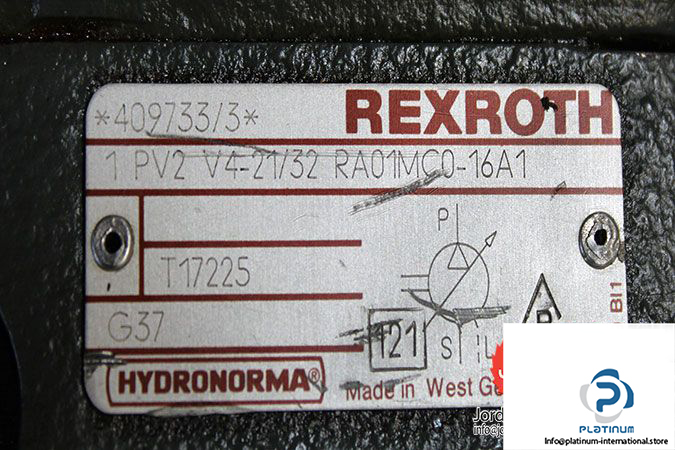

Model: 1PV2 V4-21/32 RA01MC0-16A1
Part No.: 325637/7

Technical Information “ Pump

• Fluid: Oil
• Size: NG32
• Displacement: 34.5 cm³
• Direction of Rotation: Clockwise
• Shaft Diameter: 32 mm
• Operating Pressure: 160 bar
• Speed: 900 “ 1800 rpm
• Flow Rate at 1450 rpm: 46.4 l/min
• Power at 1450 rpm: 14.5 kW
• Torque at 100 bar: 294 Nm
• Viscosity Range: 16 “ 160 mm²/s

Technical Information “ Safety Valve

• Manufacturer: Rexroth
• Type: Safety Valve

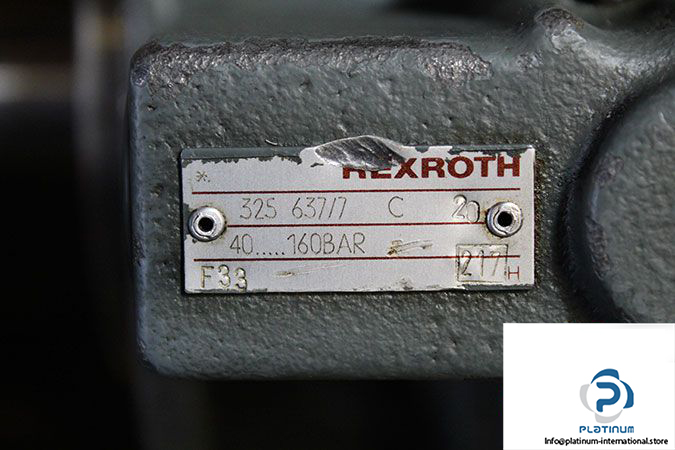

• Model: 325 637/7 C 20
• Pressure Range: 40 “ 160 bar
