Rexroth 1PV2V3-30/40 RE01MC 63 A1 Variable Double Vane Pump
Used
In stock2 unitsReady to ship
900,00$
VARIABLE DOUBLE VANE PUMP
High-performance Rexroth Hydronorma variable double vane pump with attached auxiliary pump, engineered for reliable hydraulic oil applications with stable flow and efficiency.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

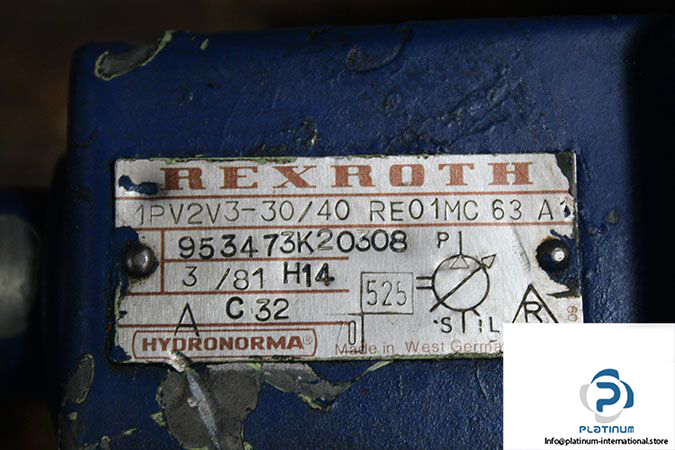

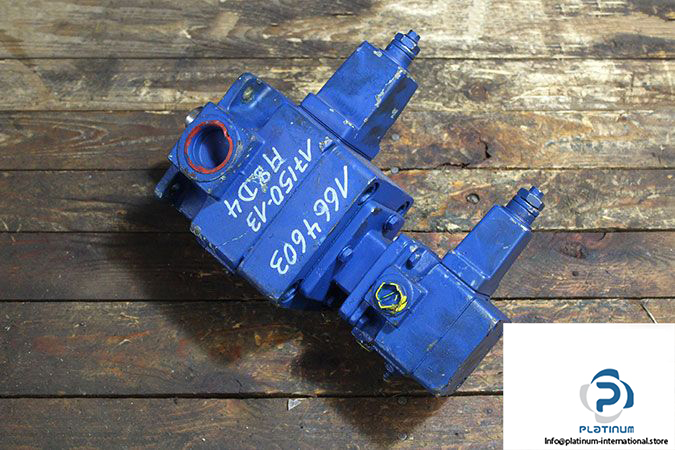

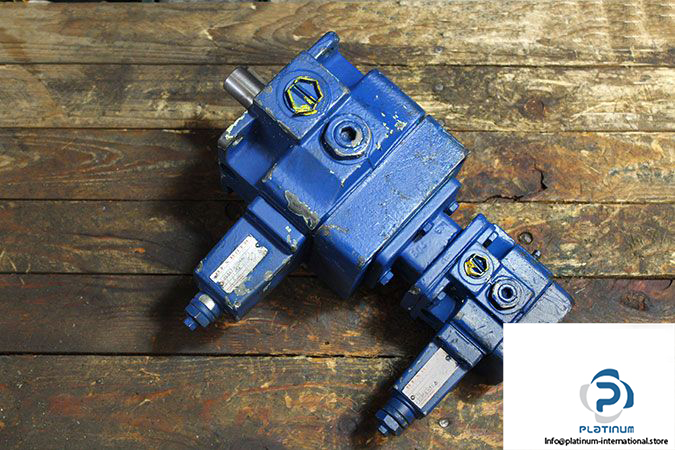

REXROTH HYDRONORMA 1PV2V33040RE01MC63A1 VARIABLE DOUBLE VANE PUMP
The Rexroth Hydronorma 1PV2V3-30/40RE01MC63A1 is a high-performance variable double vane pump designed for reliable operation in demanding hydraulic systems. It offers stable flow rates, smooth performance, and optimal efficiency for industrial oil applications.
Manufacturer: REXROTH HYDRONORMA
Type: Variable Double Vane Pump
Model: 1PV2V3-30/40RE01MC63A1
Part No.: 953473K20308
Main Pump Technical Information
- Fluid: Oil
- Size: NG40
- Displacement: 32 cm³
- Direction of Rotation: Clockwise

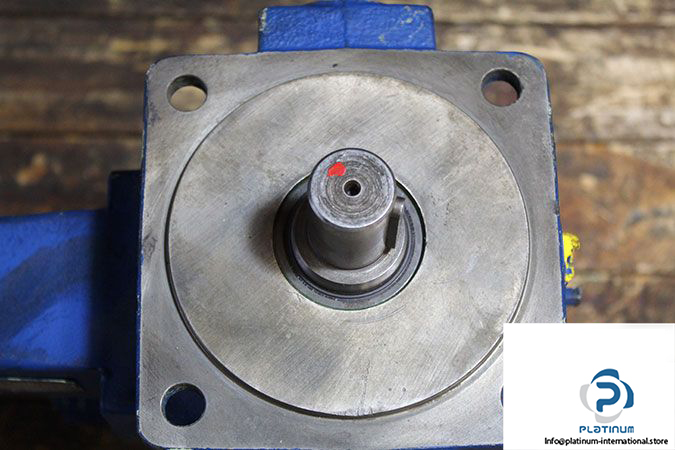

- Shaft Diameter: 28 mm
- Operating Pressure: 63 bar
- Drive Speed: 950 “ 1800 rpm
- Flow Rate at 1450 rpm: 47 l/min
- Torque at 100 bar: 235 Nm
- Viscosity Range: 16 “ 160 mm²/s

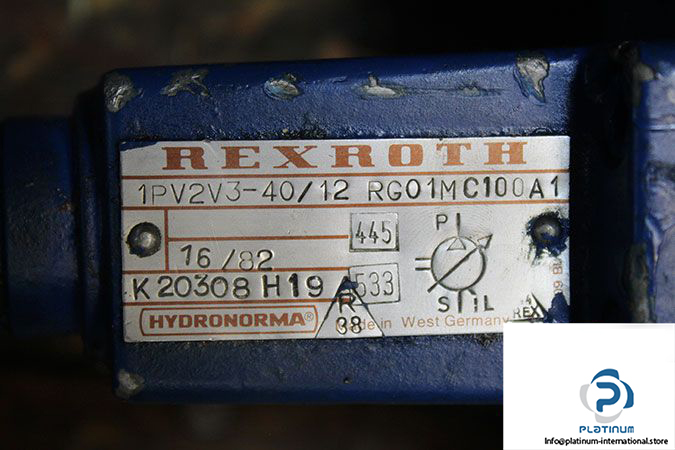

Attached Pump Technical Information
- Manufacturer: Rexroth
- Type: Variable Vane Pump
- Model: 1PV2V3-40/12RG01MC100A1
- Fluid: Oil
- Size: NG12
- Displacement: 8.5 cm³
- Direction of Rotation: Clockwise
- Operating Pressure: 100 bar
- Drive Speed: 950 “ 1800 rpm
- Flow Rate at 1450 rpm: 13 l/min
- Torque at 100 bar: 54 Nm
- Viscosity Range: 16 “ 160 mm²/s
