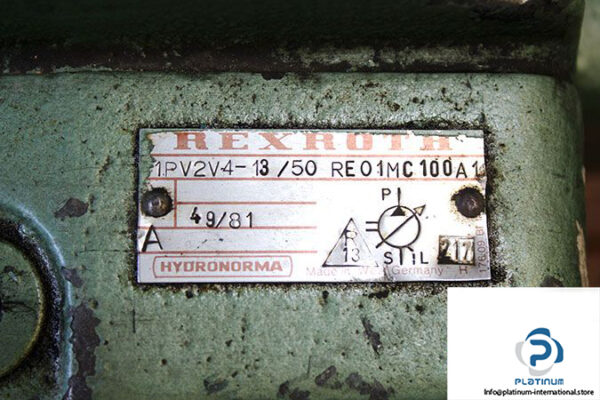

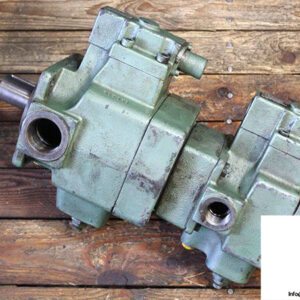

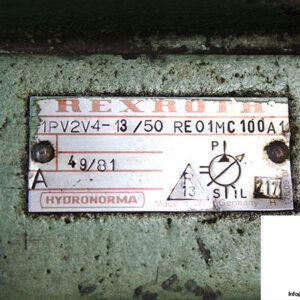

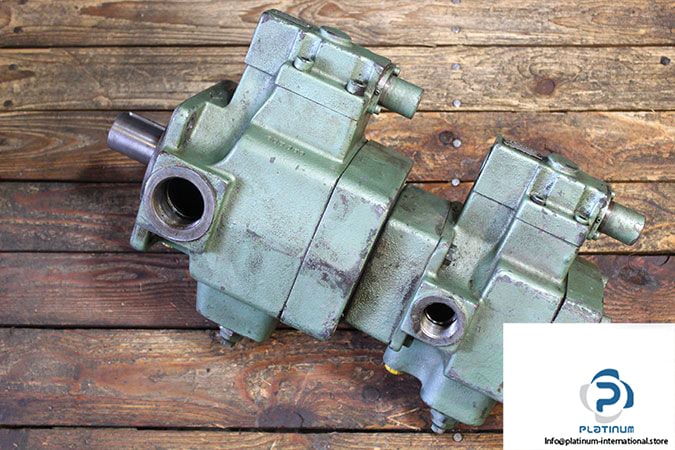

Rexroth 1PV2V4-13/50RE01MC100A1 Variable Vane Pump
Manufacturer: Rexroth
Type: Variable vane pump
Model: 1PV2V4-13/50RE01MC100A1
size: 50
Displacement: 55.2 cm3
Direction of Rotation: Clockwise

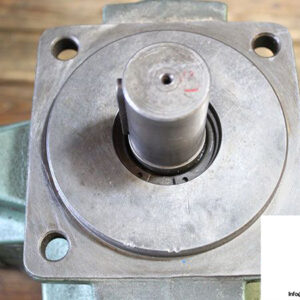

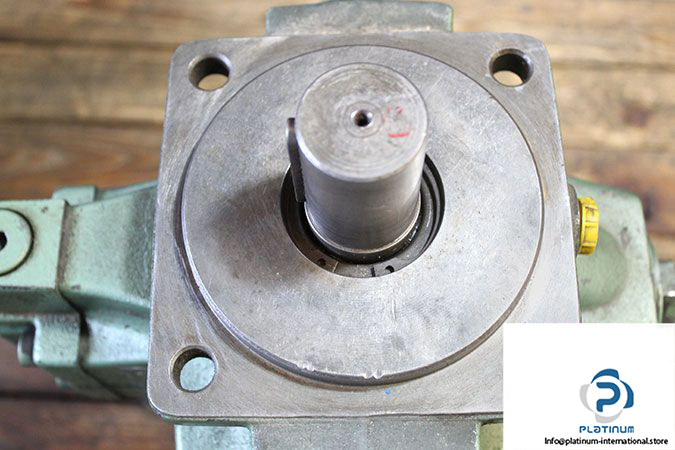

Shaft Diameter: 38 mm
Operating pressure: 100 bar
Speed Range : 950 …. 1800 min–1
Flow Rate at 1450 rpm: 72.5 l/min
Input Power at 1450 rpm: 23 Kw
Max. Torque: 510 N.m
Viscosity Range: 16…160 mm2/s

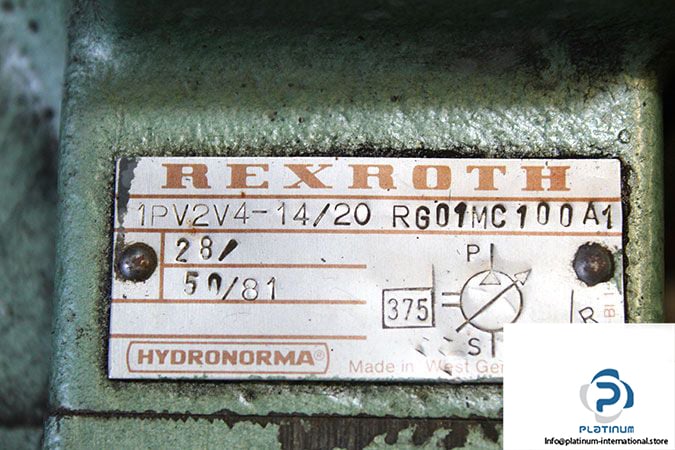

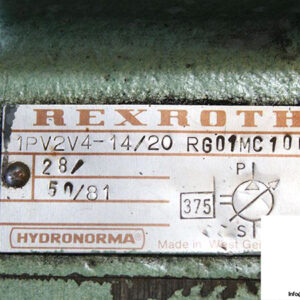

Attachment: REXROTH 1PV2V4-14/20RG01MC100A1 VARIABLE VANE PUMP
Manufacturer: Rexroth
Type: Variable Vane Pump
Model: 1PV2V4-14/20RG01MC100A1
size: 20
Displacement: 20.7 cm3
Flow Rate at 1450 rpm: 29 l/min
Max. Torque: 228 N.m
Input Power at 1450 rpm: 8.5 Kw
Weight: 70 Kg
