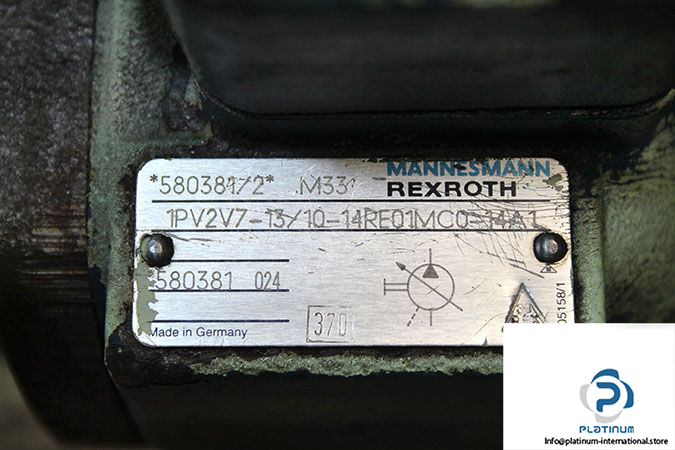

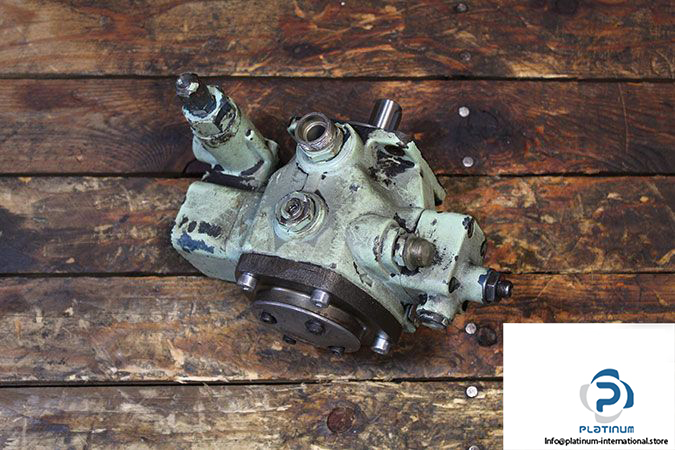

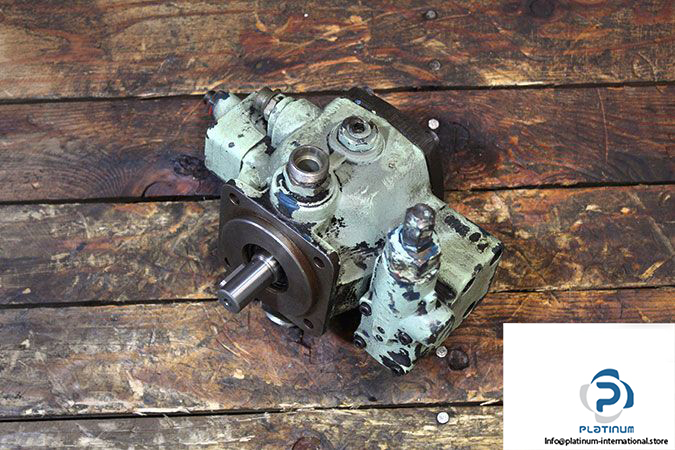

Rexroth 1PV2V7-13/10-14RE01MC0-14A1 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

Model: 1PV2V7-13/10-14RE01MC0-14A1

Frame sizes: 10

size: 14

Displacement: 14 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 20 mm

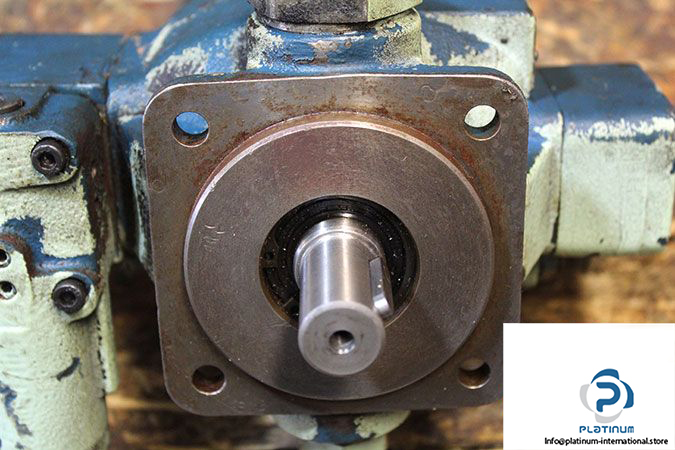

Mounting Flange: ISO 3019-2 (2 holes)

Operating pressure: 160 bar

Drive Speed: 900 …. 1800 rpm

Flow Rate at 1450 rpm: 21 l/m

Power at 100 bar, 1450 rpm: 6.3 KW

Torque at 100 bar: 90 N.m

Viscosity Range: 16 ….  36 mm²/s

Weight: 12.3 Kg
