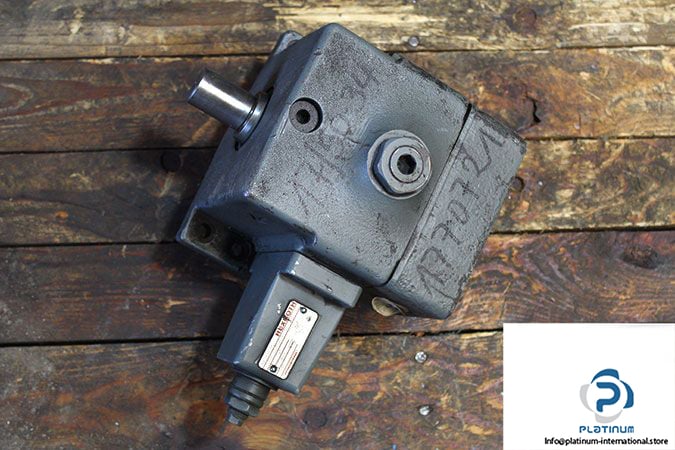

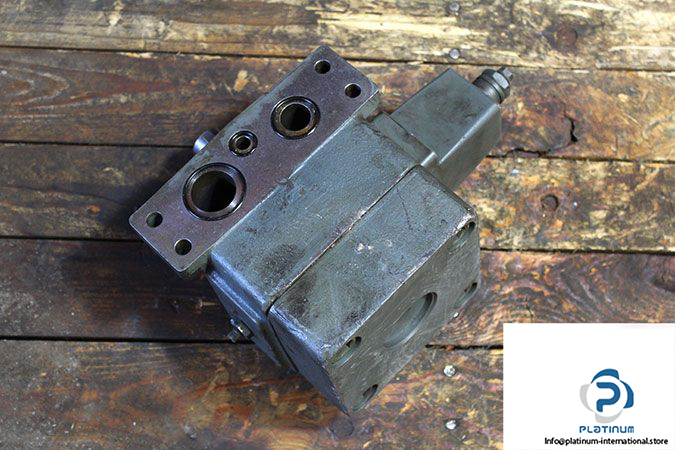

Rexroth 1PV6 V3-31/40 RA08MC100A1 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

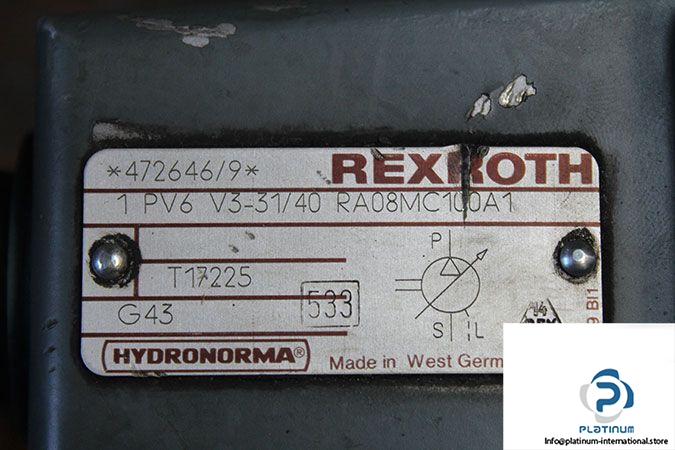

Model: 1PV6V3-31/40RA08MC100A1

size: 40

Displacement: 32 cm³

Direction of Rotation: Clockwise

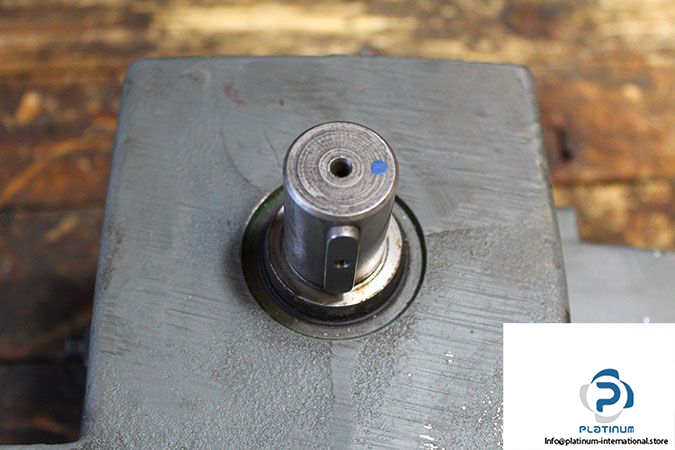

Shaft Diameter: 28 mm

Operating pressure: 100 bar

Speed: 950 …. 1800 rpm

Flow Rate at 1450 rpm: 47 l/m

Torque at 100 bar: 235 N.m

Viscosity Range: 16 ….  36 mm²/s

Weight: 26.2 Kg
