Hydraulic System Hydraulic Valves Directional Control Valves

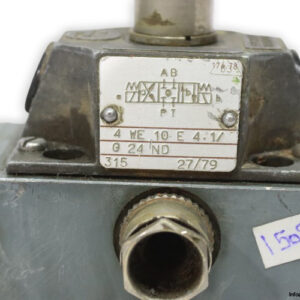

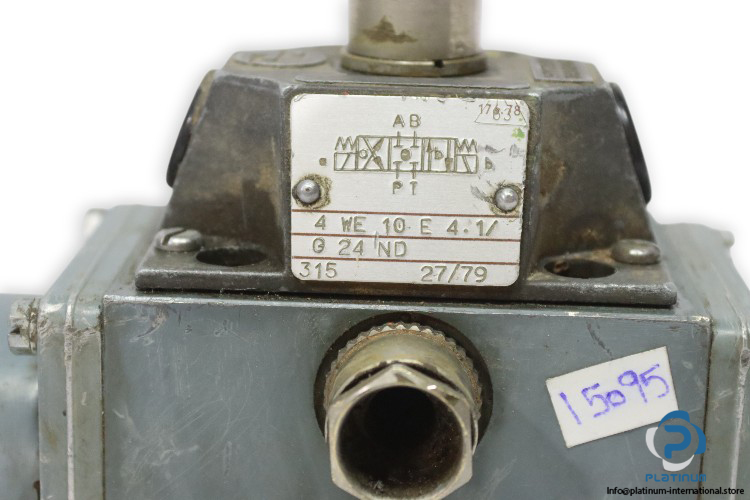

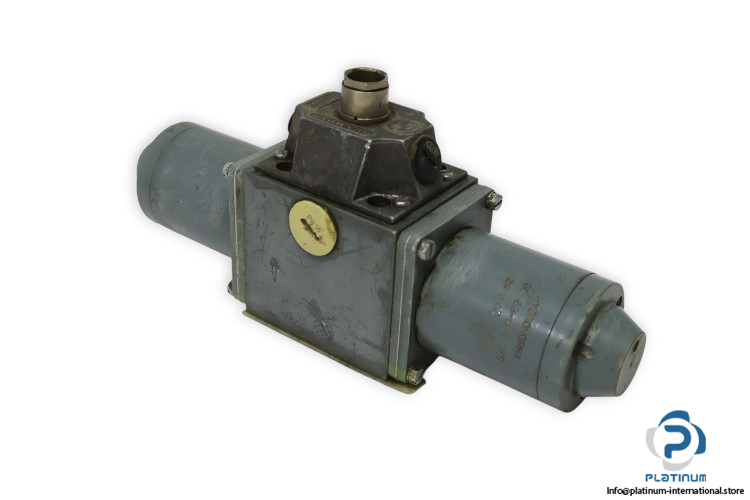

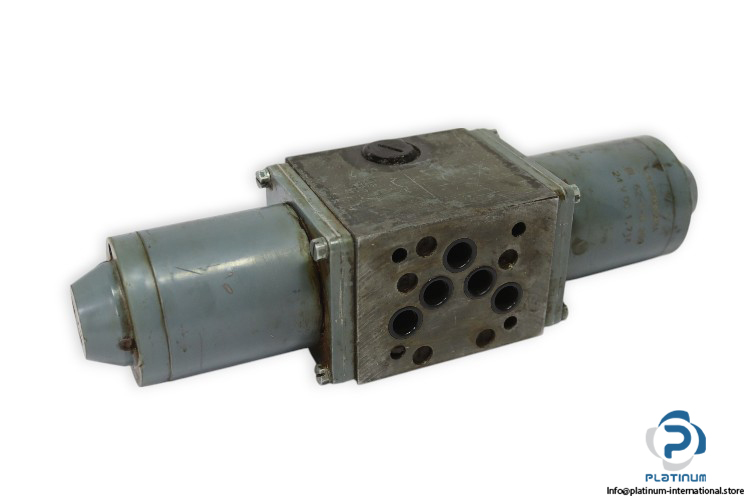

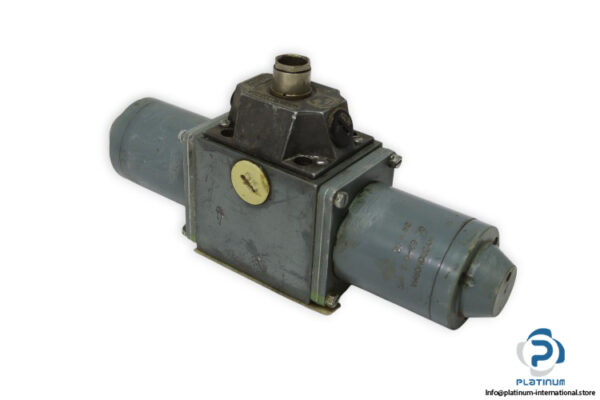

Rexroth 4 WE 10 E 4.1/G24 ND Directional Control Valve

Name: REXROTH 4 WE 10 E 4.1/G24 ND DIRECTIONAL CONTROL VALVE
SKU: 1085890
Availability: LimitedAvailability

rexroth-4-WE-10-E-4.1_G24-ND-directional-control-valve-used

rexroth-4-WE-10-E-4.1_G24-ND-directional-control-valve-used-1

rexroth-4-WE-10-E-4.1_G24-ND-directional-control-valve-used-2

rexroth-4-WE-10-E-4.1_G24-ND-directional-control-valve-used-3

Used

In stock1 unitReady to ship

DIRECTIONAL CONTROL VALVE

Rexroth 4WE10E4.1/G24ND directional control valve with 4 ports, size 10, 315 bar pressure rating, and electric actuation. Includes Hydronorma 24V DC coil.

Manufacturer

REXROTH

SKU

1085890

Category

Directional Control Valves

Condition

Used

10 24v 259 315 4 4WE10E4.1/G24ND Actuated bar coil Control dc Directional Electrically GL-62-0-A High Hydra Hydraulic hydronorma Industrial Port Pressure Rexroth Size Valve

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

REXROTH 4WE10E4.1/G24ND DIRECTIONAL CONTROL VALVE

The Rexroth 4WE10E4.1/G24ND is a high-performance electrically actuated directional control valve, ideal for hydraulic systems requiring precise control under high pressure and variable flow conditions.

Manufacturer: Rexroth

Type: Directional Control Valve

Model: 4 WE 10 E 4.1/G24 ND

Code: 27/79

No. of Ports	4
Size	10
Type of Actuation	Electrically
Ambient Temperature Range	-30 to +50 °C
Max Operating Pressure (Ports A, B, P)	315 bar
Max Operating Pressure (Port T)	210 bar
Max Flow Rate	120 l/min
Hydraulic Fluid Temperature Range	-30 to +80 °C
Viscosity Range	2.8 to 500 mm²/s

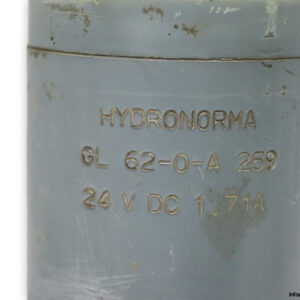

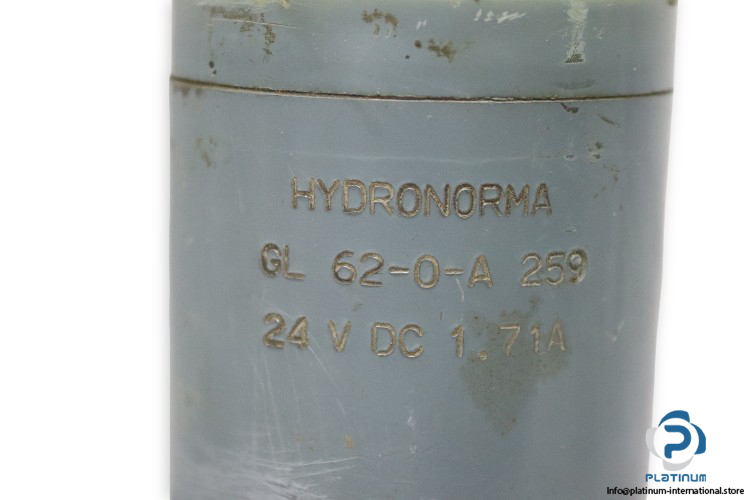

Attachment	HYDRONORMA GL-62-0-A 259 COIL
Voltage	24 V DC
Current	1.71 A
