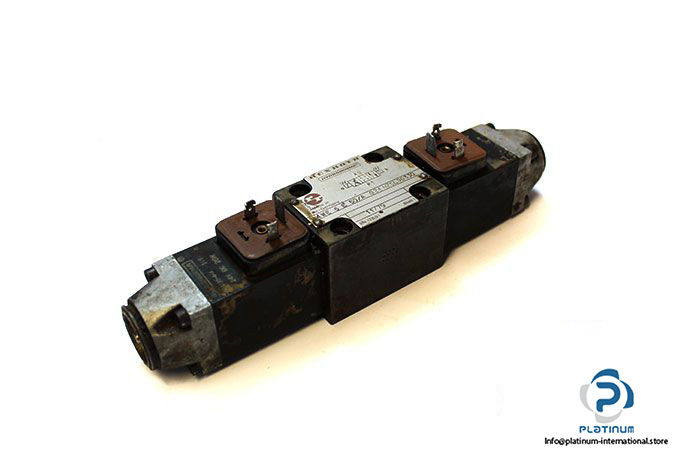

Rexroth 4 WE 6 E 50/A G24NZ5LS0330 Directional Control Valve

REXROTH HYDRONORMA 4WE6E50AG24NZ5LS0330 DIRECTIONAL CONTROL VALVE WITH HYDRONORMA GU35-4-A 109 SOLENOID COIL

The Rexroth Hydronorma 4 WE 6 E 50/A G24NZ5LS0330 is a high-performance electrically actuated directional control valve designed for precise hydraulic flow control. This NG6 size valve is engineered for industrial applications requiring reliable operation under high pressures and demanding conditions.

Manufacturer: Rexroth Hydronorma
Type: Directional Control Valve

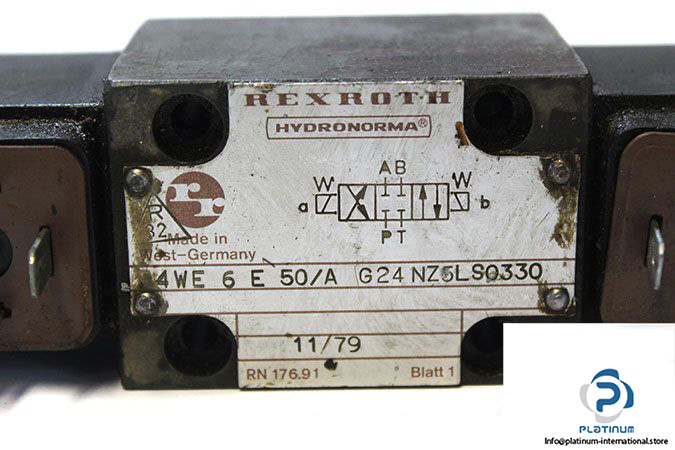

Model: 4 WE 6 E 50/A G24NZ5LS0330

Technical Information “ Valve

• Fluid: Oil
• Size: NG6
• Type of Actuation: Electrically
• Max. Operating Pressure at Ports A, B, P: 350 bar
• Max. Operating Pressure at Port T: 210 bar
• Max. Flow Rate: 80 l/min
• Ambient Temperature Range: -30 / 50 °C
• Viscosity Range: 2.8 / 500 mm²/s

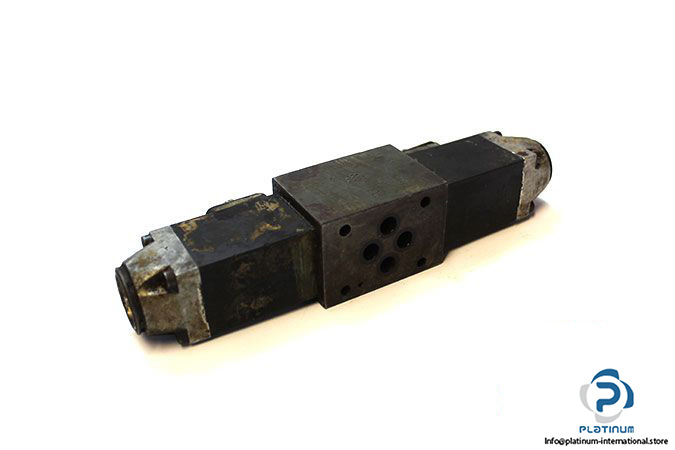

• Connection: Sub-plate

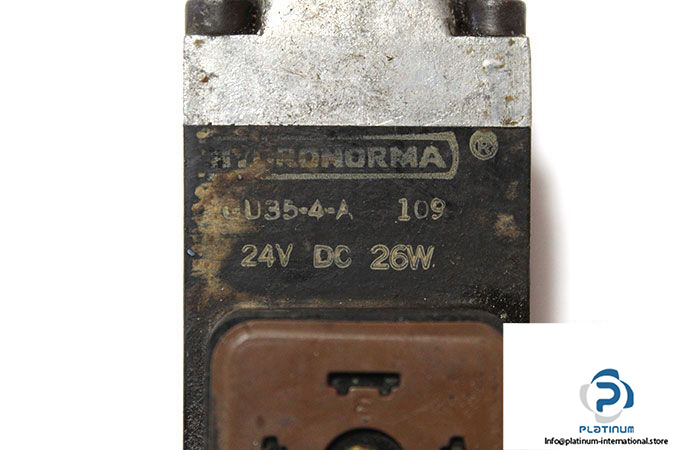

Included Component “ Solenoid Coil

Manufacturer: Hydronorma
Type: Solenoid Coil
Model: GU35-4-A 109

• Voltage: 24 V DC
• Power: 26 W
