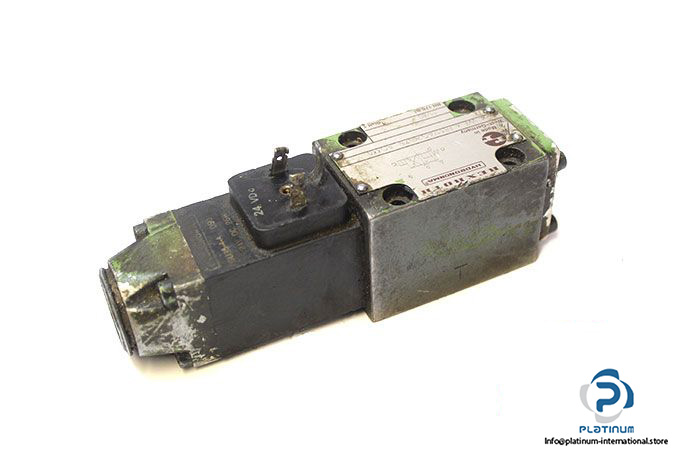

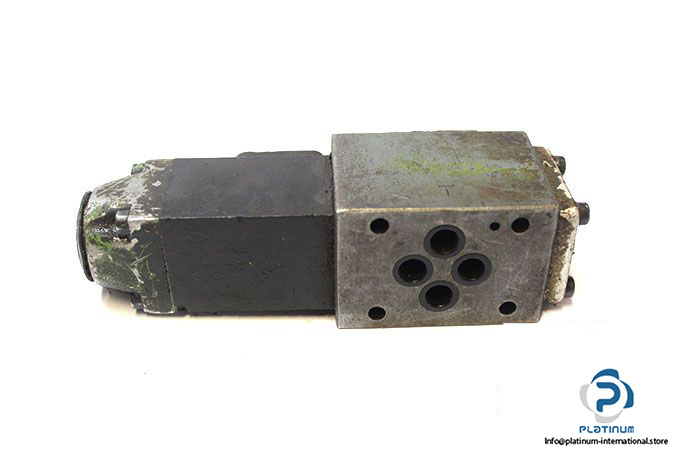

Rexroth 4 WE 6 FB51/AG24NZ5L SO330 Directional Control Valve
DIRECTIONAL CONTROL VALVE
High-performance Rexroth Hydronorma electrically actuated NG6 directional control valve with 350 bar maximum pressure and 80 l/min flow rate, complete with 24 V DC solenoid coil.REXROTH HYDRONORMA 4WE6FB51AG24NZ5L SO330 DIRECTIONAL CONTROL VALVE
The Rexroth Hydronorma 4 WE 6 FB51/AG24NZ5L SO330 is a high-performance electrically actuated directional control valve designed for precise hydraulic flow management in demanding industrial environments. Built to handle high pressures and flow rates, it ensures reliable operation in various hydraulic applications.
Manufacturer: REXROTH HYDRONORMA
Type: Directional Control Valve

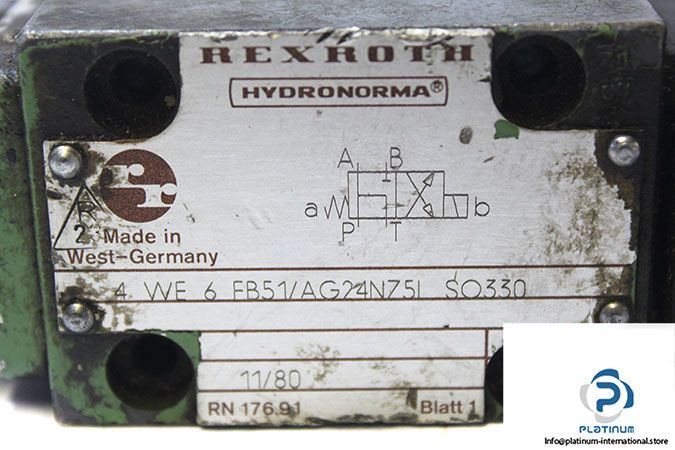

Model: 4 WE 6 FB51/AG24NZ5L SO330
Attachment
| Fluid | Oil |
| Size | NG6 |
| Type of Actuation | Electrically |
| Maximum Operating Pressure (Ports A, B, P) | 350 bar |
| Maximum Operating Pressure (Port T) | 210 bar |
| Maximum Flow Rate | 80 l/min |
| Ambient Temperature Range | -30 / 50 °C |
| Viscosity Range | 2.8 / 500 mm²/s |
| Connection | Sub-plate |

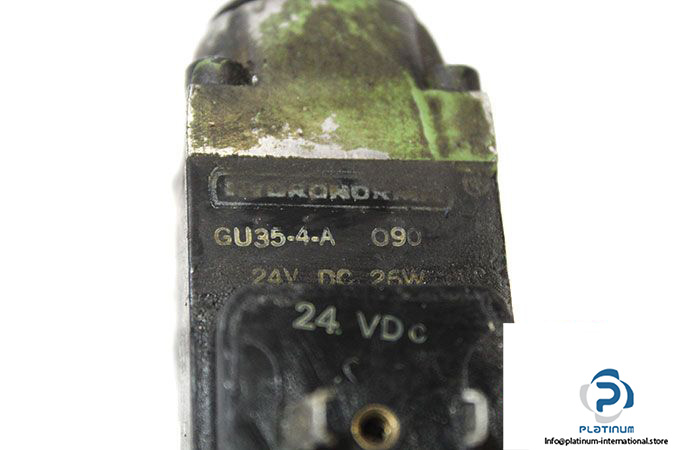

| Voltage | 24 V DC |
| Power | 26 W |
