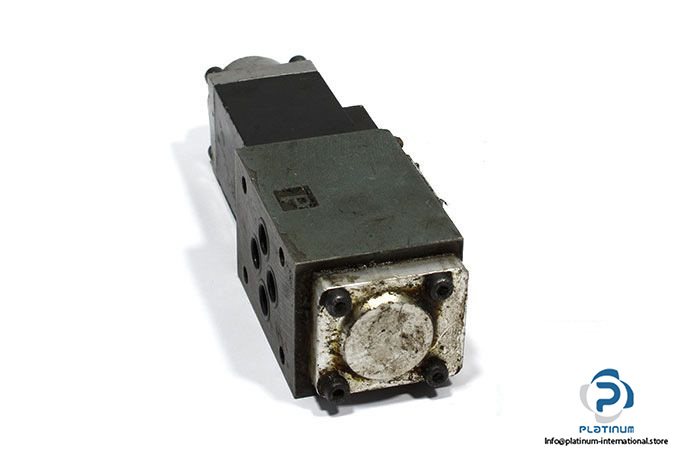

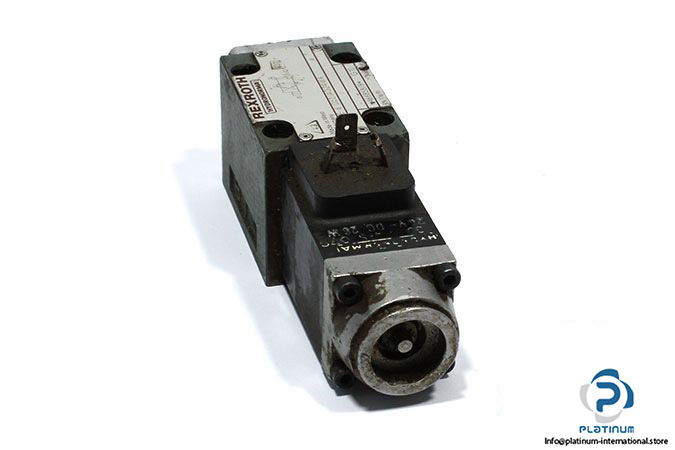

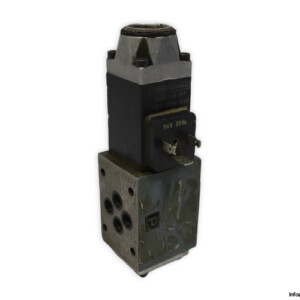

Rexroth 4WE 6 D52/AG24NK4 Directional Control Valve

Manufacturer: REXROTH
Type: Directional Control Valve

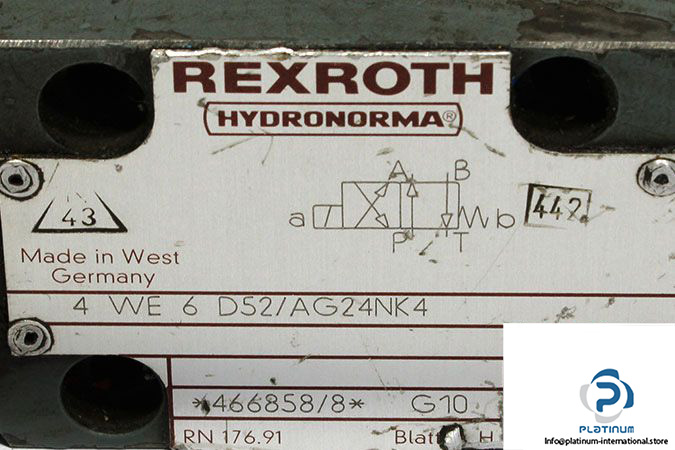

Model: 4WE6D52/AG24NK4

Size: 6
Type of Actuation: Electrically
Ambient Temperature Range: –30 …. +50 ^oC
Maximum Operating Pressure at Ports A, B, P :350 bar
Maximum Operating Pressure at Port T :210 bar
Maximum Flow Rate: 80 l/min (DC) , 60 l/min (AC)
Hydraulic Fluid Temperature Range: –30 …. +80 ^oC
Viscosity Range: 2.8 … 500 mm²/s
Connection: Sup-plate

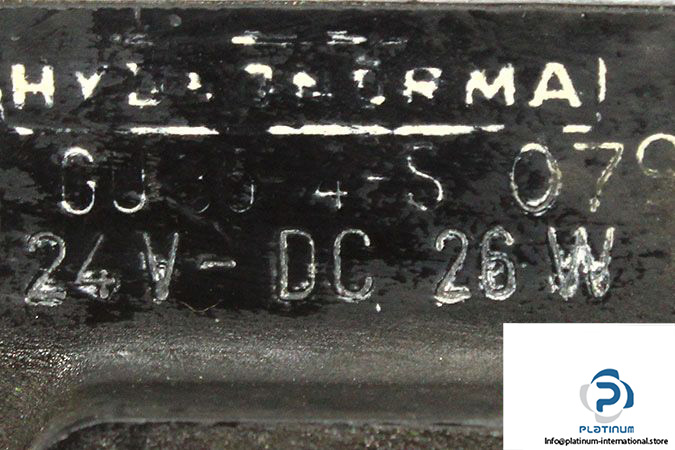

Attachment:  HYDRONORMA GU35-4-S 079 SOLENOID COIL
Manufacturer: HYDRONORMA
Type: Solenoid Coil
Model:  GU35-4-S 079

Voltage: 24 V DC
Power :26 W
