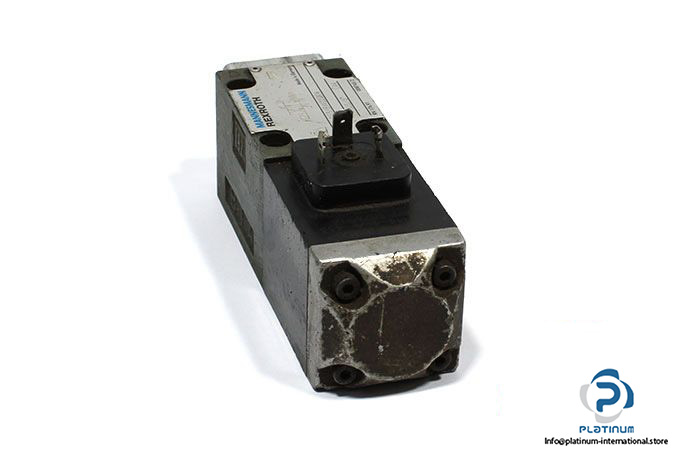

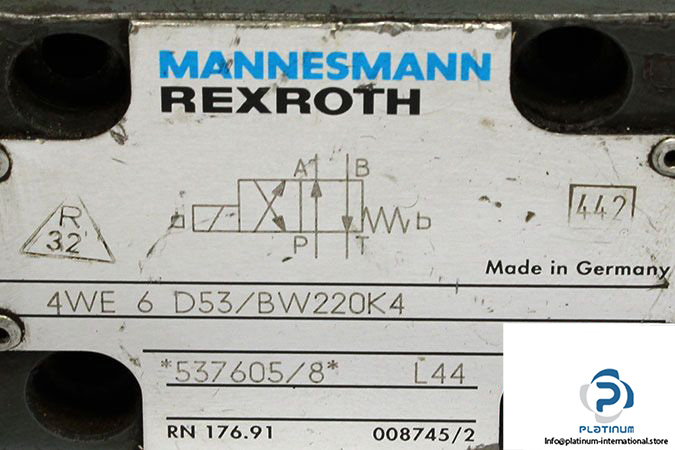

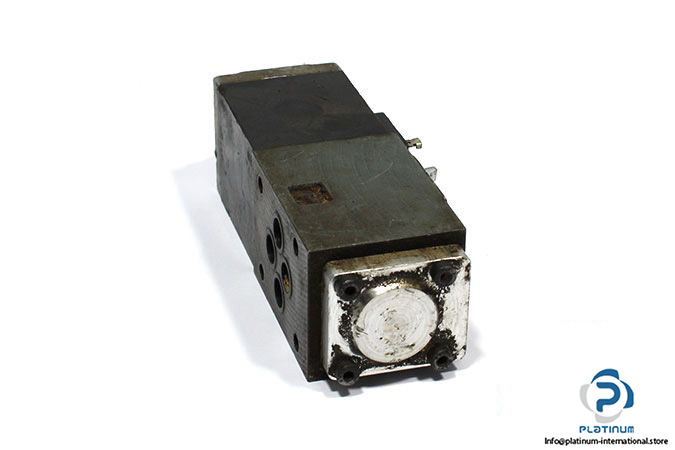

Rexroth 4WE 6 D53/BW220K4 Directional Control Valve

Manufacturer: REXROTH

Type: Directional Control Valve

Model: 4WE 6 D53/BW220K4

Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports A, B, P :350 bar

Maximum Operating Pressure at Port T :210 bar

Maximum Flow Rate: 80 l/min (DC) , 60 l/min (AC)

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-plate

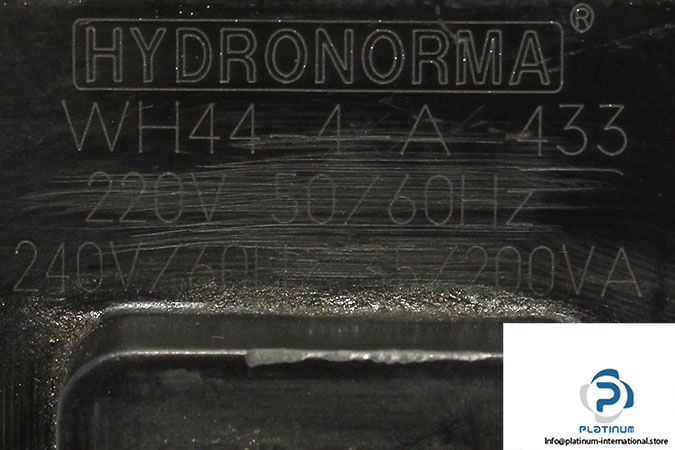

Attachment: HYDRONORMA WH44-4-A 433 SOLENOID COIL

Manufacturer: HYDRONORMA

Type: Solenoid Coil

Model:  WH44-4-A 433

Voltage: 220…240 V

Frequency: 50…60 Hz

Weight: 1.31 kg
